| Brand Name: | Sinuo |
| Model Number: | SNQC1001-2B |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |
EVSE Electric Vehicle Charging Point IPX56 Rain Testing Equipment
Complied Standards & Clauses
IEC 61851-1 2017 Electric vehicle conductive charging system - Part 1: General requirements.
IEC 60529:2013 “Degrees of protection provided by enclosure (IP code)” IPX5 & IPX6.
Equipment Overview
The test system is used for test the sample storage, transport, and working performance during raining environment conditions. It is suitable for electrical and electronic products, lamps, electrical components, automobiles, motorcycles and other products to test products and physical and other related properties under simulating rain climatic conditions.

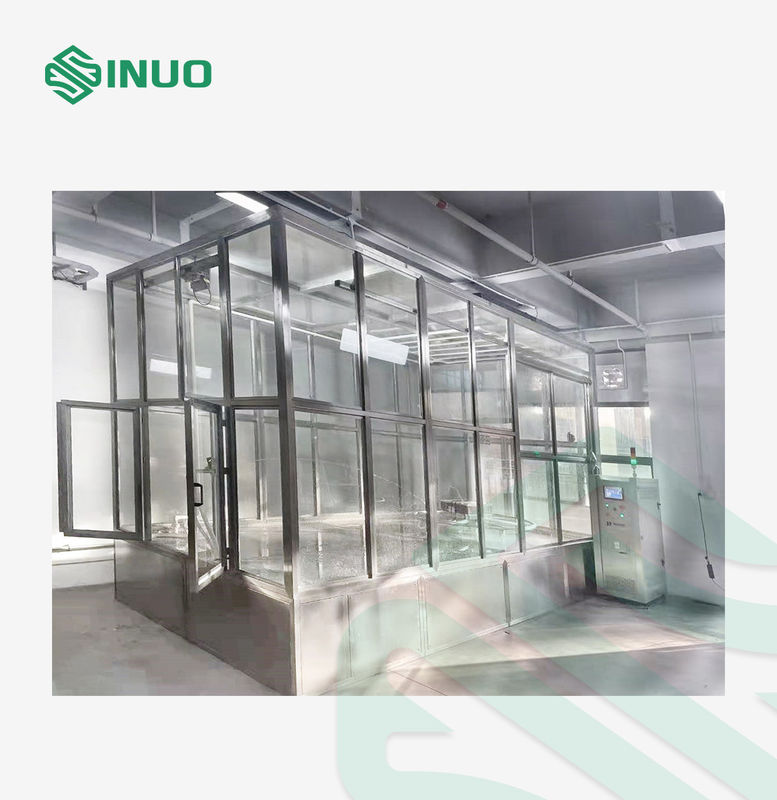

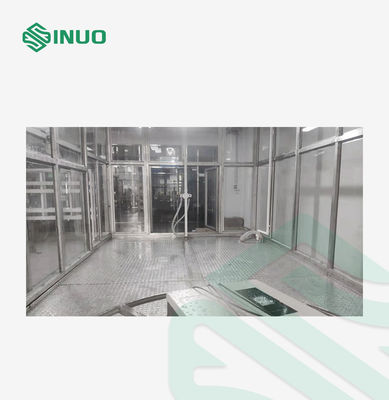

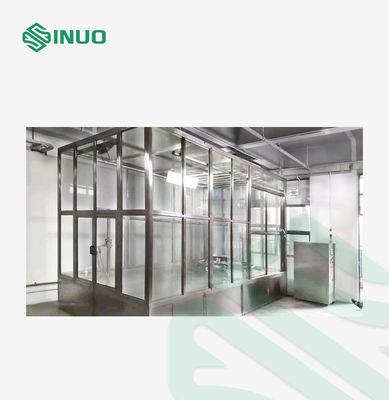

The test sytem consists of a test bench, a water storage tank, a control box, a turntable, a water circulation system and a spray system.

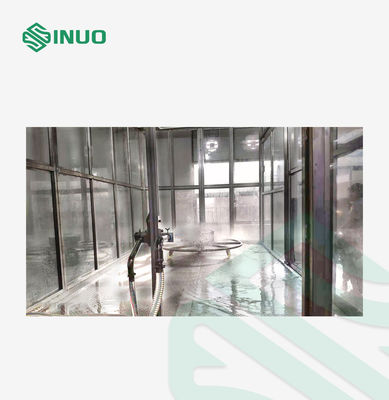

There is a water tank at the bottom that pumps water through the stainless-steel water pump inside the right control box and pressurizes it before sending it to the nozzle of the hose. The outlet of the pump is designed with control components such as flowmeter, pressure gauge and solenoid valve; it equipped with a stroke water circulation system indoor, the turntable is independently installed 2500mm away from the water spray equipment.
Technical Parameters
| System size | 4.5*2.5*2.4m (W*D*H) |
| Turntable diameter | 1200 mm |
| Turntable load | 500 kg |
| Number of water jet nozzle heads | 2cps; One of IPX5 and another of IPX6 |
| Test direction | The side of the sample. |
| Nozzle distance from sample | 2500~3000mm, controlled by operator. |
| Nozzle inner diameter | IPX5 (grade) φ6.3 mm; IPX6 (grade) φ12.5 mm |
| Water jet flow | IPX5 (grade) 12.5±0.625 (L/min); IPX6 (grade) 100±5 (L/min) |
| Pipe diameter | One half-inch and one-inch high-pressure hoses |
| Water pressure | 30～200kpa (adjusted by flow) |
| Turntable speed | 1-7R/min |
| Water jet time | 3,10,30,9999min (adjustable) |
| Runtime control | 1～9999min (adjustable) |
| Water spray pressure gauge | Can display water pressure |
| Control system | Siemens PLC |
| Water jet system | It consists of water pump, water pressure gauge and fixed nozzle bracket |
| Nozzle material | Stainless steel pipe |
| Water tank material | Stainless-steel |
| Electric box material | 304 stainless steel |
