EVSE EV Charging Pole Electric Vehicle Charging Test Equipment IPXXD Test Wire

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2210-4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 3 days
Payment Terms: T/T
Supply Ability: 100 pcs/month
Contact Now

Detail Information

Applied Standard: IEC 61851-1, Etc. Test Content: IPXXD
Test Wire Diameter: Ф1+0.05 0 (mm) Wire Length: 100±0.2 (mm)
Wire Material: Steel Stop Face Diameter: SФ35±0.2 (mm)
Handle Diameter: Ф10 (mm) Handle Length: 100 (mm)
High Light:

IPXXD Test ev charging pole

,

IPXXD Test Wire ev charging pole

,

IPXXD electric vehicle charging test equipment

Product Description

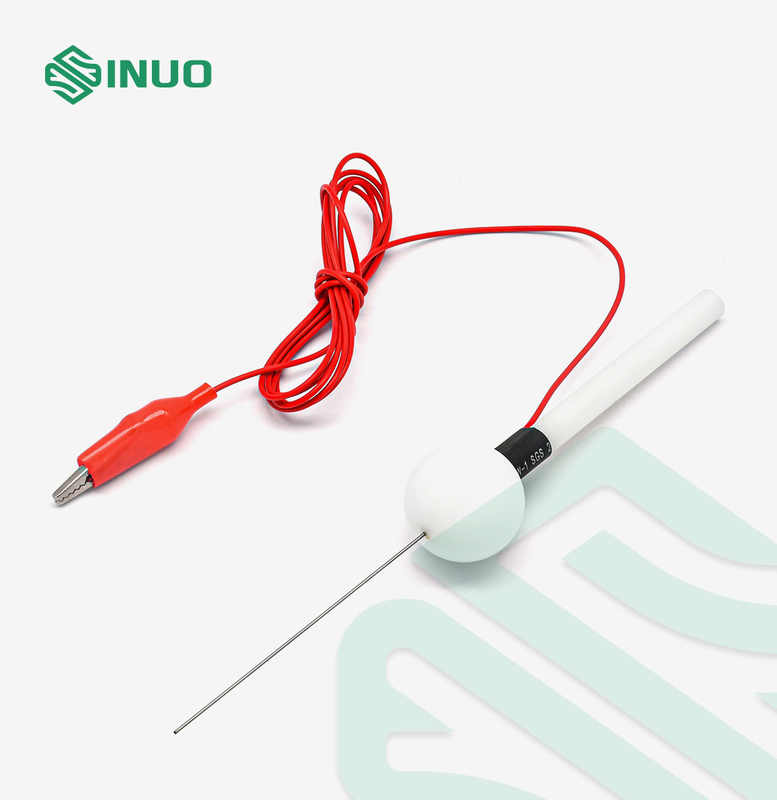

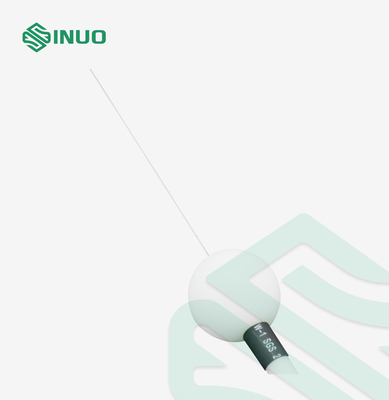

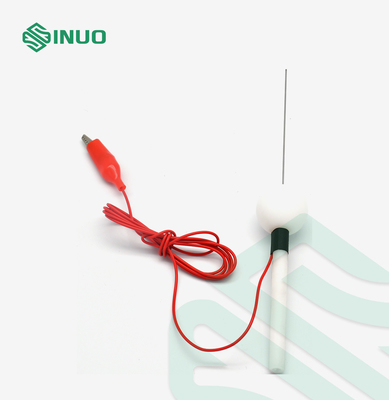

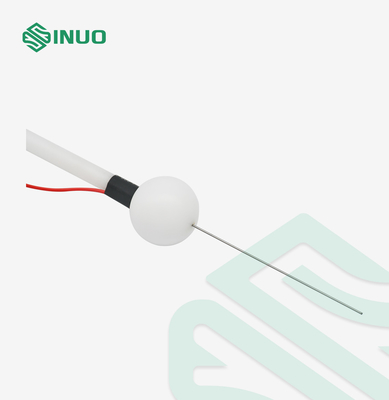

EVSE Testing Equipment Electric Vehicle Charging Pole IPXXD Test Wire



Equipment Overview


This is a precision test finger made in accordance the requirements of IEC 61032 test probe D, required by many standard such as IEC 61851-1 clause 8 and 12.4, IEC 60529 IP4, etc.



This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.



It comes with an alligator clip, and with a M6 hole at the end of the handle for connecting with pull and push gauge to achieve specific force.



Technical Parameters



Parameters /Model SN2210-4
Name Test rod probe D
Test Wire Diameter Ф1+0.05 0 (mm)
Stop Face Diameter SФ35±0.2 (mm)
Handle Diameter Ф10 (mm)
Test Wire Length 100±0.2 (mm)
Handle Length 100 (mm)

Detail

EVSE EV Charging Pole Electric Vehicle Charging Test Equipment IPXXD Test Wire 0
