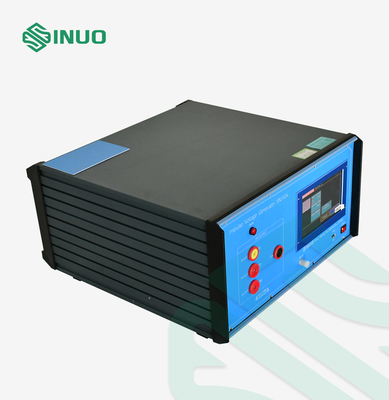

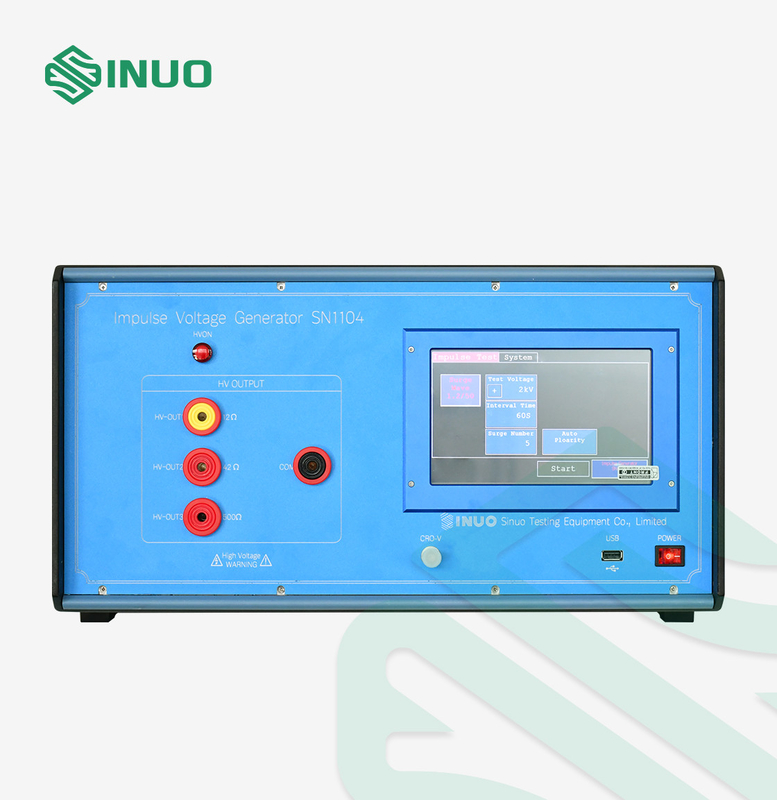

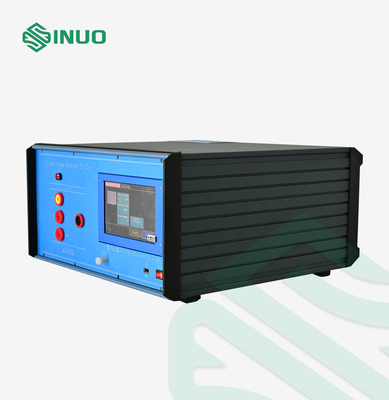

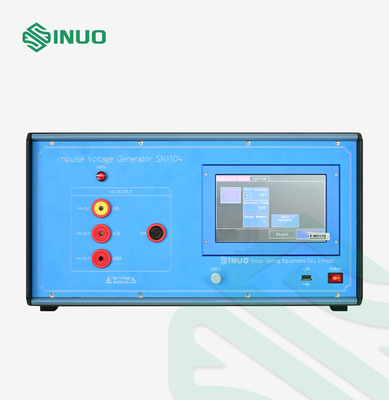

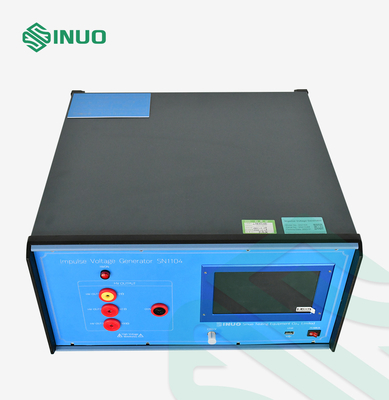

EVSE Testing Equipment Impulse Dielectric Withstand Test Apparatus

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1104

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Carton Box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Low Voltage: 2500 V~ 12500V High Voltage: 300V~2500V
Voltage Range: DC 300 V~ 12500V Internal Resistance: 12Ω,42Ω,500Ω
Impact Interval Time: 5 ~ 99s Can Be Set Number Of Cycles: 1 ~ 9999 Can Be Set
Polarity Mode: Positive And Negative Display Method: 7" LCD
High Light:

LCD IEC EVSE Testing Equipment

,

IEC EVSE Testing Equipment

,

EVSE Impulse dielectric withstand test

Product Description





1.2µs/50µs Impulse Dielectric Withstand EVSE Testing Equipment



Complied Standards & Clauses


IEC/CDV 61851-1 "Electric vehicle conductive charging system - Part 1: General requirements" clause 12.3



IEC 60664-1 "Insulation coordination for equipment within low-voltage supply systems - Part 1: Principles, requirements and tests"



IEC 61180 "High-voltage test techniques for low-voltage equipment - Definitions, test and procedure requirements, test equipment"



Equipments Overview


Application: It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance.

Test sample: Household appliance, Audio, video and similar electronic apparatus.

Feature: This impulse voltage tester is a standard lightning wave test device with waveform 1.2/50µs. front time is 1.2µs, time to half value is 50µs, it is a destructive tester. The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.



Technical Parameters


Model SN1104
DC high voltage Max. 12.5kV
Impulse voltage wave

Impulse wavefront time: 1.2 µs ± 30 %;

Half value of after wave time: 50 µs ± 20 %

(Note: the waveform can be checked by an external oscilloscope.)

Instrument internal resistance 12Ω± 10%, 40Ω± 10%,  500Ω± 10% three resistance built-in, can be switched by choosing different terminal
Peak voltage: 300 V~ 12,500V

Low: 300V~2,500V

High: 2,500 V~ 12,500V

Impact interval time 5 ~ 99s
Impact cycles 1 ~ 9999
Polarity Positive and negative
Working power source Rated voltage: ~ 220V±10%, 50Hz
Dimension 630mm×600mm×380mm
Weight 30 KG


Questions & Answers


Q: Can the impulse waveform be checked directly on this apparatus?

A: This impulse voltage generator should work with an external oscilloscope to view the waveform.
