Clause 16 EVSE Testing Equipment Electric Vehicle Marking Durability IEC 61851

Name

Clause 16 EVSE Testing Equipment Electric Vehicle Marking Durability IEC 61851

Brand Name: Sinuo
Model Number: SN1101
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 30 sets/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate (Cost Additional)
Applied Standard:
IEC 61851-1, Etc.
Applied Clause:
Clause 16
Test Station:
2 Stations
Operation Method:
Button Control
Test Times:
Can Be Set
Test Medium:
Petroleum Spirit
Drive Mode:
Electrical
Warranty Term:
One Year
Packaging Details:
Carton Box
Supply Ability:
30 sets/month
Highlight:

Clause 16 EVSE Testing Equipment

,

Marking Durability EVSE Testing Equipment

,

IEC 61851 electric vehicle testing equipment

Product Description

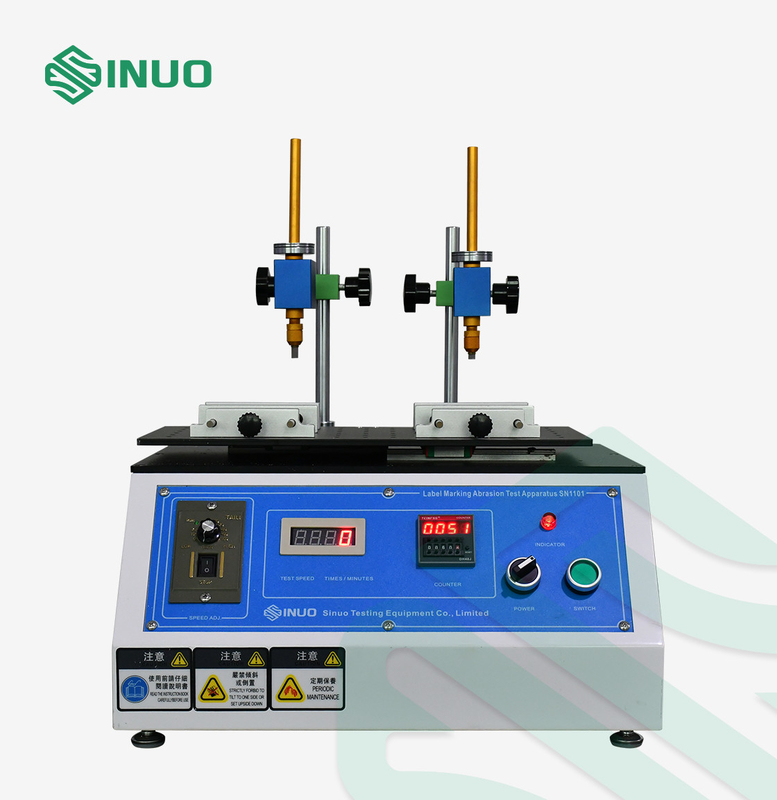

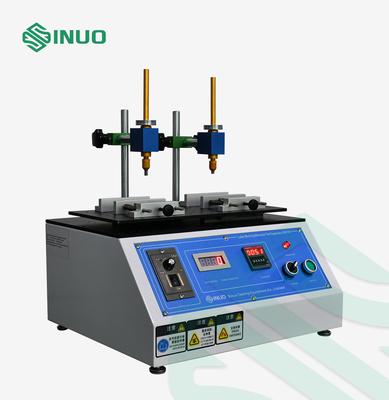

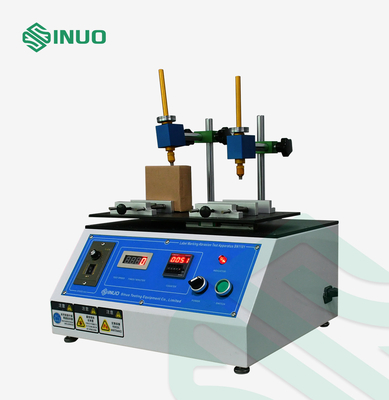

IEC 61851 Electric Vehicle EVSE Marking Durability Testing Equipment



Complied Standards & Clauses



IEC/CDV 61851-1 "Electric vehicle conductive charging system - Part 1: General requirements" clause 16.



Equipment Overview



This marking durability test apparatus is suitable for abrasion testing of all kinds of plastic injection, silk screen surface,etc.



The testing is conducted by rubbing the marking for 15s with a piece of cloth soaked with water and again for 15s with a piece of cloth soaked with petroleum spirit.



Technical Parameters



Test stations Two stations
Test stroke 10-60mm, adjustable(Manually adjustable)
Speed 5-60 times /min, adjustable
Counter 0-9999 adjustable
Weight Two sets of 10g, 20g,50g, 100g, 200g, 500g
Voltage AC 220V, 50Hz, 5A
Machine size: 510*450*480mm
Accessories:

Petroleum spirit/ alcohol abrasion test fixtures* 2 pcs

Rubber head abrasion test fixtures* 2 pcs

Pencil abrasion test fixtures* 2 pcs

Cotton cloth *1 pack

Rubber head 2 pcs

Pencil *2 pcs

Details

Clause 16 EVSE Testing Equipment Electric Vehicle Marking Durability IEC 61851 0
