Salt Spray Cyclic Corrosion Electric Vehicle Environmental Testing Chamber

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SNQC8810C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Other
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 1 set/month
Contact Now

Detail Information

Applied Standard: GMW 8738 And Etc. UUT Type: Motor Vehicles
Room Size: Can Be Customized Control Method: PLC And Computer
Sample Room Temperature: RT~55℃ Saturation Barrel Temperature: 35℃~70℃
Temperature Deviation: ±2℃ Humidity Range: ≥95%RH
Salt Spray Deposition: 1~2/80cm2.h Salt Spray Concentration: 5±0.5%
High Light:

PLC ev vehicle environmental testing

,

ev Salt Spray vehicle environmental testing

,

PLC ev automotive environmental testing

Product Description

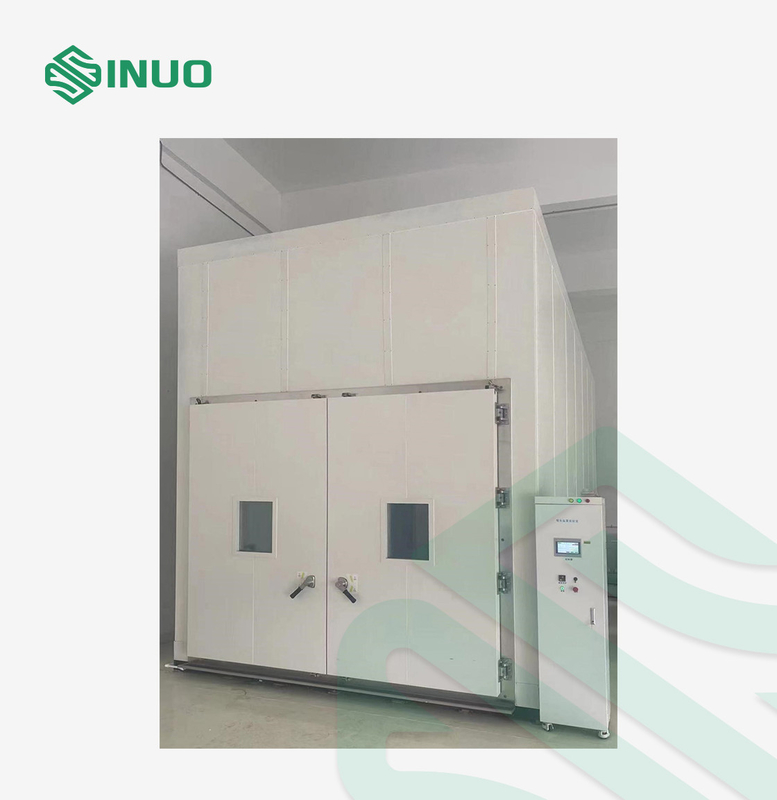

Electric Vehicle Salt Spray Cyclic Corrosion Environment Chamber

Complied Standards & Clauses



GMW8738-2005 “Proving Ground Corrosion Road Test Specification”

GM9540P-1997 “Accelerated Corrosion Test”

GMW14872-2006 “Cyclic Corrosion Laboratory Test”

GMW 14872 "Cyclic Corrosion Laboratory Test"

SAE J2334 "Laboratory Cyclic Corrosion Test"

......

Equipment Overview



 As an important test equipment for adaptability and reliability, the salt spray laboratory is also widely used in the automotive industry. It can detect the ability of electrophoretic coatings with different film thicknesses, different parts, and different structures to withstand accelerated salt spray tests. Identify and analyze these parts that are prone to corrosion, so as to take corresponding protection work.

Scope of tests:

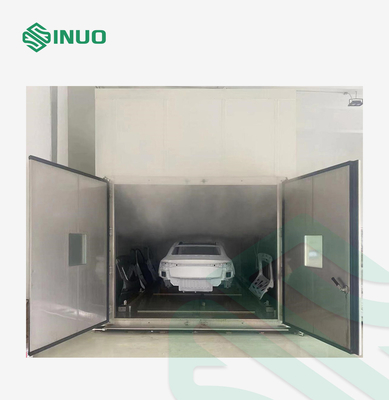

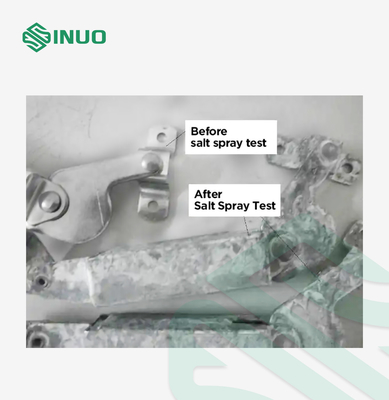

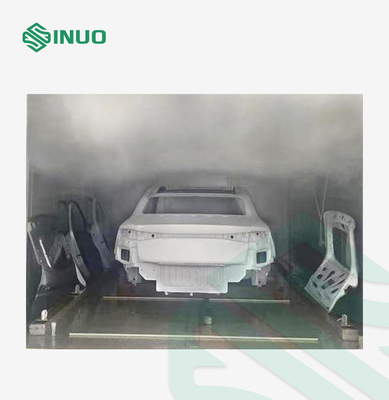

It is suitable for salt spray corrosion test of parts, electronic hardware components, protective layers of metal materials and industrial products. This test salt spray cyclic corrosion test chamber mainly used in the automobile industry, such as: salt spray corrosion test of body, chassis, engine, etc. It can complete neutral salt spray test, acetate salt spray test and copper accelerated acetate salt spray test.


Technical Parameters




Control & Operation

PLC and touch screen intelligent control system,
(External computer operation can be optional)

Test Room Size

8000 mm×5000 mm×3500mm (depth×width×height) (excluding spire)
Or can be customized

Door Type Double door, 4000mm×2600mm, stainless steel door, with double layer silicone rubber sealing and door locking device
Observation Window 350×450mm (width×height) (conductive film heating anti-fog glass)
Sample Room Temperature RT~55℃
Saturation Barrel Temperature 35℃~70℃
Temperature Deviation ±2℃ (no load)
Temperature Fluctuation

±0.5℃  (no load)

Salt Spray Deposition 1.0 ~2.0ml/80cm2.h
Salt Spray Concentration 5±0.5%
Humidity Range

≥95%RH

Spray Method Pneumatic continuous and intermittent spray can be freely
Air Pressure 0.2 – 0.4Mpa (for reference)
Spray Pressure 0.05~0.17 Mpa/cm (for reference)
Center Angle 110~120°
Test Time 0~999 H, M, S (can be preset)
Bottom loading capacity ≥5T
