Good price Automotive EMC Test Chamber Electric Vehicle ESA Electro Magnetic Compatibility online

Automotive EMC Test Chamber Electric Vehicle ESA Electro Magnetic Compatibility

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN661-EVESA

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Other
Delivery Time: 6 months
Payment Terms: T/T
Supply Ability: 1 set/month
Contact Now

Detail Information

Test Sample: Automotive Parts Anechoic Chamber: 9.2* 6.2*6.2m
Control Room: 3.0*3.0*3.0m Amplifier Room: 2.0 *3.0*3.0m
Conduction Emission: 150kHz-30MHz Radiated Emission: 30MHz-6GHz
Conduction Emission Test Environment: Shielded Room Radiated Emission Test Environment: Shielded Room
High Light:

EMI emc test chamber

,

EMS emc test chamber

,

EMS emi test chamber

Product Description




EMC Test Solution for Automotive ESA Electric Vehicle Testing Equipment


Complied Standards & Clauses


UN ECE R10 "Uniform Provisions Concerning the Approval of Vehicles with Regard to Electromagnetic Compatibility"

EN 55025/CISPR 25 "Vehicles, boats and internal combustion engines- Radio disturbance characteristics- Limits and methods of measurement for the protection of on-board receivers"
CISPR 12 "Vehicles, boats and internal combustion engines - Radio disturbance characteristics - Limits and methods of measurement for the protection of off-board receivers"
ISO 11452 "Road vehicles-Component test methods for electrical dusturbances from narrowband radiated electromagnetic energy"
ISO 10605 "Road vehicles — Test methods for electrical disturbances from electrostatic discharge"
SAE J1113 "Electromagentic Compatibility Measurement Procedure and Limits for Vehicle Components (Except Aircraft) (60Hz to 18GHz)"
EN 50498 "Electromagnetic compatibility (EMC)-Product family standard for aftermarket electronic equipment in vehicles"

EN301489-1: "ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements"
EN55032: " Electromagnetic compatibility of multimedia equipment - Emission requirements"
IEC 61000-3-2: "Electromagnetic compatibility limits for harmonic current emissions (equipment input current ≤16A)"
IEC 61000-3-3: "Electromagnetic compatibility limits the voltage variation produced with rated current ≤16A and unconditional access of the device in public low-voltage power supply system, voltage fluctuations and flicker limits"

......


System Overview


The whole test system includes EMI test project and EMS test project shown as following:

  • EMI test project
Test items Test content Test site
Conduction Emission 150kHz-30MHz, QP / AV Shielded room
Radiated Emission  30MHz-6GHz, QP / AV Shielded room
Harmonic current emissions According to IEC61000-3-2 Ordinary laboratory
Voltage fluctuations and flicker According to IEC61000-3-3 Ordinary laboratory
  • EMS test project
Test items Test content Test site
ESD test According to IEC61000-4-2 Ordinary laboratory
EFT test According to IEC61000-4-4 Ordinary laboratory
Conducted RF immunity According to IEC61000-4-6 Shielded room
RF radiated immunity test According to IEC61000-4-3 chamber
Surge immunity test According to IEC61000-4-5 Ordinary laboratory
Voltage dips, short interruptions and voltage variations immunity According to IEC61000-4-11 Ordinary laboratory

ISO 7637 test

Automotive Electronics Test Project (For Automotive parts)

According to ISO 7637

pulses 1, 2a, 2b, 3a, 3b, and 4

Ordinary laboratory

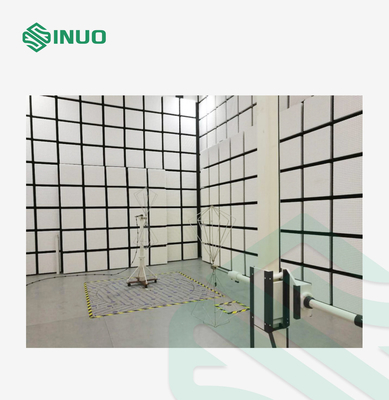

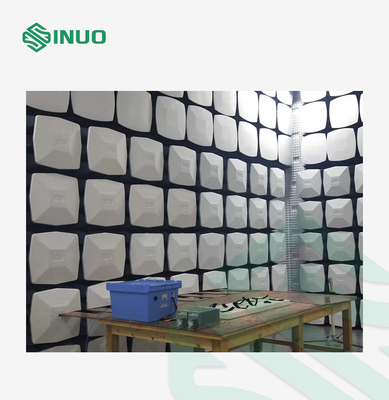

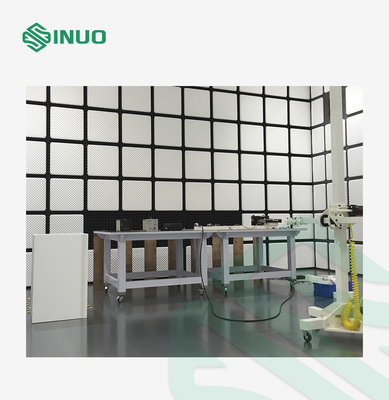

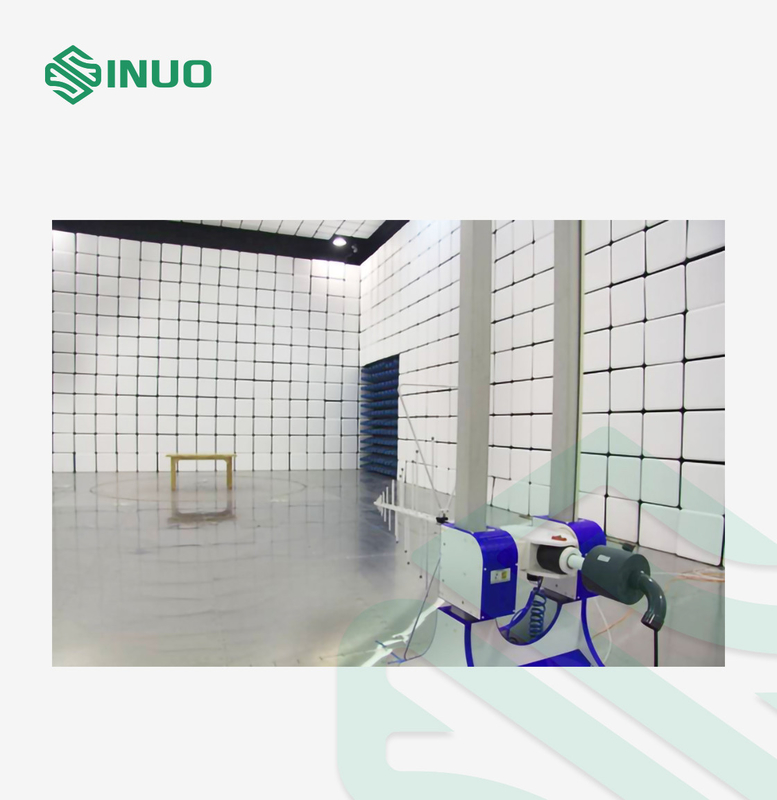

The system consists of an SAC, a control room and an amplifier room:



NO. Item Specification (outer size) QTY
1 Anechoic Chamber

9.2 × 6.2× 6.2m (L × W × H)

(Adjustment is according to the structural of the building, cost will be different)

1
2 Control Room

3.0 × 3.0 × 3.0m (L × W × H)

(Adjustment is according to the structural of the building, cost will be different)

1
3 Amplifier Room

2.0 × 3.0 × 3.0m (L × W × H)

(Adjustment is according to the structural of the building, cost will be different)

1

Details

Automotive EMC Test Chamber Electric Vehicle ESA Electro Magnetic Compatibility 0
