IEC 62196-1 EV Charger Testing Equipment 3 Stations eV charge point tester

IEC 62196-1 EV Charger Testing Equipment 3 Stations eV charge point tester

Brand Name:	Sinuo
Model Number:	SNQC1009-3
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 Sets / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

IEC 62196-1，clause 7.11 And Etc.

Control Method:

PLC Control, Touch Screen Operation

Test Stations:

3 Stations

Drive Mode:

Servo Motor

Bending Rate:

0-60 Times/min, Can Be Preset

Bending Angle:

0-360° Can Be Adjusted

Bending Times:

0~999999 Can Be Preset

Load Weight:

20N, 25N, 50N, 75N, 100N

Packaging Details:

Plywood Case

Supply Ability:

1 Sets / Month

Highlight:

75N EV Charger Testing Equipment

IEC62196 EV Charger Testing Equipment

75N ev charge point tester

Product Description

IEC 60390 Electric Vehicle Charging Plug And Socket Cable Flexing Test Apparatus

Complied Standards & Clauses

IEC 62196-1:2014 "Plug,socket-outlets,vehicle couplers and vehicle inlets–Conductive charging of electric vehicle-Part1:Charging of electric vehicles up to 250A a.c and 400A d.c" clause 7.11 and clause 7.15

IEC 60309-1:2012 "Plug,socket-outlets and couplers for industrial purposes–Part1:General requirement" clause 24.4

Equipment Overview

Samples and Restrictions: Electric vehicle charging interfaces, industrial plug sockets and couplers

Test Purpose: It is used for the bending connection part test of the "mechanical strength" part of the power connection cable of the plug and socket of the charging vehicle

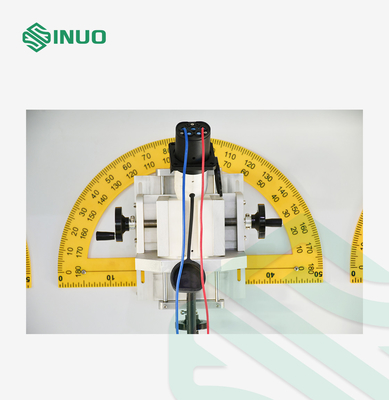

Test Principle: It uses the servo motor to drive the turntable to drive the workpiece to swing left and right, and automatically stops when the number of times is reached.

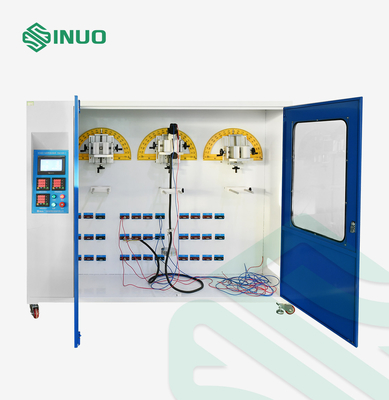

Structure: The equipment is driven by a servo motor, and the large-size sample is installed with an aluminum plate, which can make the swing axis coincide with the point where the flexible wire enters the appliance as much as possible when the sample is clamped, so as to achieve the minimum lateral displacement of the flexible wire and the load.

Power supply: AC220V±10%/50-60Hz, power 3KW

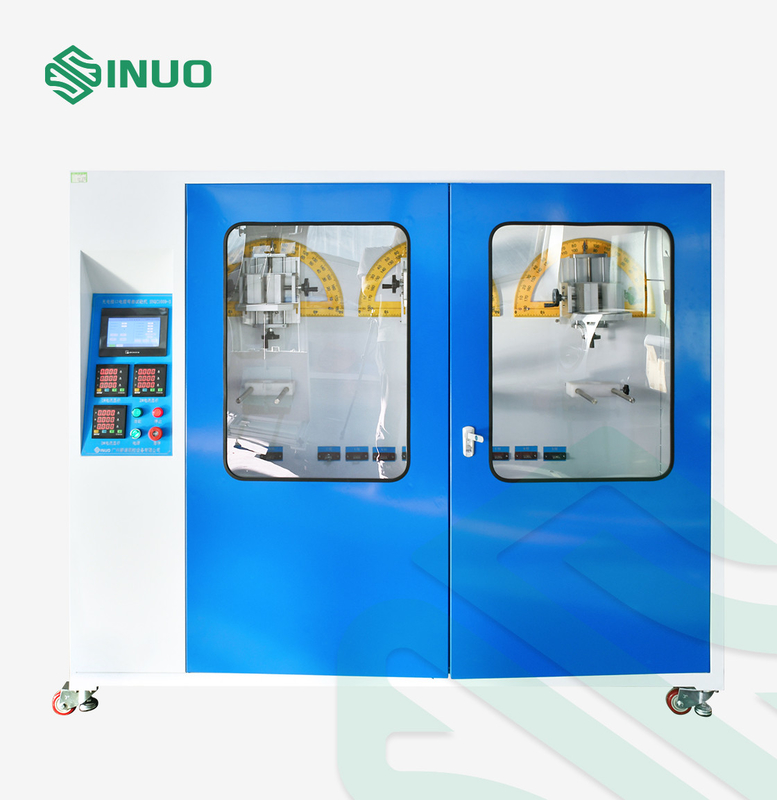

Dimensions: about W1900*D850*H1620mm; weight: about 250kg

Technical Parameters

Test stations	3 stations
Electrical control method	PLC intelligent integrated control, 7-inch man-machine touch interface operation
Drive mode	Servo motor drive
Specimen clamping method	Mechanical clamping, adjustable clamping point position
Bending angle	0-360° can be adjusted arbitrarily (default ±45°)
Bending rate	0-60 times/min, can be preset
Bending times	0~999999 can be preset, the default is 20000 times
Load weight	20N, 25N, 50N, 75N, 100N
Load power	External, optional load cabinet with adjustable voltage between conductors of 0-250V and adjustable current of AC0-400A
Test judgment	Judging by the signal given whether the current is conducting or not
