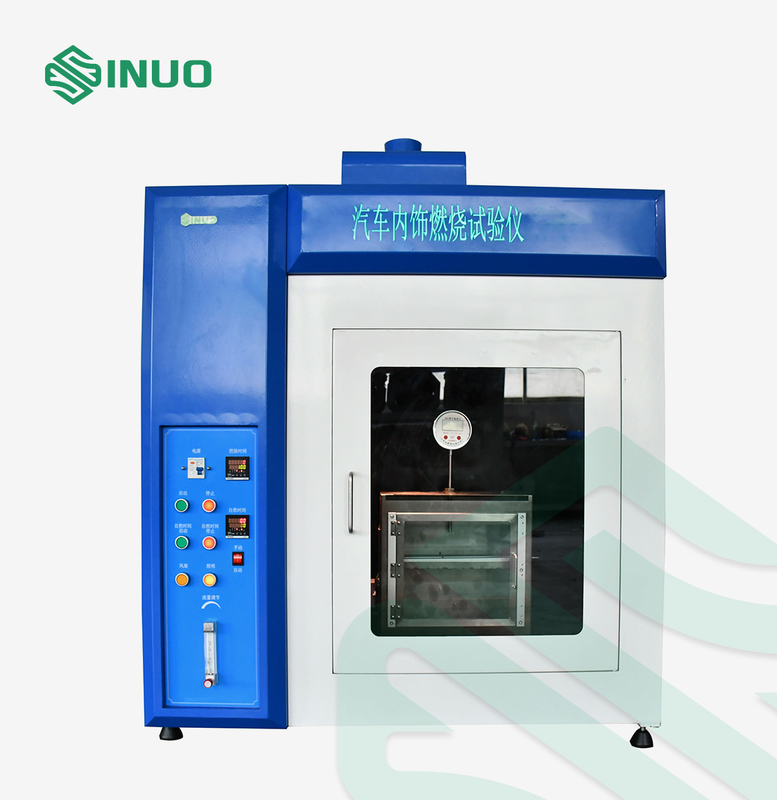

ASTM D5132 EV Flammability Testing Equipment Interior Material Combustion Test Apparatus

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN776

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 20 sets/month
Contact Now

Detail Information

Applied Standard: ASTM D5132 Other Standards: ISO 3795 And Etc
Samples And Restrictions: Interior Materials Burning Time: 0 - 999.9s
Combustion Chamber Size: 385×204×360mm Burner Inner Length: Length 100±10mm
Flame Height: 38mm, Adjusted By Flowmeter Burner Inner Diameter: Φ9.5±0.3mm
High Light:

ASTM Flammability Testing Equipment

,

D5132 Flammability Testing Equipment

,

D5132 flammability test apparatus

Product Description





ISO 3795 New Energy Vehicle Interior Material Combustion Test Apparatus



Complied Standards & Clauses




ISO3795-1989 “Road vehicles, and tractors and machinery for agriculture and forestry-Determination of burning behavior of interior materials”

ASTM D5132 “Standard Test Method for Horizontal Burning Rate of Polymeric Materials Used in Occupant Compartments of Motor Vehicles”



Equipment Overview




This tester is used to test automotive (cars, utility vehicles, trucks and buses) interior materials
It is suitable for the evaluation of horizontal combustion characteristics of interior materials of automobiles (cars, multi-purpose buses, trucks, and buses)


The integrated air intake automatic ignition system is adopted, and the combustion delay is only 0.1 seconds to ensure that the gas is fully burned.


Power supply: single-phase AC220V±10%, 50/60Hz or match client's local power supply requirements

Use environmental: Ambient temperature: 10℃~35℃, relative humidity: 30%~90%



Technical Parameters


Control and Operation Mode



Electrical control, button operation

(PLC control touch screen operation is optional)

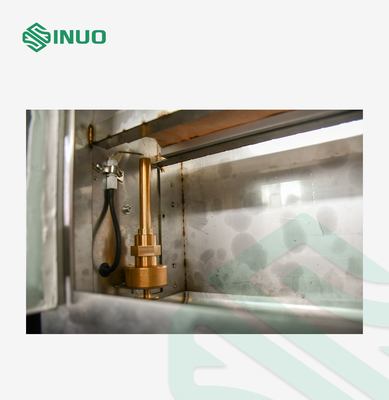

Burner Dimension Inner diameter Φ9.5±0.3mm, cylinder length 100±10mm
Gas Flow and Gas Source Type Liquefied petroleum gas, natural gas and coal gas can also be used

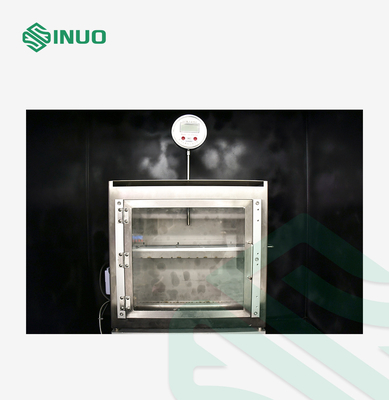

Combustion Chamber Made of stainless steel, with heat-resistant glass observation windows, with ventilation holes around and at the bottom, W×D×H=385×204×360mm
Burning/self-extinguishing Time 0-999.9S
Distance from The Top of The Torch to The Sample 19±1mm
Flame Height 38mm, adjusted by flowmeter
Metal Comb The length is at least 110mm, and there are 7-8 smooth round teeth in every 25mm
Temperature measuring range 0-150°C, displayed by a thermometer

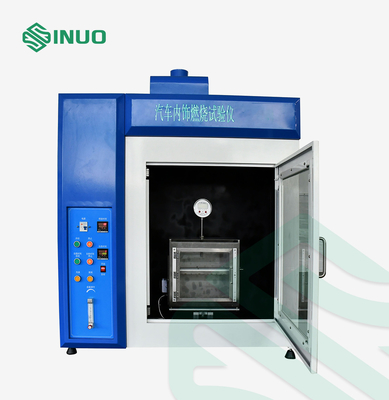

External Dimensions Electrically controlled fume hood and combustion chamber, black matt background, built-in lighting, with exhaust fan, overall dimensions: WDH=1150×600×1200mm, 180kg

Questions & Answers

Q: What temperature range can the device test?
A: 0-150°C



Q: What is the Burner of this device?
A: The Inner diameter Φ9.5±0.3mm, cylinder length 100±10mm
