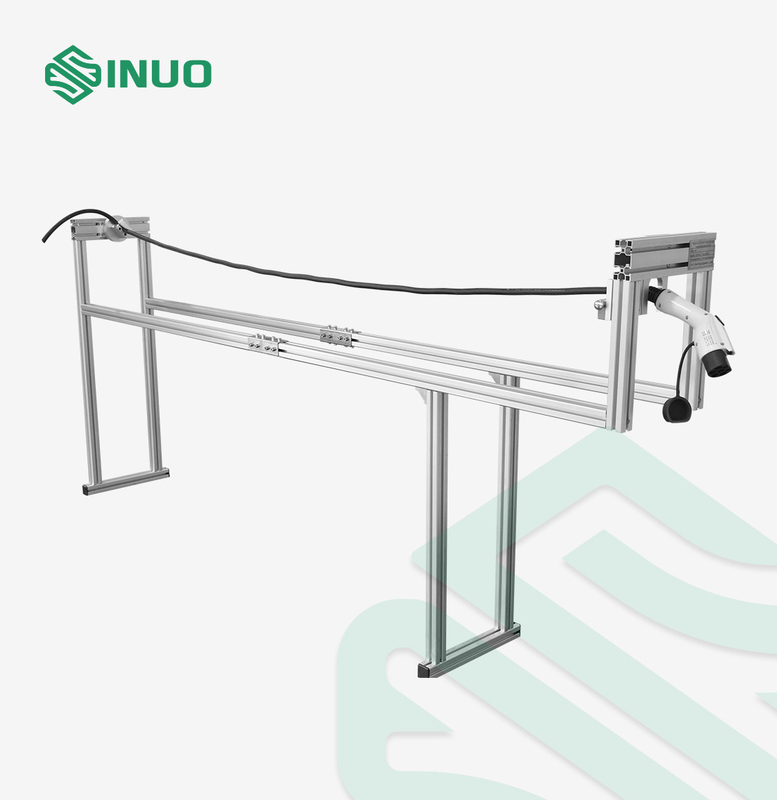

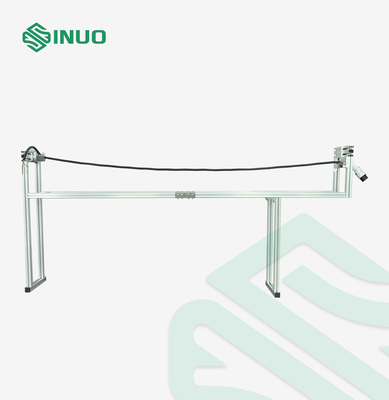

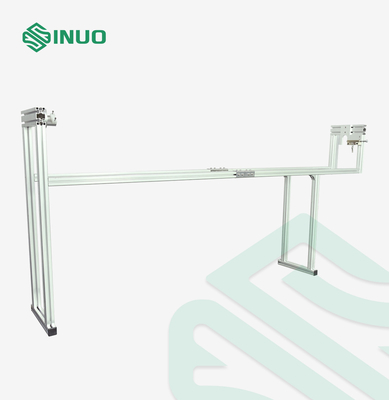

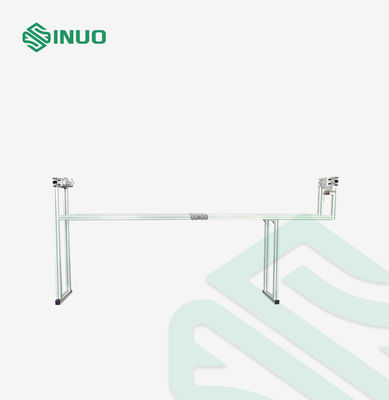

IEC62196 New Energy Vehicle Multiple Portable Socket-Outlets Mechanical Strength Tester



Complied Standards & Clauses




IEC 62196-1Ed.4CDV: 2020 "Plugs, Socket - Outlets and Couplers for Industrial and Similar Applications, and For Electric Vehicles" clause 26.3, fig 19.



IEC60884-1:2006 "Plugs and socket-outlets for household and similar purposes- Part1:General requirements" clause 24.9 and figure 29.



GB2099.1-2008 "Plugs and socket-outlets for household and similar purposes- Part1:General requirements" clause 24.9 and figure 29.



Technical Parameters




The Height of Dropping 750mm
Distance from The Fixed End 2250mm
Dropping Times 8times
Rotating Angle 45°, it can be rotated in all sides
Dropping Method Manual release


Equipment Overview




Samples and Restrictions: Multiple-position mobile sockets



Test Purpose: It is used to test the mechanical strength of rewirable plugs and vehicle connector which is equipped with flexible cable.



Test Principle: Fix the sample by a clamp at a height of 750mm from the ground to verify the mechanical strength



Structure: Outer size:about:2400×850×400(mm)W×D×H,equipment weight:50kg



Power supply:-,working temperature:0-40℃ humidity:30%-90%;





IEC62196 2250mm EV Connector Testing Equipment 50kg Socket - Outlets Strength Test 0



Questions & Answers




Q: What is the dropping height?
A: The dropping height is 750mm.



Q: What are the size for this device?
A: The size of the device is about
2400×850×400(mm)W×D×H. Weights 50kg.



Details:




For testing the mechanical strength of regenerable plugs and automotive connectors fitted with flexible cables.

The sample is held so that the cable is level and then allowed to fall on the concrete floor. This was done 8 times; the cable was rotated 45° each time it was fixed.



Renewable plugs and vehicle connectors are fitted with a small portion (about 200mm) of the lightest type of flex cable with the minimum cross-sectional area recommended by the manufacturer.



After testing, the samples shall show no damage as specified in IEC 62196-1Ed. 4 cdv 2020; In particular, no parts should come off or come loose. The sample should not expose parts that may be charged. Samples should maintain their IP rating.
Accessories with a degree of protection IP44 or higher should be subjected to the relevant tests specified in IEC 62196 - 1ed. 4CDV 2020 Clause 20.


Accessories with thermoplastic housings shall be tested to IEC62196-1ed. 4CDV 2020 Clause 21.4.
