IEC 62196 Electric Vehicle Testing Equipment Charger Breaking Capacity Test Apparatus

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1005

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 Sets / Month
Contact Now

Detail Information

Applied Standard: IEC 62196-1Ed.4CDV: 2020 Applied Clause: Clause 22, 23.2 And 23.3
Test Station: Single Station Drive Method: Servo Motor
Conduction Time: 0-99.9 S, Can Be Preset Linear Stroke: 0-100mm, Can Be Preset
Speed Range: 0-0.85m/s, Can Be Preset Test Cycles: 0~999999 Cycles
High Light:

IEC 62196 Vehicle Testing Equipment

,

300V EVehicle Testing Equipment

,

IEC 62196 electric vehicle tester

Product Description

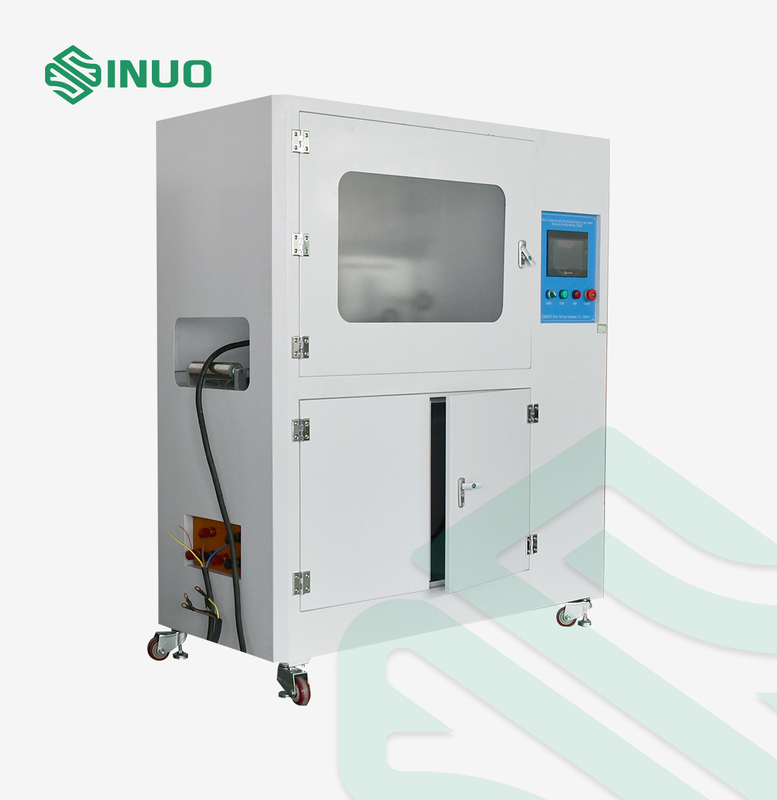

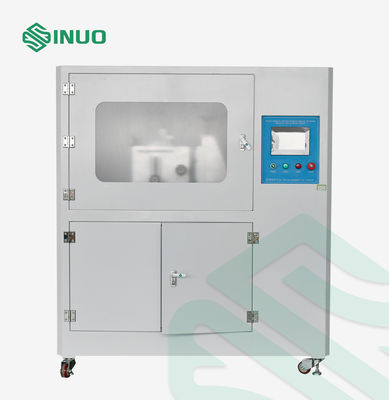

IEC 62196 Electric Vehicle Charger Breaking Capacity Test Equipment
Complied Standards & Clauses



IEC 62196-1 Ed.4CDV 2020 clause 22, 23.2, 23.3, fig 15, table 8 and table 9, clause 22 and 23.

IEC 60309-1: 2012 clause 20 and clause 21.

Technical Parameters




Test StationSingle, can be customized
Electrical Control MethodPLC intelligent integrated control, with color humanized touch screen
Drive ModeServo motor drive

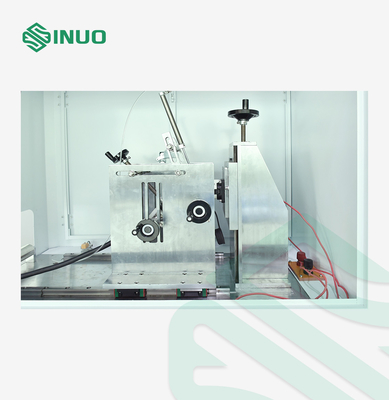

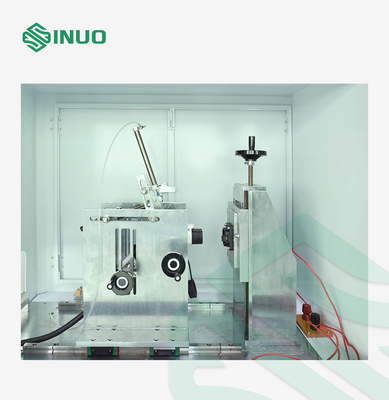

Sample Clamping MethodMechanical clamping, the position of clamping point can be adjustable along the 3-axis fixture
Linear Stroke0-100mm, can be preset (the spacing between test plug and test socket≥ 50mm)
Conduction Time0-99.9s, can be preset (electrical contact should be maintained no more than 4s, no less than 2s)
Speed of Insertion and Withdrawal0-0.85m/s can be preset, default(0.8±0.1)m/s)
Test Cycles0~999999 cycles, can be preset (A stroke is an insertion or a withdrawal of a plug or vehicle connector with its mating accessory. A cycle is composed of two strokes, one for insertion and one for withdrawal.)
Test Frequency0-10 cycles/min, can be preset (3.75cycles/min=7.5 stoke/min)
Load PowerExternal, providing standard required voltage, current and power factor, the load cabinet is optional
Optional Load CabinetNote: only with AC load cabinet, 0-70A, voltage 0-300V
Test Contents

Appliance coupler/charging interface breaking capacity test
Appliance coupler / charging interface normal operating life test

ClampIEC 62196 Electric Vehicle Testing Equipment Charger Breaking Capacity Test Apparatus 0
Detection FunctionAn open circuit alarm can be realized during testing under load, and the cycles can be recorded real in time.
Safety ProtectionGround protection, short circuit protection



Equipment Overview



Samples and Restrictions: Electric vehicle charging interfaces (plug, socket-outlets, vehicle connectors), industrial purpose plugs, socket-outlets and couplers

Application: It is used to verify whether electrical accessories such as electric vehicle charging interfaces, industrial plugs, socket-outlets and couplers can withstand the mechanical, electrical and thermal stresses that occurred during normal operation without excessive wear or other harmful effects.

Test Principle: The servo motor drives the mechanism to make the test samples repeat insertion and withdrawal actions. An external load can be used for the breaking capacity test. The power on / off time, test speed, stroke, and angle can all be preset on the touch screen.

Structure: It adopts integral frame, driven by servo motor, precision ball screw and timing belt, with color touch screen for humanized operation and powerful digital display, and PLC for intelligent control, adopts three-axis adjustable clamp for charging interface life span test.

Use Environment: Power supply: AC220V±10%,50/60Hz, or match client’s local power supply requirements
Working temperature 0-40°C, humidity 30%-90%;
Dimensions: about W1000*D750*H1200mm;
Weight: about 150kg

Deatails








IEC 62196 Electric Vehicle Testing Equipment Charger Breaking Capacity Test Apparatus 1
