Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1012

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 Sets / Month
Contact Now

Detail Information

Applied Standard: IEC 62196-1Ed.4CDV 2020 Power Supply: According To Customer Requirements
Test Station: Single Station Test Rate: (10 ± 2) R/min
Gyration Diameter: 75 Mm Load Weight: 0.4-70.3Kg
Test Height: 260-660mm Warranty Time: One Year
High Light:

Fig12 EV Connector Testing Equipment

,

IEC 62196 EV Connector Testing Equipment

,

Fig12 ev testing equipment

Product Description

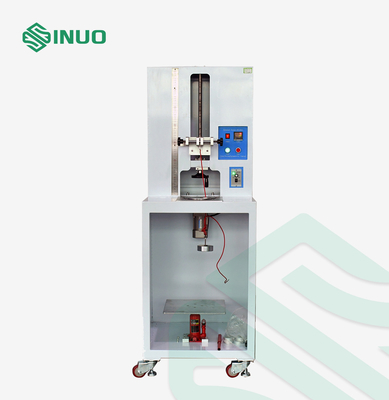

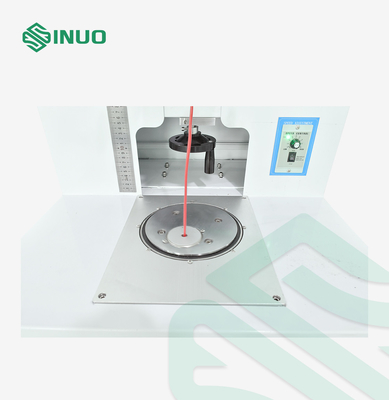

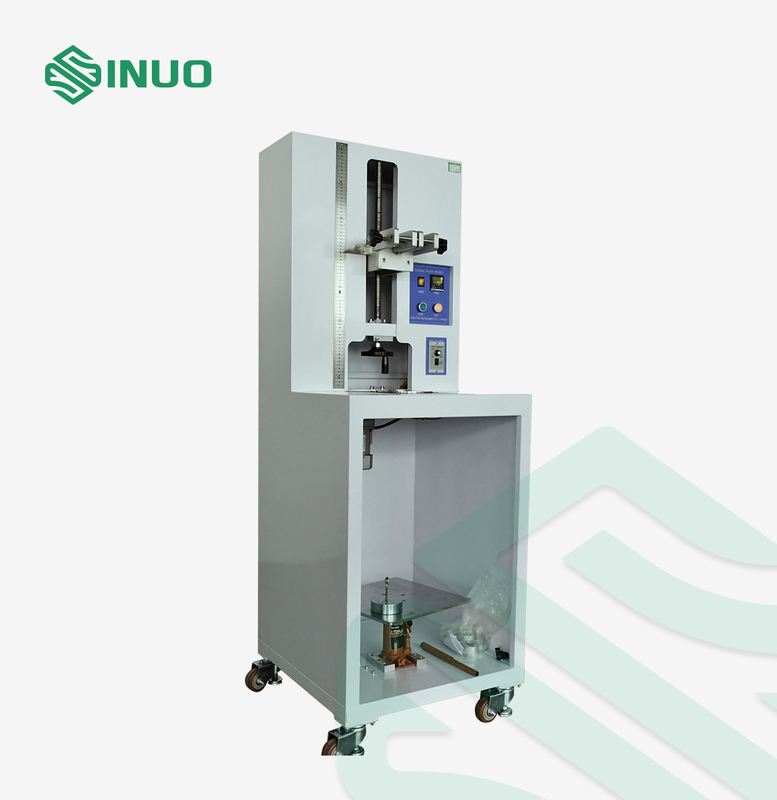

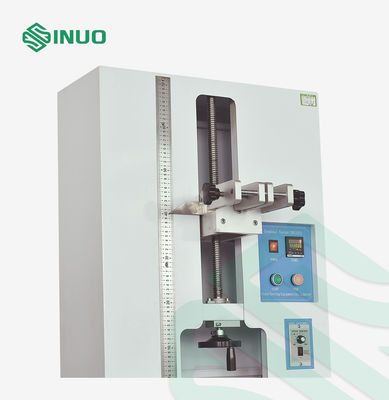

IEC 62196 Fig12 EV Connector Clamping Screw Terminal Testing Equipment



Complied Standards & Clauses




This testing machine conforms to IEC 62196-1:2020 clause 13.3.1 fig12, table 3, etc.



Technical Parameters




Parameter Name Parameter Data
Power Supply According to customer requirements
Test Station Single
Test Rate (10 ± 2) r/min
Diameter of Gyration 75mm
Test Times 1-999999times
Load Weight 0.4-70.3Kg
Test Height 260-660mm adjustable
Diameter of Bushing 6.5mm, 9.5mm, 13mm, 14.5mm, 15.9mm, 19.1mm, 22.2mm, 25.4mm, 28.6mm, 31.8mm, 38.1mm, 44.5mm
Equipment Dimensions & Weight L 600mm* W 600mm * H1680mm, approx. 350KG


Equipment Overview




It is used to mechanically test the terminal to determine whether the design and structure of the new terminal is compatible with the new conductor, and whether the minimum and maximum cross-sectional areas are good. In addition, it is used to check whether the clamping screw terminals can withstand stress during normal use.

The number of tests can be preset before the test. When the preset number of tests is reached, the testing machine automatically stops and an alarm is issued. It is used to perform mechanical tests on terminals to determine whether the design and structure of the new terminals are compatible with the new conductors, and whether the minimum and maximum cross-sectional areas are good. In addition, it is used to check whether the clamping screw terminals can withstand stress during normal use.

The number of tests can be preset before the test. When the preset number of tests is reached, the testing machine automatically stops and an alarm is issued.



Fig12 Terminal EV Connector Testing Equipment Clamping Screw IEC 62196 0

Fig12 Terminal EV Connector Testing Equipment Clamping Screw IEC 62196 1


Questions and Answers



Q: What is the diameter of bushing hole for this device?
A: It is 6.5mm, 9.5mm, 13mm, 14.5mm, 15.9mm, 19.1mm, 22.2mm, 25.4mm, 28.6mm, 31.8mm, 38.1mm, 44.5mm
(details refer to following table 3).



Q: What is the Rate of Testing for this device?
A: It is (10±2) r/min.



Details:


Fig12 Terminal EV Connector Testing Equipment Clamping Screw IEC 62196 2



Fig12 Terminal EV Connector Testing Equipment Clamping Screw IEC 62196 3

Want to Know more details about this product
I am interested in Fig12 Terminal EV Connector Testing Equipment Clamping Screw IEC 62196 could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
