UL 2594 Electric Vehicle Supply Equipment 50mm Steel Ball Impact Test Device

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2202C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 sets/month
Contact Now

Detail Information

Complied Standard: IEC60598, IEC60950 And Etc Steel Ball Diameter: Diameter 50mm
Control Method: Button + Remote Steel Ball Mass: Mass 500±25g
Steel Wire Rope: Rope Ф1mm Wire Material: 304 Stainless Steel
Height Range: 0.5~2.0m Height Display: 2m Thick
High Light:

UL 2594 Electric Vehicle Supply Equipment

,

IEC60598 Electric Vehicle Supply Equipment

,

50mm Steel Ball Impact Test Device

Product Description

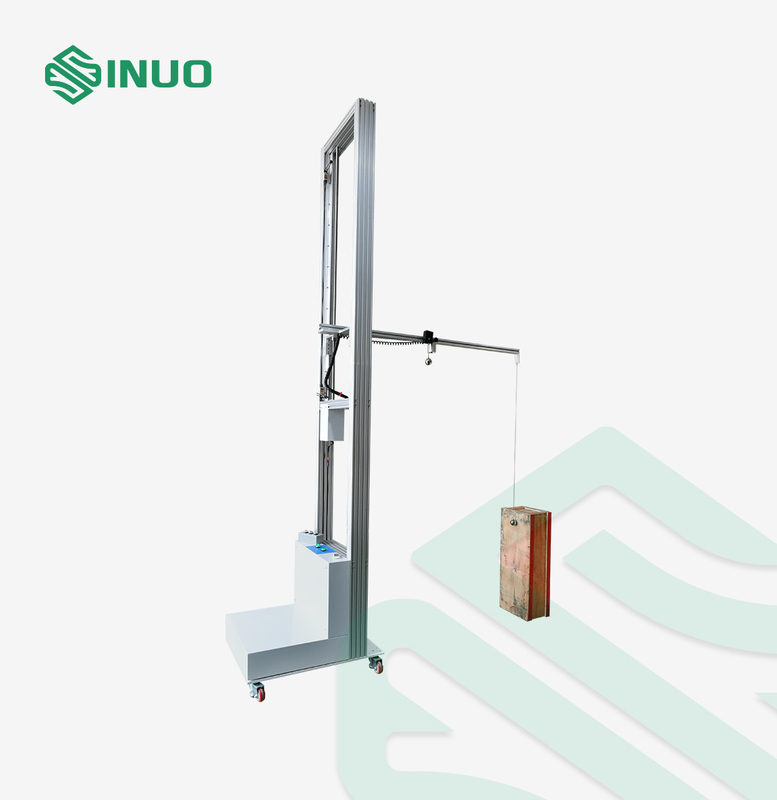

Steel Ball Impact Test Device for Electric Vehicle Supply Equipment


Complied Standards & Clauses for Steel Ball Impact Test Device




This electric vehicle steel ball impact test device complied to UL 2594 clause 57 figure 18 and 19 and etc.

Technical Parameters for Steel Ball Impact Test Device




Power supply: AC220 50Hz

Control method: button + remote infrared remote controller

Impact steel ball: diameter 50mm, 500±25g, with ring. Bearing steel material: GCr15, hardness above HRC60.

Steel wire rope: Ф1mm, material 304 stainless steel, rubber-coated, length 1.3m, adjustable

The height range of the sample: 0.5~2.0m, the length and width of the sample are not limited

Height range of impact point of steel ball: 0.5~2.0m

The lifting method of the equipment release cross arm: it is adjusted by the motor-driven lifting mechanism

Height display: 2m thick stainless-steel ruler, minimum scale 1mm

Release method: electromagnet release


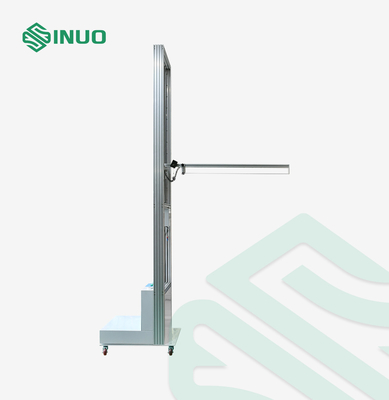

UL 2594 Electric Vehicle Supply Equipment 50mm Steel Ball Impact Test Device 0



Equipment Overview for Steel Ball Impact Test Device



This electric vehicle steel ball impact test device application: it is suitable for drop impact test for equipment enclosure.


Test sample: Electrical vehicle charging station, Luminaries, Audio, video and similar electronic apparatus, Information technology equipment


Feature:

  1. Vertical drop impact test: The system controls the electromagnet to release a solid steel ball of Ф50mm, 500±25g, so that it can freely fall from a height of 1.3m to the top surface of the charging station, and the impact energy test of 6.5J is generated on the sample;

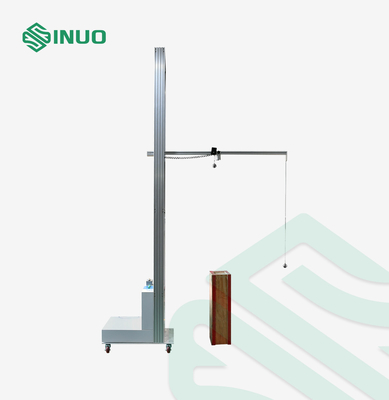

  2. Swing impact test: The system controls the electromagnet to release the solid steel ball of Ф50mm, 500±25g, so that it swings freely from the horizontal 0° position along the 1.3m steel wire rope to impact the side of the charging station, the impact energy test of 6.5J is generated on the sample; the impact can be carried out on the sides of the four 90° directions of the sample.
  3. Using a trolley structure, it can be movable and positioned around the sample and test different sides of the sample.
  4. The electric lifting structure is adopted, the installation of steel balls is labor-saving, and the impact on the top and side surfaces of the sample at different heights is satisfied.
  5. It is released by electromagnet, which can be controlled by remote infrared remote controller, with high safety factor.
  6. There are two ways of impact: vertical impact and swing impact, which fully meet the standard requirements
  7. Equipment can carry out test in two forms of vertical drop and swing impact


Operation Steps for Steel Ball Impact Test Device



Test preparation
1. Fix the sample in the normal position to ensure that the supporting surface is a rigid supporting surface, and the ground and wall are preferred as the supporting surface.
2. Connect the device to the 220V power supply, and select the drop method according to the sample: vertical drop or swing impact.

Vertical Impact Test
1. Move the equipment so that the rod holding the steel ball is above the sample, and fine-tune the position of the electromagnet and the vertical steel ball to make the steel ball impact the position where the sample needs to be impacted. Tighten the screws to fix the position of the electromagnet and the steel ball, and fix the braking device on the equipment wheel to prevent the equipment from moving.
2. Lengthen the steel wire rope of the vertical impact steel ball to more than 1.3m, place the steel ball on the electromagnet and press the release button  or 5 of the wireless remote control. The button indicator light is on and the electromagnet is energized to attract the steel ball.
3. Press the up (wireless remote control 3) or down (wireless remote control 4) button, so that the distance between the bottom of the steel ball and the surface of the sample is a height of 1.3m.
4. Press the release button again to make the button bounce or the 6 button of the wireless remote control, the electromagnet is powered off and the steel ball is released, and the steel ball is in free fall to impact the sample.

Oscillating Impact Test
1. Move the equipment so that the oscillating steel ball is in vertical contact with the surface of the sample.
2. Place the steel ball on the electromagnet and press the release button  or 5 of the wireless remote control. The button indicator light is on and the electromagnet is energized to attract the steel ball.

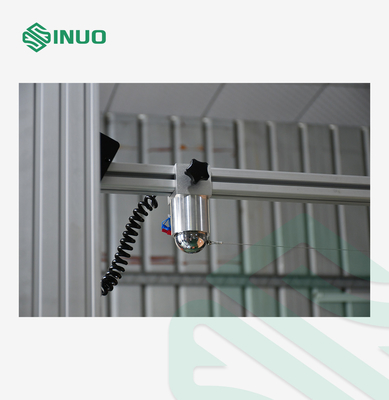

3. Loosen the torx screw on the electromagnet, move it to the left so that the wire rope of the steel ball is in a straight state, and lock the torx screw on the electromagnet, as shown in the figure below.
4. Press the up (wireless remote 3) or down (wireless remote 4) button to determine the impact point of the sample.
5. Press the release button or the 6 button of the wireless remote control again to release the steel ball. The steel ball impacts the sample in a free fall motion. After the impact, grab the steel ball by hand to prevent secondary impact.

Check the sample
After the test, check the impact position of the sample, and judge whether the sample is qualified according to the standard requirements.





UL 2594 Electric Vehicle Supply Equipment 50mm Steel Ball Impact Test Device 1
