IPX8 Continuous Immersion Test Chamber For Electric Vehicle Parts

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4411-30M-Ф600

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 5 sets/month
Contact Now

Detail Information

Applied Standard: IEC 60529 IP Code: IPX8
Chamber Diameter: 600mm Chamber Height: 1200mm
Hanging Basket Bearing Capacity: 10 Kg Stainless Steel Chamber Thickness: 3mm
Suggest Test Water Depth Range: 0-30M Pressure Adjustment Range: 0-3kg/cm²
High Light:

Continuous Immersion Test Chamber

,

IPX8 Continuous Immersion Test Chamber

Product Description

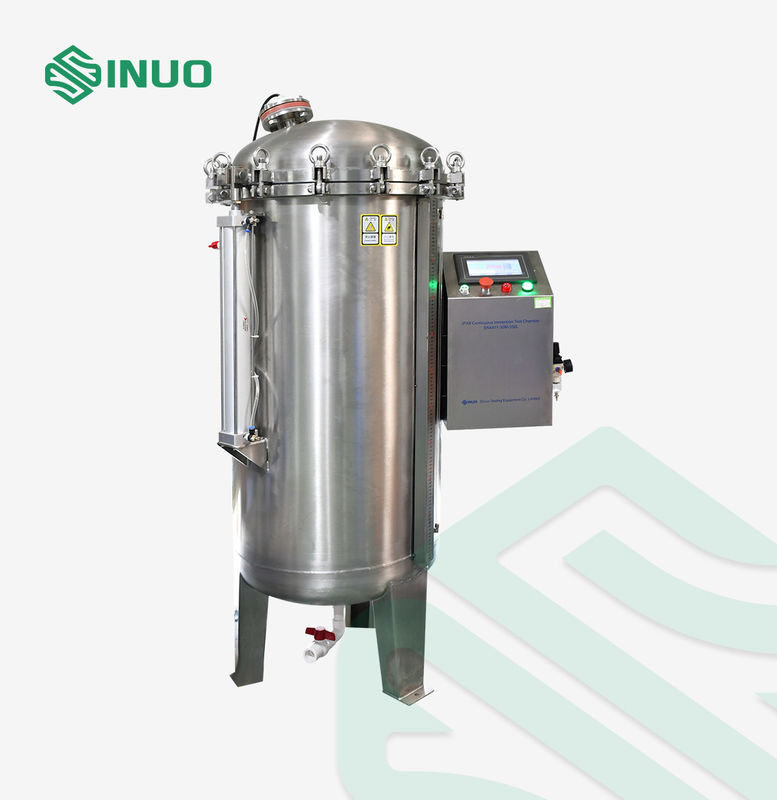

Electrical Vehicle Parts IPX8 Continuous Immersion Test Chamber



Complied Standards & Clauses for IPX8 Continuous Immersion Test Chamber




IEC 60529 -2013 “Degrees of protection provided by enclosure (IP code)”



Technical Parameters for IPX8 Continuous Immersion Test Chamber




Chamber inner diameter Ф600mm
Chamber height 1200mm
External dimensions of the chamber Approx. 750mm outer diameter*1950mm height
Hanging basket bearing capacity 10 kg
Stainless steel chamber thickness 3mm
Time control 1~99H59M59S
Pressure control and display mode Touch screen display, the pressure can be set and displayed on the touch screen
Suggest test water depth range 0-30M
Test pressure adjustment range Atmospheric pressure-3kg/cm²
Safety valve exhaust pressure 3.5 kg/cm²
Maximum ultimate pressure 4 kg/cm²
Pressure gauge adjustment range Atmospheric pressure~500Kap
Pressure protection Pressure relief valve protection
Air release method After the test is completed, the air is automatically deflated

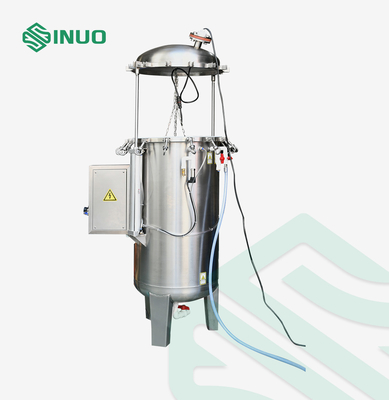

Opening method The cylinder automatically lifts and closes the cover

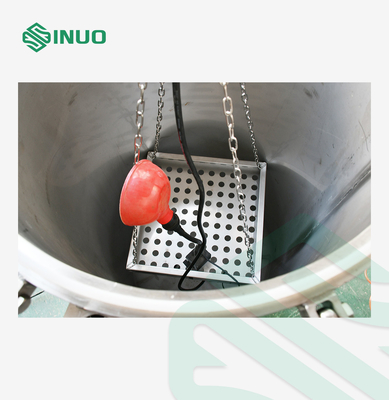

Sample fixing method The bottom of the chamber is equipped with a sample tray, and the upper edge of the chamber is equipped with the sample hook

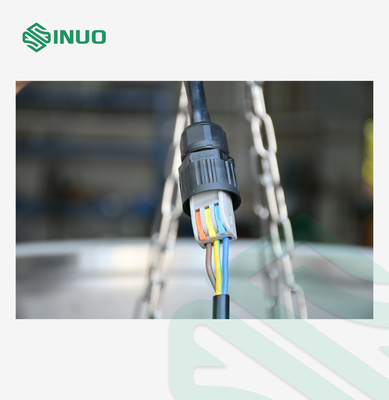

Power supply terminals for sample

With the terminals or connecting power supply for sample, has 15A bearing capacity. Note: the external power supply device should be prepared by client.

The terminals are showing as following:

IPX8 Continuous Immersion Test Chamber For Electric Vehicle Parts 0

Pressurized system External air source (the buyer should provide more than 5kg air source)
Water level display Scale and water level pipe
Lifting device Portable stainless steel hanging basket
Control System Touch screen control
Chamber material 304 stainless steel
Features The IPX8 continuous immersion test chamber is equipped with a pressure protection anti-riot device and a drainage pressure relief device
Safety protection system Power overload, short circuit protection, alarm sound prompt
Use Conditions
Inlet and drain pipe diameters After the user has planned the placement of the equipment, install the air switch next to it in advance, and install the water inlet pipe and drain pipe below the air switch. Water inlet pipe (4” pipes, there must be valves), drain pipes (4” pipes, should be installed on the ground)
Power requirements

AC220-240V, 50Hz±10%; Power: 2KW;

Make a 32A air switch separately, the air switch must have wiring terminals, and the power cord should be ≥2.5 square meters.

Environmental conditions

Temperature: 15℃~35℃;

Relative temperature: 25%RH~75%RH;

Atmospheric pressure: 86kPa~106kPa

The water depth that pressure gauge value corresponds to

0.1MPa=1Kg/cm²=10M;

0.2MPa=2Kg/cm²=20M;

0.3MPa=3Kg/cm²=30M;

0.4MPa=4Kg/cm²=40M;

Water level pipe The water level gauge on the equipment is to see the height of the water level pipe, which is convenient to know the water level in the chamber.


Equipment Features for IPX8 Continuous Immersion Test Chamber




1. The pressure vessel is made of 304 stainless-steel, with high-precision overall sub-arc welding and good pressure resistance.



2. The outside of the tank is connected with a transparent tube, and attached with a stainless-steel ruler, so that the internal water level can be clearly observed.



3. Special silicone sealing ring, good elasticity, not easy to be damaged.



4. The tank lid above the tank body is equipped with a power supply connector for sample.



5. The tank is equipped with safety valve, which automatically releases the pressure when it exceeds the rated pressure to prevent improper operation by the operator and the set pressure is too high.



6. Electric control components and pneumatic components are branded, to ensure the stability and service life of the equipment.



7. The test time can be set to: 99H59M59S. When the test time is reached, the pressure can be automatically stopped and the air in the tank can be automatically exhausted. The operator can open the tank lid to take out the test sample.



8. Pressure display: The pressure can be preset and displayed on the touch screen, and the internal pressure can be automatically stabilized. Pressure display accuracy: 0.01 KG/CM².



9. Water inlet is installed at the up of the tank body and water outlet is installed at the bottom of the tank.



10. Built-in sample power terminal



Questions & Answers for IPX8 Continuous Immersion Test Chamber



Q: What is the test chamber used for?


A: This IPX8 continuous immersion test chamber IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)”. It is used to verify the electric vehicle parts, protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under continuous immersion in water at degree IPX8.



Q: What is the principle of the test chamber?


A: By controlling the depth of the sample in the water to achieve a standard equivalent pressure, and simulating water depth pressure by applying a certain pressure of air pressure, to produce water pressure across the entire surface of the specimen enclosure. The water depth range simulation of IPX8 is harsher than IPX7.
