UL 2594 Clause 8.2 Figure 6 Articulated Probe Nylon And Metal Material

UL 2594 Clause 8.2 Figure 6 Articulated Probe Nylon And Metal Material

Brand Name:	Sinuo
Model Number:	SN2210-35
MOQ:	1
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	100 pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

UL 2594

Applied Clause:

Clause 8.2

Applied Figure:

Figure 6

Probe Feature:

Joint Probe

Test Sample:

Live/mechanical Parts

Probe Material:

Nylon And Metal

Test Function:

Enclosure Protection

Package Type:

Aluminium Box

Packaging Details:

Aluminium box and carton box

Supply Ability:

100 pcs/month

Highlight:

Figure 6 Articulated Probe

Clause 8.2 Articulated Probe

Nylon Articulated Probe

Product Description

UL 2594 Clause 8.2 Figure 6 Articulate Probe

Equipment Overview for UL 2594 Clause 8.2 Figure 6 Articulate Probe

Standard:UL 2594 clause 8.2 figure 6.

Application:It is widely used in the enclosure protection test of the electrical equipment.

Test sample: Easily accessible enclosure live parts or mechanical parts.

Feature: Nylon handle + probe, it is manufactured according to the standard figure.

Technical Parameters for UL 2594 Clause 8.2 Figure 6 Articulate Probe

Probe material	Stainless steel
Handle material	Nylon
Applied force	Without built-in force, should work with a force gauge
Applied standards	UL 2594 Clause 8.2 Figure 6

Description of Relevant Standards for UL 2594 Clause 8.2 Figure 6 Articulate Probe

8 Protection of Users- Accessibility and User Servicing

8.1 General

8.1.1 The requirements in this section apply to parts that are accessible to the user. For protection of servicepersonne requirements, refer to Protection of Service Personnel, 32.

8.2 Accessibility

8.2.1 To reduce the risk of unintentional contact that results in electric shock from an uninsulated live part or film-coated wire, an opening in an enclosure shall comply with either:

a)For anopeningthat has a minor dimension less than 25.4 mm (1 inch). such a part or wire shall not be contacted by the probe illustrated in Figure 6.or

b)Foran opening that has a minor dimension of 25.4 mm (1 inch) or more, such a part or wire shall be spaced from the opening as specified in Table 8.

Table 8

Minimum required distance from an opening to a part that involves a risk of electric shock
Minor dimension of opening ^{a, b}		Minimum distance from opening to part^b
mm	inches	mm	inches
25.4	(1)	165.0	(6-1/2)
31.8	(1-1/4)	190.0	(7-1/2)
38.1	(1-1/2)	318.0	(12-1/2)
47.6	(1-7/8)	394.0	(15-1/2)
54.0	(2-1/8)	444.0	(17-1/2)
c		762.0	(30)
^a See 8.2.4 ^b Between 19.1 and 54 mm (3/4 and 2-1/8 inches), interpolation is to be used to determine a value between values specified in the table. ^c More than 54 mm (2-1/8 inches), and not more than 152.0 mm (6 inches).

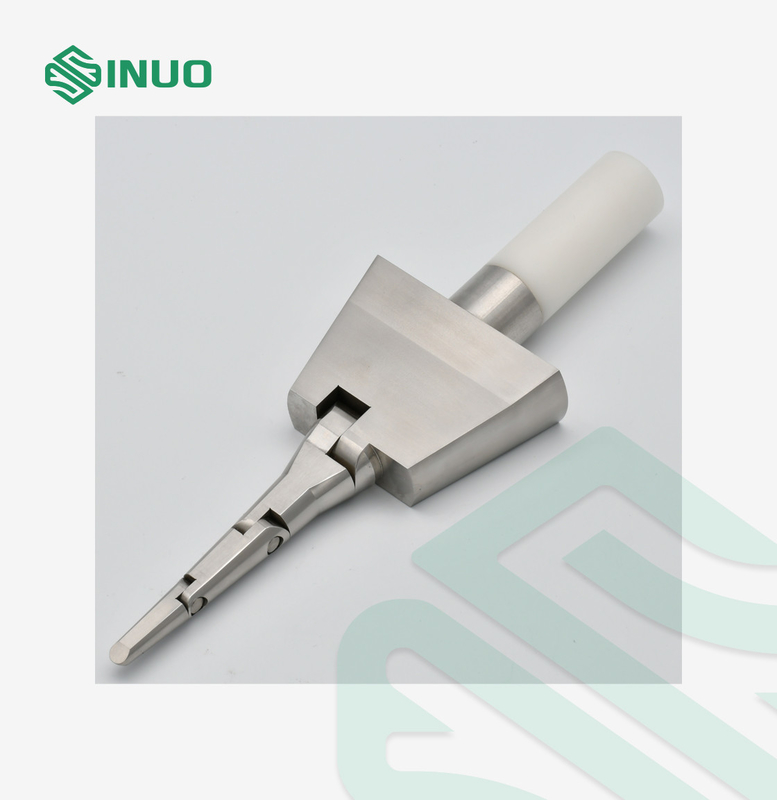

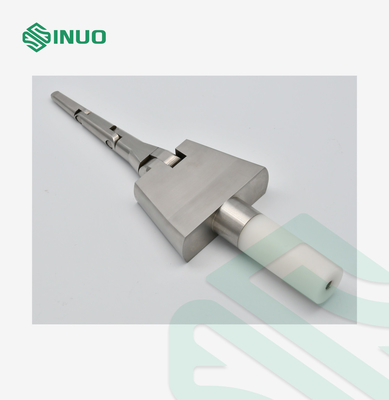

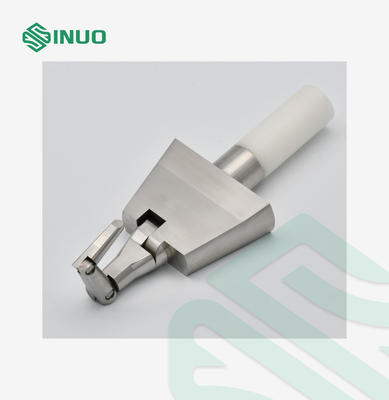

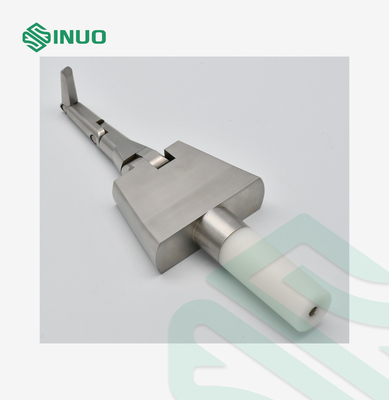

Pictures for UL 2594 Clause 8.2 Figure 6 Articulate Probe
