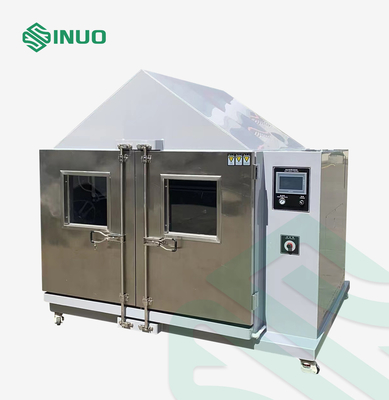

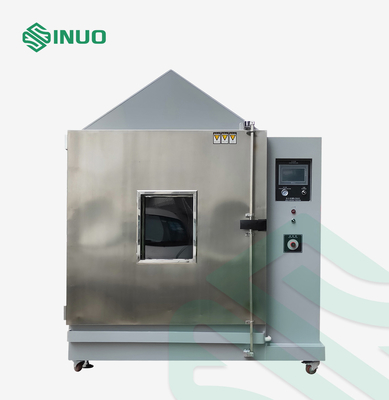

IEC 60068-2-52 Walk-In Compound Salt Spray Environmental Test Chamber
Complied Standards & Clauses
IEC 60068-2-52:2017 Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic (sodium chloride solution)
ISO 12405-3: 2014 (Electrically propelled road vehicles-Test specification for lithium-ion traction battery packs and system—Part 3: Safety performance requirements)
IEC 60068-2-11: 1981 (Basic environmental testing procedures—Part 2: tests—Test Ka: Salt mist, IDT), and etc.
Equipment Overview
This equipment is mainly used for the salt spray corrosion resistance of large components, automotive power battery packs, automotive assemblies and parts, etc. It can simulate the marine climate and evaluate the anti-salt spray corrosion performance of automobile assemblies and parts and their protective layers.
System composition:
1) The equipment is mainly composed of structural systems.
2) Air conditioning system, refrigeration system; heating/humidification/dehumidification system.
3) Salt spray simulation system.
4) Central control system.
Technical Parameters
| Studio Size | 2000×1800×3000 mm(W×H×D) |
| Dimensions (Approx.) | Approx.2200×3000×4500 mm(W×H×D) Including 120-degree spire (subject to actual size) |
| Temperature Range | 10～+70℃ (adjustable) |
| Temperature Fluctuation | ±0.5℃ (when no load) |
| Temperature Uniformity | ±2℃ (when no load) |
| Heating and Cooling Rate |
Temperature rise: ≧1°C/min, non-linear Cooling: ≧0.5℃/min, non-linear |
| Humidity Range | 20%～98%R.H (50～90℃ humidity adjustable) |
| Humidity Deviation |
±3%R.H(>75%R.H) ±5%R.H(≤75%R.H) |
| Salt Spray Deposition | 1～3ml/(h.80cm2) |
| Test Time | 0～999 H/M/S (adjustable) |
| Spray Method | Intermittent, continuous |
| Meet the Standards |
DO160 E/F/G salt spray test requirements IEC60068-2-11:1981 Salt spray test method; IEC 60068-2-52:2017 Sodium chloride alternating salt spray test method; IEC6008-2-78-2001 Test cab: constant damp heat test method; ISO9227-2017 Artificial atmosphere corrosion test salt spray test; |
| Supply Power | 380V±10%V (Three-phase five-wire, make an 80A air switch separately, the air switch must have wiring terminals, and the power cord should be more than 10 square meters) |
| Pollution, Electromagnetic Radiation | Must meet relevant standards |
Structure Features

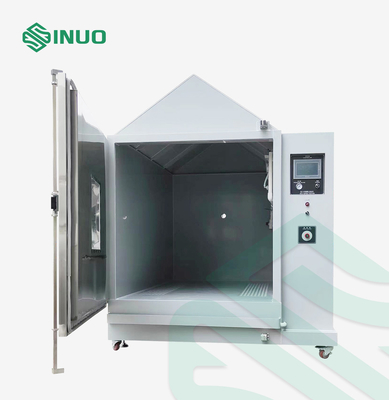

| Structure | Adopt split structure. That is, the studio, refrigeration unit, salt spray unit, salt water tank, and electric control box are placed independently for on-site assembly. Air-conditioning unit and salt spray unit are set in the working room; the air-conditioning unit is composed of forced air circulation system, refrigeration system, heating system, humidification/dehumidification system, etc.; baffle type device is set in the salt spray unit, and constant temperature heating device is set at the bottom. |
| Outer Wall Material | High-quality SUS304 stainless steel, the surface is electrostatically sprayed, and the material thickness is 0.8mm |
| Endosomal Material |
Adopt acid and alkali resistant material SUS316L# stainless steel. Material thickness 1.2mm
|
| Insulation | Adopt rigid polyurethane foam insulation layer, thickness 100mm. |
| Top of The Studio | In order to prevent the condensed water from the top of the studio from dripping directly on the test sample, so set a 120-degree oblique water baffle on the top of the studio. |
| Studio Base Plate | Reinforced base plate, can bear 300KG/m² (even load) |

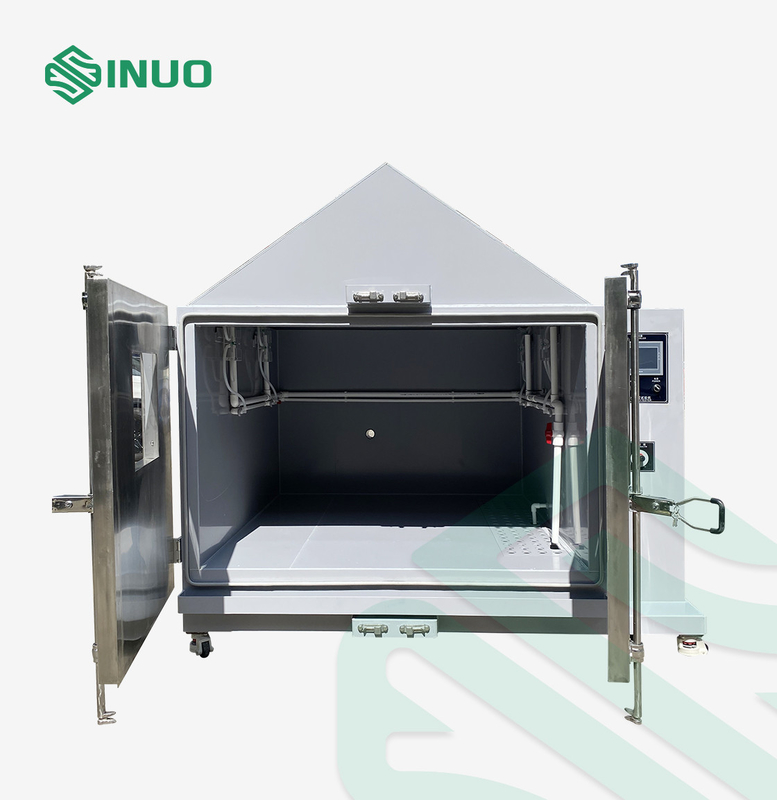

| Door |
The door adopts double door structure; Single door size: width 900 x height 1800mm. The door frame of the two doors are equipped with silicone rubber sealing strips and anti-condensation electric heating devices. |
| Observation Window | There are 2 observation windows on the door, each window has resistive film for heating to achieve defrost function. |
| Test Lead Hole | There is a test hole of φ100mm on the left side of the box, with a special cover. |
| Pressure Balance Device |
Two balance windows are set on the top of the studio to keep the studio and the outside air pressure balanced.
|
| Guide Rail and Limit Device | The left and right sides of the test box are provided with guiding function tracks, and the bottom of the rear end is provided with a limit function device. |
| Cart | Load cart |
| Lighting | The top of the studio is equipped with LED strong lighting, which is projected into the studio through the light-transmitting window on the top of the box, independent switch control. |
| Condensate Outlet | There are lead-out holes for the condensed water in the air-conditioning room and the condensed water of the unit. |
| Overflow Hole | There is condensed water drainage ditch around the studio. After the condensed water is collected in the drainage ditch, it is discharged from the studio to the waste water treatment area through the overflow hole, (the pipeline from the equipment to the waste water treatment area is the responsibility of the user) |
