Electric Vehicle IPX1-8 Waterproof Comprehensive Test System

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4418

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Export package
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1sets/month
Contact Now

Detail Information

Applied Standard: IEC 62196-1Ed.4CDV:2020 Applied Clauses: Clause 20.2
IPX1/2 Drip Pinhole Diameter: Φ 0.4 Mm IPX1/2 Drip Hole Spacing: 20×20mm
IPX3 Pinhole Distribution: 120° IPX4 Pinhole Distribution: 180°
IPX5 Water Spray Nozzle: Ф6.3mm IPX6 Water Spray Nozzle: Ф12.5mm
IPX7 Immersion Tank: 500L IPX8 Pressure Water Box: Ф600×1200mm
High Light:

IPX1-8 Waterproof Comprehensive Test System

,

Electric Vehicle Waterproof Comprehensive Test System

Product Description





Electric Vehicle IPX1-8 Waterproof Comprehensive Test System



Complied Standards & Clauses




IEC 62196-1Ed.4CDV:2020 clause 20.2.

IEC60598-1:2014 Luminaries-Part1: General requirements and tests

IEC60529:2013 Degrees of protection provided by enclosure (IP code) IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8.



Technical Parameters




1. Technical parameters of intelligent electrical control cabinet and immersion tank
Electrical control cabinet

◆ Flow detection: Feedback of the flow signal of the turbine electronic flowmeter.

◆ Flow setting: Control cabinet screen setting.

◆ Controller: Mitsubishi PLC.

◆ Man-machine interface: 7 inches, color touch screen.

◆ Control function: constant current water supply, constant pressure water supply, vertical rain action control, oscillating pipe rain action control, water spray action control, stage action control, test time control.

◆ Protection function: leakage protection, overload protection, short circuit protection.

Scope of application Suitable for IPX1-6 waterproof test water supply and control, IPX7 water immersion test, IPX8 pressure water tightness test
Water supply method Constant flow water supply, constant pressure water supply
Water supply control process After the user sets the flow or pressure value on the touch screen, the electronic flow meter or digital pressure gauge monitors the current value in real time. Read into the PLC through data conversion. Then adjust the pump speed through the frequency converter. The system has two water supply channels, a large flow branch and a small flow branch.
High traffic branch

◆ Applied to IPX5/6 strong water spray test;

◆ Flow range: 10-100L/min;

◆ Flow accuracy: ±0.5L/min;

◆ Flow meter: worm gear electronic flow meter;

◆ Water pump: stainless steel off-water pump;

Small traffic shunt

◆ Applied to IPX1/2/3/4 waterproof;

◆ Flow range: 0.6-6L/min;

◆ Flow accuracy: ±5%L/min;

◆ Flow meter: worm gear electronic flow meter;

◆ Water pump: stainless steel centrifugal water pump;

◆ Pressure range: 0.1-3Kg/cm2;

◆ Pressure digital display, using digital pressure gauge

Immersion Tank/Storage Tank

◆ It can be used for IPX1-6 test water supply, IPX7 water immersion, IPX8 pressure water tightness test;

◆ Volume: 500L;

◆ Cabinet size: W600mmXD650mmXH1400mm.

◆ Observation window: transparent plexiglass window;

◆ Window size: W200mmXH1250mm;

◆ Depth scale: stainless steel scale;

◆ Ruler length: 1300mm, precision 1mm.

◆ Liquid level control: float switch + overflow pipe

Water supply pipe The water supply of the equipment adopts PVC rubber hose, which is distributed to each equipment according to the site layout. It is controlled separately by the electromagnetic water valve at each equipment. The water supply pipe is equipped with a drain valve, and the accumulated water in the water pipe is automatically removed after the test is completed.
Filter Stainless steel shell, fine filter element.
2. Technical parameters of IPX1/2 vertical drip mechanism
Drip test area WD=1000×1000mm, other sizes can be customized
Drip height The distance between the needle and the sample is 200mm automatically measured by the infrared sensor
Drip speed/water flow 1+0.5 0mm/min or 3+0.5 0mm/min can be switched, using digital control rainfall technology
Drip pinhole diameter Φ0.4mm
Drip hole spacing 20mm×20mm
Drip tank lifting Driven by motor, 1100-1800mm adjustable, screw guide rail ensures stable lifting and self-locking
Test time 0-99999.9S, can be preset
3. Technical parameters of IPX3/4 oscillating pipe rain mechanism
Oscillating tube specification Equipped with one oscillating tube of R1000mm, made of stainless steel
Rain pinhole aperture Φ0.4mm
Pinhole distribution Angle IPX3: 120°; IPX4: 180°, hole spacing 50mm
IPX3/4 switching Switching between blocked needles and through-hole needles enables different tests from IPX3 to IPX4 without changing the oscillating tube
Oscillating angle IPX3: 120° (±60°); IPX4: 350° (±175°)
Oscillating speed IPX3: 4s/time (2×120°);
Oscillating pipe rain water flow IPX4: 12s/time (2×350°);
Waterproof turntable 0.6-6L/min adjustable, using digital control rainfall technology
Test time Diameter: Φ600mm, can be tilted 15°, rotate speed 1r/min, equipped with liftable support frame, load-bearing ≤ 50kg
4. Technical parameters of IPX3/4 hand-held spray mechanism
Ipx3/4 spray head parameters Outer diameter Ф102mm, spherical diameter SФ75.5mm, 1 middle hole, 24 holes in the inner two circles with an angle of 30°, 96 holes in the outer four circles with an angle of 15°, a total of 121 holes, diameter Ф0.5mm, made of brass
Water flow 10L/min±5%, touch screen setting, automatic frequency conversion control, digital display flow value
Pressure 50~150Kpa, pressure gauge range 0~0.16Mpa
Flapper detachable
Water direction The bracket can adjust the spraying angle, sharing a bracket with the water spray mechanism
Test time 0~99999.9S, can be preset
5. Technical parameters of IPX5/6 hand-held water spray mechanism
IPX5/6 water spray nozzle parameters IPX5:Ф6.3mm; IPX6:Ф12.5mm
Spray flow IPX5: 12.5±0.625L/min; IPX6: 100±5 L/min, touch screen setting, automatic frequency conversion control, digital display flow value
Spray distance 2.8m (the distance between the nozzle and the center of the turntable, the standard requires 2.5-3m)
Spray direction The bracket can adjust the spray angle
Fixed method The spray head and water spray nozzle are mechanically fixed on the bracket
Pressure gauge 0~0.16MPa, can display
Test time 0~99999.9S, can be preset
6. Technical parameters of IPX7 immersion tank
Water tank volume and size Inner box WDH=600×650mm×1400mm, 500L
Maximum test water depth 1200mm, with scale display, the minimum scale is 1mm
Water depth adjustment method Turn on the touch screen and observe the water level scale
Basket size Stainless steel hanging basket WD=500×500mm
Lift control Electric hoist controls the lifting of the hanging basket
Test time Controlled by customer
Observation window Tempered machine glass window, window size: W200mmXH1200mm
7. Technical parameters of IPX8 pressure water tightness testing mechanism
Operation method Preset parameters, automatic pressurization, and automatic pressure release when the time is reached
Tank size Inner box Ф600×1200mm
Water depth test range 0-50 meters
Pressure adjustment range 0-0.5MPa, precision 0.001MPa
Pressure control method Pressurized by water pressure, set pressure on the touch screen, automatic frequency conversion adjustment, digital display pressure value display
Safety valve discharge pressure 0.55MPa
Test time 0-99999.9S can be set
Safety protection Phase sequence protection, leakage protection, water shortage protection, abnormal protection, safety valve overpressure protection




Equipment Overview




Samples and Limits: Electrical and electronic products, automobile and motorcycle parts, communication products, household appliances, outdoor lighting and signal devices, etc.



Test purpose: To test whether electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps can guarantee the good performance of equipment and components in the environment of dripping, pouring, spraying, short-term or long-term deep-water immersion. The purpose is to verify the shell protection performance of the product in IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 levels of water dripping, water spraying, water spraying or short-term immersion



Test Principle: By controlling the water supply flow to ensure that dripping, showering or spraying water reaches the standard required speed. The standard equivalent pressure is achieved by controlling the depth of the sample in the water and the immersion time. Enables the test equipment to generate uniform water flow or pressure over the entire surface of the specimen enclosure



Equipment structure and characteristics: The device is composed of a dripping mechanism, an oscillating pipe raining mechanism, a water spraying mechanism, a water immersion tank, a pressure water tank, a turntable and an electrical control cabinet. The drip tank bracket adopts the wall-mounted type, which is automatically raised and lowered by the motor control, and has the function of anti-falling. There is one set of floor support frame for installing oscillating pipe, the oscillating pipe is driven by a motor to oscillating left and right. The water spray mechanism is installed on the bracket. The immersion tank and together with the electrical control cabinet are made as a whole, and the hanging basket carrying the sample is lifted and lowered by the electric hoist. The pressure water tank is placed separately and connected with the control cabinet and water tank. Equipped with a loading turntable with adjustable speed the turntable can be tilted by 15° during IPX2 test. Equipped with a water filter cleaning device to prevent pinhole clogging. This system is an open structure.



Use environment: Power supply: AC380V±5%/50Hz, 5KW.

Place of use: temperature 15-35°C, relative humidity 25%-75%, atmospheric pressure 86-106kpa (860mbar-1060mbar). The ground needs to be flat. There is lighting, a waterproof leakage switch (or socket), good water inlet and drainage functions.

Use water source: clear water or tap water without impurities, and clean the filter device with water.



Details:

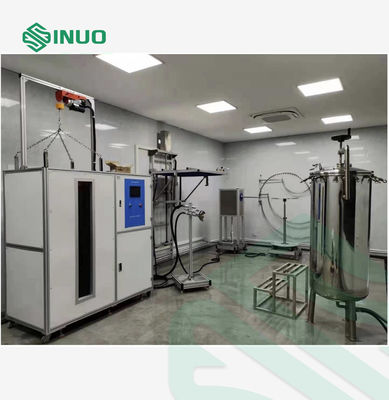

Electric Vehicle IPX1-8 Waterproof Comprehensive Test System 0
