IEC 62196 Fig12 Electric Vehicle Charging Gun Terminal Testing Equipment

Brand Name:	Sinuo
Model Number:	SN1012
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	10 Sets / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard:

IEC 62196-1Ed.4CDV 2020

Test Rate:

(10 ± 2) R/min Or (9 ± 1) R/min

Power Supply:

Can Be Customized

Test Station:

Single Station

Gyration Diameter:

75/76mm

Load Weight:

0.4-70.3Kg

Test Height:

260-660mm

Casing Diameter:

6.5-44.5mm

Packaging Details:

Plywood Case

Supply Ability:

10 Sets / Month

Highlight:

Vehicle Charging Gun Terminal Testing Equipment

IEC 62196 Gun Terminal Testing Equipment

Product Description

IEC 62196 Fig12 Electric Vehicle Charging Gun Terminal Testing Equipment

Complied Standards & Clauses

This testing machine conforms to IEC 62196-1:2020 clause 13.3.1 fig12, table 3, and UL486A-B:2009clause 9.3.2.1,clause 9.3.2.3,clause 9.3.2.4 and table 26 and figure 6 etc.

Technical Parameters

Parameter Name	Parameter Data
Power Supply	According to customer requirements
Test Station	Single
Test Rate	(10 ± 2) r/min or (9 ± 1) r/min, adjustable
Diameter of Gyration	75 / 76mm
Test Times	1-99min59s
Load Weight	0.4-70.3Kg
Test Height	260-660mm adjustable
Diameter of Bushing	6.5mm, 9.5mm, 13mm, 14.5mm, 15.9mm, 19.1mm, 22.2mm, 25.4mm, 28.6mm, 31.8mm, 38.1mm, 44.5mm
Equipment Dimensions & Weight	L 600mm* W 600mm * H1680mm, approx. 350KG
Height adjustment mode	Manual adjustment, with screw slide lifting mechanism
Supporting mechanism	Weight tray with force value sensor, touch screen monitoring force value, can achieve 0-965N tension 1min test

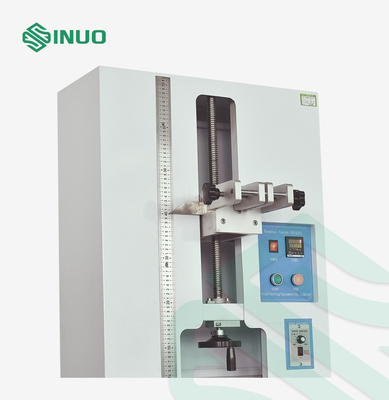

IEC 62196 Fig12 Electric Vehicle Charging Gun Terminal Testing Equipment 0

Equipment Overview

This device tests whether threaded terminals and unthreaded terminals can withstand the mechanism stress during normal use. It is mainly used to judge whether the design and structure of the thread clamping terminal meet the requirements of the clamping wire without excessive damage.

It adopts guide screw structure. When used, the number of tests can be preset first, and the set value will automatically stop, and accompanied by sound alarm signal.

The number of tests can be preset before the test. When the preset number of tests is reached, the testing machine automatically stops and an alarm is issued.

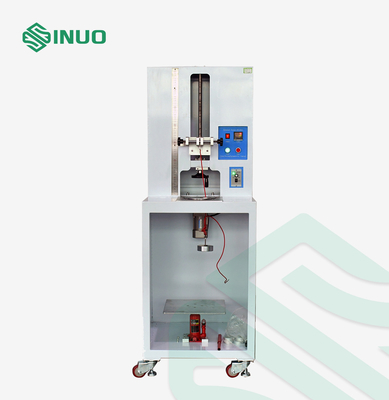

IEC 62196 Fig12 Electric Vehicle Charging Gun Terminal Testing Equipment 1

Questions and Answers

Q: What is the diameter of bushing hole for this device?
A: It is 6.5mm, 9.5mm, 13mm, 14.5mm, 15.9mm, 19.1mm, 22.2mm, 25.4mm, 28.6mm, 31.8mm, 38.1mm, 44.5mm (details refer to following table 3).

Q: What is the Rate of Testing for this device?
A: It is (10±2) r/min.

Details:

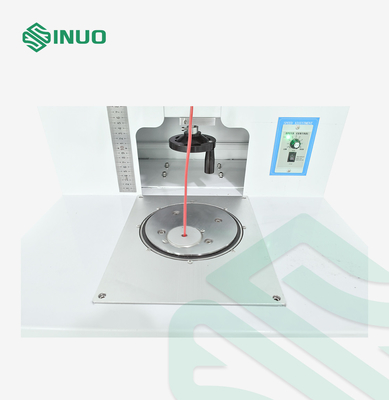

IEC 62196 Fig12 Electric Vehicle Charging Gun Terminal Testing Equipment 2

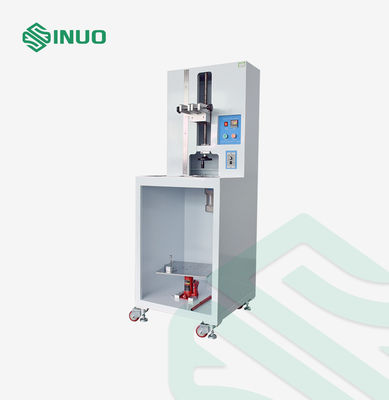

IEC 62196 Fig12 Electric Vehicle Charging Gun Terminal Testing Equipment 3
