IEC60529 EV Charging Station IPX3-X6 Waterproof Rating Testing System

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4415EV

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1 sets/month
Contact Now

Detail Information

Complied Standard: IEC 60529 And Etc Handle Material: SUS304 Stainless Steel
Nozzle Spherical Diameter: S ф 75.5mm IPX3-4 Hole Diameter: Ø0.5mm
IPX3-4 Holes Quantity: 121 Nozzle Material: Brass
IPX5 Aperture: ф6.3mm IPX6 Aperture: ф12.5mm
High Light:

Waterproof Rating Testing System

,

X6 Waterproof Rating Testing System

Product Description



IEC60529 EV Charging Station IPX3-X6 Waterproof Rating Testing System




Complied Standards & Clauses for EV Charging Station IPX3-X6 Waterproof Rating Testing System

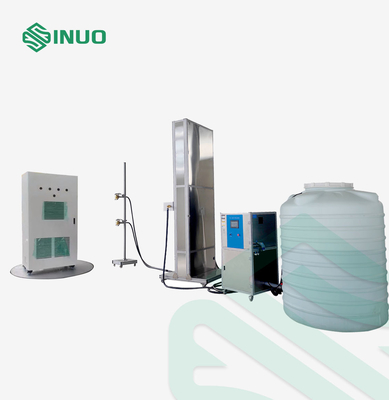

IP waterproof grade testing machine is designed and manufactured according to IEC60529-2013, "shell protection grade (IP code)" and other standards. It is used for IPX3, IPX4, IPX5 and IPX6 waterproof grade detection of charging station, outdoor chassis and power battery. The complete set of equipment is composed of sprinkler test spray nozzle (IPX3-4), strong sprinkler test device nozzle (IPX5-6), electric lifting and swinging Angle bracket of sprinkler head, fixed bracket of sprinkler head, sample placement turntable, intelligent water supply system, comprehensive control system, etc.

Product Technical Advantages for EV Charging Station IPX3-X6 Waterproof Rating Testing System




NO. Technical Features Description of technological advancement
1 Water supply system digital accurate water supply, automatic frequency conversion regulation mode 1. the water supply device adopts the worm gear electronic flow meter, the reading is convenient, fast, accurate and stable flow. 2, automatic frequency conversion to adjust the water flow technology, just click the waterproof test level in the interface, input the test flow, you can automatically meet the corresponding IP water flow requirements, do not need to adjust through the ball valve.
2 Adopt electric swing Angle multiple sprinkler nozzle at the same time to spray water Using electric swing Angle multiple sprinkler head at the same time, with the rotation of the turntable, can cover the product all-round water spray.
3 Control adopts touch screen +PLC control mode Test parameters such as flow rate and swing Angle can be set directly on the touch screen without adjusting mechanical parts.
It has good repeatability, that is, once the parameters are debug and measured, they can be kept accurate each time.




Technical Parameters for EV Charging Station IPX3-X6 Waterproof Rating Testing System




(1) Flower sprinkler test device (IPX3-X4)

1. It is suitable for IPX3-X4 test of large and heavy samples, instead of swinging tube test.

2. Hole diameter: Ø0.5mm.

3. Number of holes: 121.

4. Middle hole 1. The Angle of 24 holes in the inner two circles is 30°, and the Angle of 96 holes in the outer four circles is 15°.

5. Nozzle Spherical Diameter: Sф75.5mm.

6. Nozzle Material: brass.

7. Handle Material: SUS304 stainless steel.

8, Pressure gauge: stainless steel pointer gauge.

9. SUS304 stainless steel baffle, stainless steel balance hammer.

10. Test time: 0-9999S(adjustable).

11. Water pressure: about 50-150kpa.

12. Flow: 10 L/min±0.5 L/min.

13. Shower head quantity: with 2.

14. With a movable shower head bracket, the height of 2800 mm.

IEC60529 EV Charging Station IPX3-X6 Waterproof Rating Testing System 0

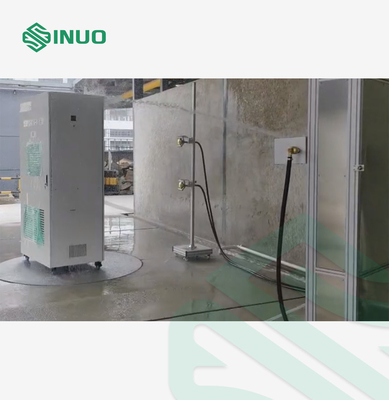

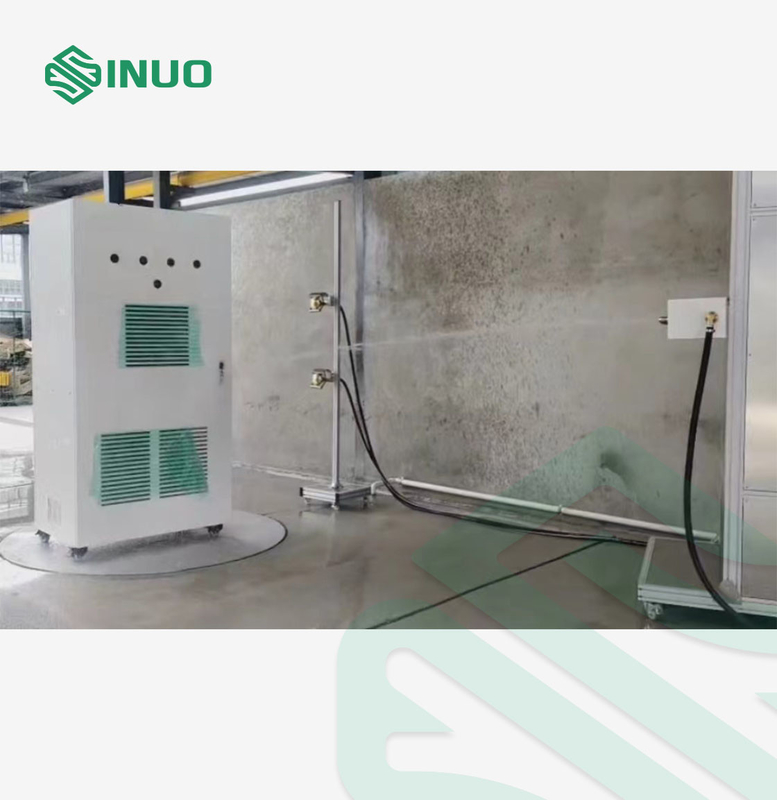

(2) Strong water spray test device (IPX5-X6)

1. Suitable for product IPX5-X6 test.

2. Aperture: ф6.3mm (IPX5), ф12.5mm (IPX6).

3, Stainless steel material.

4. Water flow: 12.5±0.625L/min(IPX5), 100±5L/min(IPX5).

5. Test time: 0-99999S(can be set).

6. Distance between nozzle and shell: 2.5-3m(controlled by test personnel).

7. Number of sprinklers: 4 IPX5 sprinklers, lined up, 1 IPX6 sprinklers.

8. Installation bracket of electric sprinkler head: the swing Angle of water spray can be set and adjusted by touch screen, and the lifting height can be adjusted by electric. The total height of the bracket is 2500mm.

9. The bottom is equipped with 4 casters, movable.

IEC60529 EV Charging Station IPX3-X6 Waterproof Rating Testing System 1

IEC60529 EV Charging Station IPX3-X6 Waterproof Rating Testing System 2



(3) Rotatable stage

1. Turntable diameter: Ø2000mm.

2. rotary speed: 1~3 RPM can be set.

3. Rotation action during the test: continuous clockwise rotation.

4. Rotary table: industrial aluminum plate table.

6. Body material: industrial alloy aluminum profile.

7. Positive and reverse control and rotation are controlled by the control cabinet.

8. Drive: motor + turbine reducer.

9. Maximum load: 1 ton.

IEC60529 EV Charging Station IPX3-X6 Waterproof Rating Testing System 3


Control System for EV Charging Station IPX3-X6 Waterproof Rating Testing System

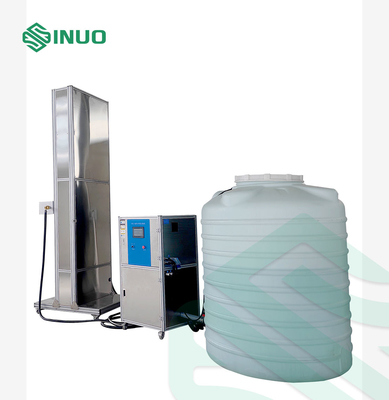

Intelligent water supply system

1. Flow control: flow meter real-time monitoring, frequency converter control pump speed adjustment, using high-precision turbine flow meter and electronic digital display flow meter intelligent control, select and set the flow on the touch screen.

2. Water supply pump: the south pump multi-stage stainless steel centrifugal pump, flow 0-8m3/h.

3. Body material: industrial alloy aluminum profile +SUS304 sealing plate.

4. Water storage tank: 2 tons of plastic water tank.



Integrated control cabinet

1. Controller: Mitsubishi PLC.

2, Man-machine interface: 7 inch color touch screen.

3. Control functions: spray flow control, stage action control, up and down swing spray action, time control, etc.

4, Protection function: leakage protection, overload protection, short circuit protection, water shortage protection, etc.

5. Power supply: AC380V, 50Hz, 8KW.

IEC60529 EV Charging Station IPX3-X6 Waterproof Rating Testing System 4
