ISO20653 EV Charging Pile IPX1-X2 Vertical Rain Drip Test System




Complied Standards & Clauses for EV Charging Pile IPX1-X2 Vertical Rain Drip Test System




IPX1-X2 Waterproof Rating Tester conforms to the standard requirements of IEC60529-2013, ISO20653:2006 etc.

It is used for IPX1, IPX2 waterproof grade testing of charging pile, cabinet and other products. The complete set of equipment is composed of vertical rain drop test device (IPX1 and IPX2), Tilting rotary stage, intelligent water supply integrated system and operation control cabinet.

Product Technical Advantages for EV Charging Pile IPX1-X2 Vertical Rain Drip Test System




No. Technical Features Description of technological advancement
1 Anti-clogging technology Vertical dripping test device through the method of connecting compressed air, after the completion of the test, blow dry dripping water tank, to prevent needle blockage function.
2 Water supply system digitizes accurate water supply 1. The water supply device adopts worm wheel flow meter (equipped with flow integrator), which is convenient and quick to read, accurate and stable. 2. Automatic frequency conversion to adjust the water flow technology, just click the waterproof test level in the interface, input the test flow, can automatically meet the corresponding IP water flow requirements
3 Control adopts touch screen +PLC control mode Flow rate, time and other test parameters can be set directly on the touch screen, without adjusting mechanical parts.
It has good repeatability, that is, once the parameters are debug and measured, they can be kept accurate each time.




Technical Parameters for EV Charging Pile IPX1-X2 Vertical Rain Drip Test System




(1) Vertical rain drop test device

1. Suitable for product IPX1, IPX2 test.

2. Rain Area: 3000mmX3000mm. (divided into 1000X1000 mm, 9 pieces of rain drops)

3. Water tank: sealed stainless steel water tank.

4. Drip Needle: ¢0.4mm aperture.

5. Drip needle seat: with hexagonal clamp stainless steel needle seat, easy to install, needle seat horizontal plane consistent.

6. Hole spacing: 20mm.

7. Rainfall: 1mm+0.5mm /min, 3mm+0.5mm /min, frequency conversion adjustment automatic control.

8. Drip Height: 200mm (photoelectric beam control).

9. Test Time: 0-9999S can be set.

10. Lifting mode: three-phase motor + T-shaped SUS304 stainless steel double screw synchronous lifting, safe and reliable.

11. Machine Structure: frame type.

12. Lifting distance: lifting from the ground about 1000-2700mm (or required)

13. Prevent plugging function: after the experiment, the compressed air is connected to dry the water in the needle tip of the water tank to prevent plugging.

14. Tilting rotary table: diameter 3000 mm, load bearing ≥1 ton, tilt Angle 15 degrees, speed 1~3 RPM can be set.



(2) Smart water supply system

1. Flow control: the use of high-precision turbine flow meter and electronic digital flow meter intelligent control, each dripper box independent control, divided into 9 sets of flow meter control, can be set in the control touch screen flow.

2. Water supply pump: using multi-stage stainless steel centrifugal pump, divided into 9 pump control.

3. Water supply: 9-way.

4. Body material: industrial alloy aluminum profile.

5. The tap water inlet is equipped with a filter, the filter element can be replaced.

6. The water tank is equipped with a liquid level switch, which can automatically replenish water and control the pump to stop the protection function when the water level is low.



(3) Integrated control cabinet

1. Control: Mitsubishi PLC program control.

2. Operation: 10 inch color touch screen, Chinese and English two language switch.

3. Control functions: vertical rain lifting action control, stage action control, test time control, needle blowing cleaning control, flow control and other functions.

4. Protection function: leakage protection, overload protection, short circuit protection, water shortage protection.

5. Power supply: AC220V, 50Hz, 15KW.

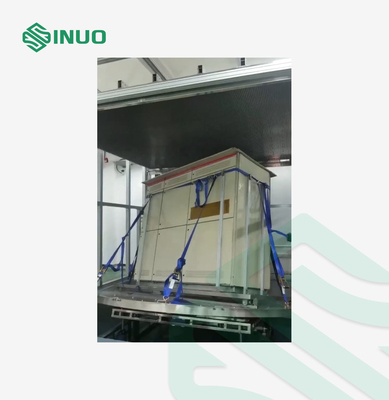

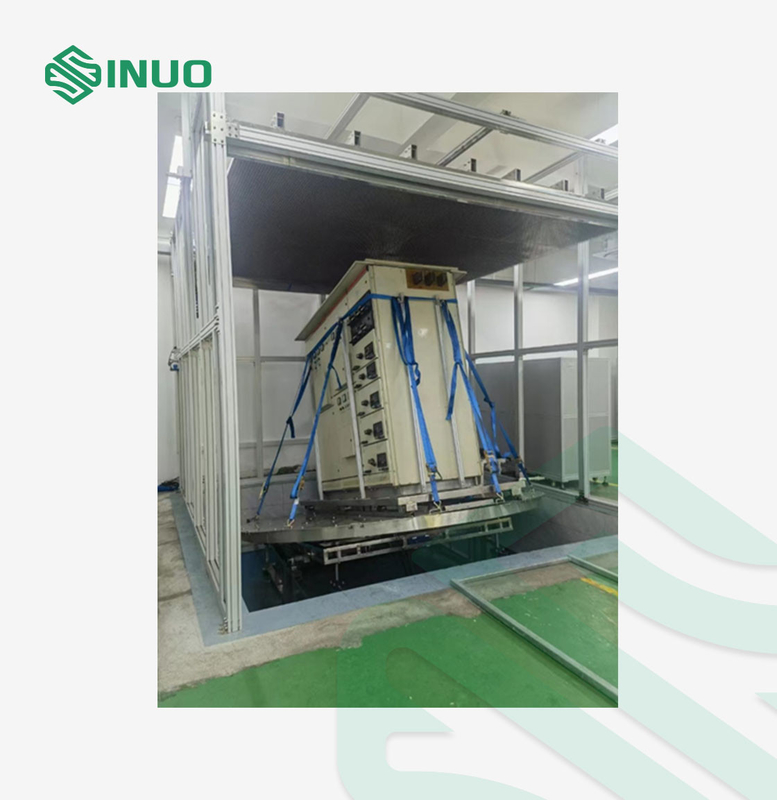

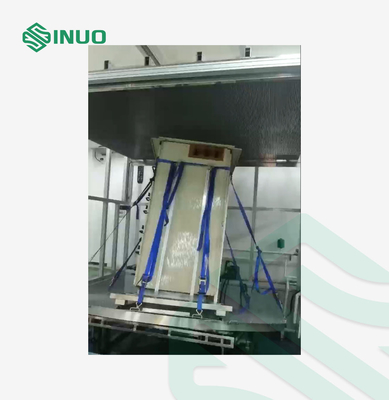

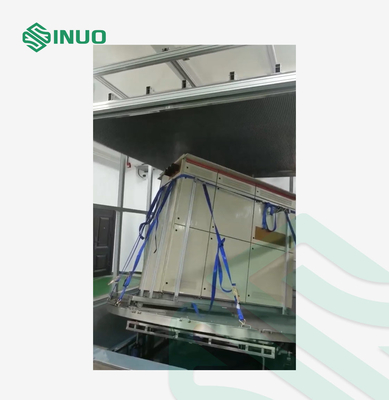

Photo for EV Charging Pile IPX1-X2 Vertical Rain Drip Test System
