ISO 20653 IPX6K9K Waterproof of Electrical Equipment Against Foreign Objects

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4412

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 30 sets/month
Contact Now

Detail Information

Water Jet Flow: 14-16L/MIN, Adjustable Water Spray Pressure: 8MPA-10MPA, Adjustable
IP Code: IPX6K9K Test Water Temperature: 80±5°C
Water Jet Angle: 0°, 30°, 60°, 90° Turntable Diameter: Φ800mm, Φ350mm
Test Duration: At Least 3 Minutes, Adjustable Applied Standard: DIN 40050-9, ISO 20653, IEC 60529
High Light:

ISO 20653 Electrical Equipment

,

Foreign Objects Electrical Equipment

,

IPX6K9K Electrical Equipment

Product Description



ISO 20653 IPX6K9K Waterproof of Electrical Equipment Against Foreign Objects



Complied Standards & Clauses




I.DIN 40050-9: Road vehicles; degrees of protection (IP-code); protection against foreign objects; water and contact; electrical equipment



2. ISO 20653:2013 Road vehicles-Degrees of protection (IP code)- Protection of electrical equipment against foreign objects, water and access



3. IEC 60529: 2013 Degrees of protection provided by enclosures (IP Code)



Function Overview




The main purpose of this equipment is to conduct IPX6K and IPX9K waterproof testing on the protection of road car electrical components, lamps, and electronic and electrical product enclosure. It is a waterproof testing equipment designed to simulate the natural environment or artificial high-pressure car washing. The main components of the equipment should include: high-pressure and high-temperature plunger water pump, three-phase asynchronous motor, and the inlet and outlet pipes of the water pump should be connected with high-pressure hoses; the equipment mainly consists of a control cabinet, water supply system, high-pressure nozzle, nozzle electric adjustment bracket, and sample turntable.



Technical Parameters




IPX9K Technical Parameters



1. The test meets the needs of small enclosure (samples with a maximum size not exceeding 250 mm) and large enclosure (samples with a maximum size greater than or equal to 250 mm). The maximum sample size tested is: Ø1150mmX750mm;



2. Customized according to standard graphics, meeting standard IPX9K requirements;



3. Used for large product nozzle brackets: the bottom can be electrically moved forward and backward, the up and down height can be electrically moved, and the 90-degree downward nozzle can be electrically moved left and right.



Nozzle angle Small enclosure (0°, 30°, 60°, 90°), large enclosure vertical surface 90°;
Water spray pressure 8MPA-10MPA (adjustable);
Water spray flow 14L/MIN-16L/MIN (adjustable);
Water spray distance 100~250mm adjustable;
Test product power-on work Provide test product interface;
Water pump High-pressure and high-temperature water pump imported from Italy. The water-type shell uses 4 high-temperature and high-pressure piston valves to control the work of each nozzle;
Sensor Electronic pressure sensor outputs pressure value, turbine flow meter outputs flow value;
Control Automatic control of time, pressure, and flow. It can control the working time, flow, and pressure of each nozzle. The speed of the booster pump can be controlled by changing the frequency of the frequency converter to achieve the set flow and pressure. All data is converted through intelligent instruments display on the control panel;
Display 7-inch Weinview color touch screen;
Interface language English, touch screen input;
Operation mode 0°, 30°, 60°, 90° cycle operation for small products, 90° vertical movement of the nozzle for large products, or a combination of the two modes;
Display function Dynamically refresh sampling data and setting parameters in real time. Can display pressure, flow, temperature, test time, etc.;
Protection functions Leakage protection, overload protection, short circuit protection, personnel operation safety protection;
Water tank capacity ≥ 200L;
Equipment power supply AC380V, 50HZ, 30KW;
Test water temperature 80±5 ℃ controllable;


IPX6K Technical Parameter



1. Suitable for IPX6K testing of products;



Nozzle aperture ф6.3mm;
Nozzle material Stainless steel;
Water spray flow 75L/min;
Water spray pressure About 1000KPa/min;
Test time At least 3 minutes, user-set time (controlled by control system);
The distance between the nozzle and the enclosure 2.5-3m (controlled by the tester);
Nozzle holder The lifting height and angle are adjustable, which is convenient for fixing the nozzle and does not require hand-held operation;
Flow and pressure control Real-time monitoring of flow and pressure sensors, intelligent control of frequency converters, and parameters can be selected and set in the control cabinet;
Controller Mitsubishi PLC;
Human-machine interface Weinview, 7-inch, color touch screen;
Frequency converter Delta frequency converter;
Water pump South pump stainless steel vertical pump;
Water storage tank ≥500L stainless steel water storage tank;
Turntable Bottom diameter 800mm, upper turntable 350 mm, bottom turntable load-bearing 150KG, upper turntable load-bearing 25KG, poles are removable, small products can be placed on the upper turntable, large products can be placed directly on the lower turntable after removing the upper turntable, rotation speed: 5r/min± 1r/min; (shared by IPX6K and IPX9K);
Protection functions Leakage protection, overload protection, short circuit protection.
Water spray pipe High-pressure hose.




Details

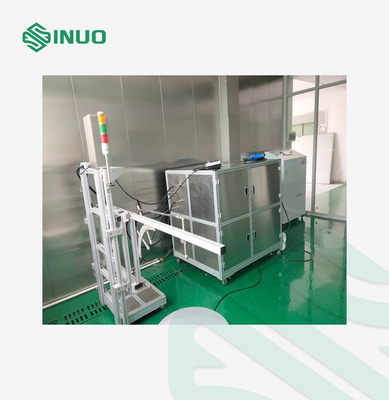

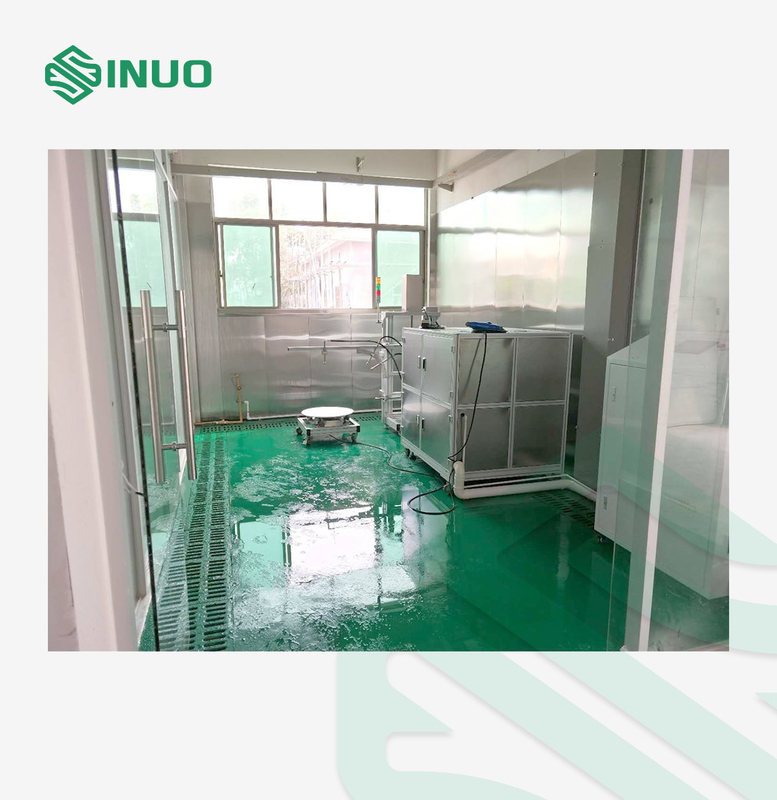

ISO 20653 IPX6K9K Waterproof of Electrical Equipment Against Foreign Objects 0ISO 20653 IPX6K9K Waterproof of Electrical Equipment Against Foreign Objects 1
