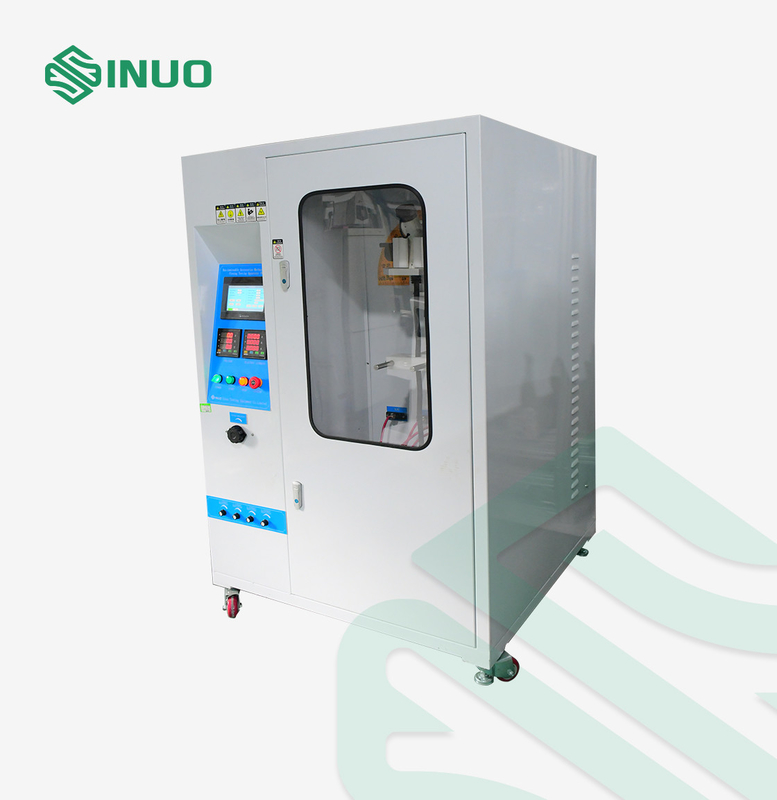

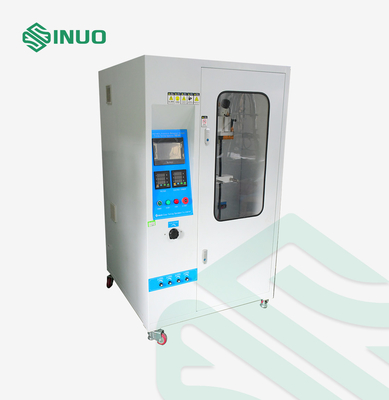

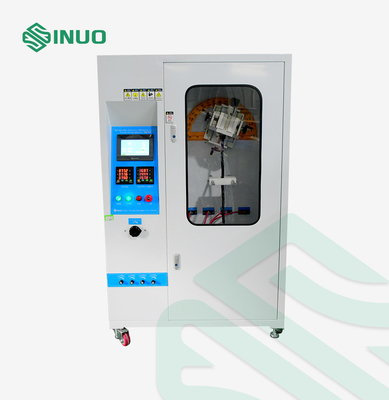

IEC62196-1 EV Mechanical Load Flexing Test Equipment of Vehicle Plugs Socket-outlets



Complied Standards & Clauses




IEC62196-1: 2014 “Plug, socket-outlets, vehicle connectors and vehicle inlets–Conductive charging of electric vehicle-Part1: General requirements” clause 26.4, figure 14



IEC60309-1: 2012 “Plug, socket-outlets and couplers for industrial purposes–Part1: General requirements” clause 24.4, figure 9



Equipment Structure

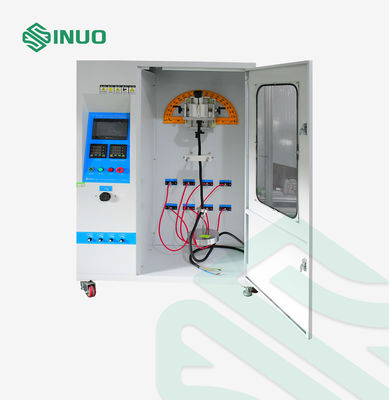

It is used to process the mechanical load flexing test of the vehicle plugs, socket-outlets and couplers non-rewireable accessories. The servo motor is used to drive the turntable and make the sample swing from side to side. When the number of tests reaches the set value, the test will automatically stop. Built-in load to adjust the load required by the sample.



Technical Parameters






Test Station Single
Electrical Control Method PLC intelligent integrated control, 7-inch humanized touch interface operation
Drive Mode Servo motor
Sample Clamping Method Mechanical clamping, the position of clamping point is adjustable
Flexing Angle 0-360° can be adjusted freely (default 90°, 45°on either side of the vertical)
Flexing Rate 0-60 cycles / min, can be preset
Flexing Cycles 0~999999 can be preset, default 20000 cycles
Load Weights 20N, 25N, 50N, 75N, 100N
Load Power External, load cabinet with adjustable voltage between conductors 0-250V and current AC0-400A adjustable is optional
Test Judgment Judging by the signals given when the current is conducting or not
