IEC 62752 EV Chargers Electromagnetic Vibration Shock Testing Machine

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN553-EV207

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Export packing
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 10 sets/month
Contact Now

Detail Information

Maximum Speed: 2m/s Moving Coil Weight: 7kg
Frequency Range: 1~4000 Hz Maximum Displacement: 51 Mm P-p
Maximum Sinusoidal Excitation Force: 700Kg.f(5880N) Peak Maximum Random Exciting Force: 600Kg.f(5880N) R.ms
Maximum Impact Excitation Force: 1400Kg.f(11760N) Peak Maximum Acceleration: 100G (980 M/s2)
High Light:

EV Chargers Shock Testing Machine

,

IEC 62752 Shock Testing Machine

Product Description





 IEC 62752 EV Chargers Electromagnetic Vibration Shock Testing Machine



Complied Standards & Clauses




IEC 62752:2016 clause 9.36: In-Cable Control and Protection Device for mode 2 charging of electric road vehicles (IC-CPD)



Product information:




Vibration testing is the act of exciting or shocking a component or device to see how it would react in a real environment. The application range of vibration test is extremely wide, from industrial products such as circuit boards, aircraft, ships, rockets, missiles, automobiles and household appliances.

Features:

a. High performance and reliability

The closed-loop control is realized by the DSP processor, and the PC is independent from the control loop. It ensures the real-time and high efficiency of the control system. It can respond to any changes in the test system in a timely and rapid manner. Ensure the reliability and high precision of the control. All input channels have 24-bit resolution ADCs, low-noise hardware design, and built-in analog and digital anti-aliasing filters, which effectively guarantee the high precision of the analysis.

b. Easy to operate

The Windows-based application software is easy to operate and rich in auxiliary functions. The system's powerful automatic wizard and automatic test report generation function make repetitive and boring test tasks easy. The test parameter settings are rich and rigorous, and the USB2.0 interface makes it more closely and harmoniously connected with the computer.

c. Powerful functions and flexibility

The vibration controller is a powerful vibration control platform that can complete multiple complex tasks. On the same hardware platform, different application software can be configured to complete a variety of analysis tasks to meet your different test and analysis needs. The controller adopts a modular design, and can configure corresponding hardware and software according to different user needs to meet different needs.

d. Test safety

The controller provides small-scale signal control to get a preview of system vibration control. This method helps test engineers predetermine noise levels. And have a rough understanding of the transfer function and other characteristics of the system. There are also multiple safety checks and interlock settings. The safety of testers, test objects and vibration table equipment is guaranteed to the greatest extent. If there is an abnormality in the system, you can immediately press the system's built-in termination key to end the test.

e. Test report generation

It supports one-click quick generation of test reports in word format or PDF format. You only need to click the report generation button to get the current test results. From the description of the basic test control function to the specific test setting parameters, from the control target spectrum curve to the test time domain and frequency domain curve, everything is available. It is convenient for you to modify and make according to different test report specifications. It can be directly printed and previewed, and can be sent online.



Technical Parameters




A07S23 electromagnetic excitation generator parameters
Maximum sinusoidal excitation force 700Kg.f(5880N) peak
Maximum Random Exciting Force 600Kg.f(5880N) r.ms
Maximum impact excitation force 1400Kg.f(11760N) peak
Frequency Range 1~4000 Hz
Maximum displacement 51 mm p-p
Maximum speed 2m/s
maximum acceleration 100G (980 m/s2)
Maximum load: 300 kg
Vibration isolation frequency: 2.5 Hz
Moving coil diameter: Ф230 mm
Moving coil weight: 7kg
Screw on the table 16×M10
Flux leakage <10gauss
Allowable eccentric moment 300N.m
Equipment size

915mm×740mm×780mm

(not including vertical expansion table)

Equipment weight 880 kg (Excluding horizontal slide table)
SA-6K digital switching power amplifier
Output power 7KVA
Output voltage 120V
Output current 70A
Amplifier efficiency ≥90%
On-off level 116KHz
SNR ≥65dB
Noise ≤70dB
Amplifier size 900mm×600mm×1130mm
Servo protection system
Function Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss
Digital vibration controller VCSusb-2
Hardware configuration 2 simultaneous input channels, 1 output channel
Control function module Sine, random, classical shock
Control computer 17’’ original brand computer with LCD monitor
Software Chinese/English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, etc. It can automatically generate WORD test reports. It can display, store the signals and data, and set test parameters and analyze functions.
System accelerator

Frequency range: 1—12000Hz

Sensitivity: 30PC/g

Temperature range: -40 - 180°C

VT60 vertical extension table
Material Magnesium alloy, surface hardened
Table size 600×600 mm
Fixed hole M8 rectangular distribution, durable and wear-resistant
Upper limit usage frequency Sine 1000 Hz, Random 2000 Hz
Weight About 48Kg
HG60 horizontal oil film slide table
Material Magnesium alloy, surface hardened
Table size 600×600x60 mm
Fixed hole M8 rectangular distribution, durable and wear-resistant
Upper limit usage frequency Sine 2000 Hz, Random 2000 Hz
Weight About 57Kg (without connection head)
B402S cooling fan
Fan power: 4KW
Fan flow rate: 41m3/s
Electrical requirements
Power supply AC 3-phase 380V/50Hz 18 KW
Compressed air 0.6Mpa
Ground resistance ≤4Ω


Details

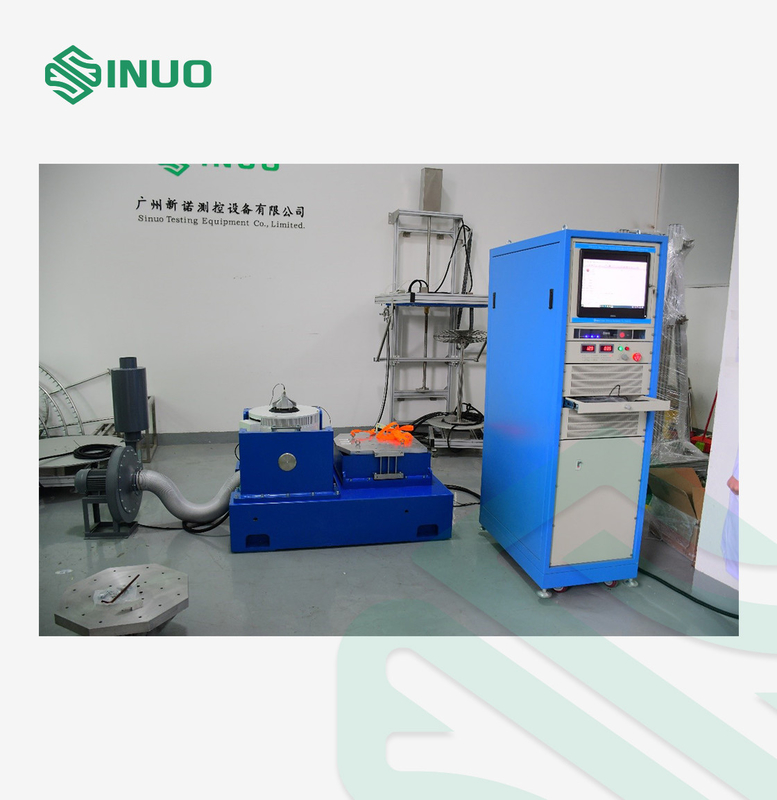

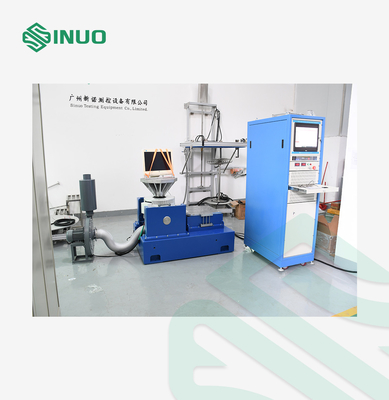

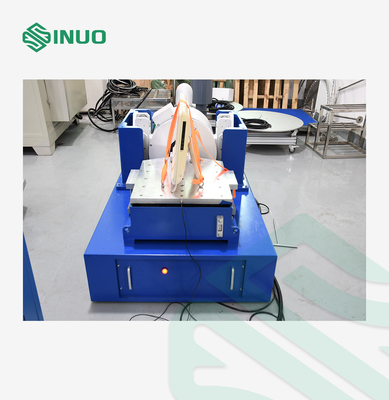

IEC 62752 EV Chargers Electromagnetic Vibration Shock Testing Machine 0IEC 62752 EV Chargers Electromagnetic Vibration Shock Testing Machine 1
