IEC60068-2-78 Electromagnetic Vibration Testing Machine Sine Random Classical Shock

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN553-EV322HG120VT120.GP.VCS-2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export packing
Delivery Time: 30 Days
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Contact Now

Detail Information

Maximum Displacement: 76 Mm P-p Maximum Speed: 2.0m/s
Maximum Acceleration: 90G Payload: 400 Kg
Moving Coil Diameter: Ф320 Mm Moving Coil Weight: 25kg
Flux Leakage: <10gauss Allowable Eccentric Moment: 500N.m
High Light:

Classical Shock Electromagnetic Vibration Testing Machine

,

Sine Random Electromagnetic Vibration Testing Machine

,

IEC60068-2-78 Electromagnetic Vibration Testing Machine

Product Description





IEC60068-2-78 Electromagnetic Vibration Testing Machine Sine Random Classical shock



Complied Standards & Clauses




according to national and international standards, such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM.



Product Overview




Vibration testing is the act of exciting or shocking a component or device to see how it would react in a real environment. The application range of vibration test is extremely wide, from industrial products such as circuit boards, aircraft, ships, rockets, missiles, automobiles and household appliances.





Technical Parameters




A20T34 electromagnetic excitation generator parameters
Maximum sinusoidal excitation force 2200Kg.f peak
Maximum Random Exciting Force 2200Kg.f rms
Maximum impact excitation force 4400Kg.f
Frequency Range 1~3000 Hz
Maximum displacement 76 mm p-p
Maximum speed 2.0m/s
Maximum acceleration 90G
First-order resonant frequency 3200 Hz±5%
Payload 400 kg
Vibration isolation frequency 2.5 Hz
Moving coil diameter Ф320 mm
Moving coil weight 25kg
Screw on the table 17×M10
Flux leakage <10gauss
Allowable eccentric moment 500N.m
Equipment size L 1200mm×W 870mm×H 1100mm (vertical table)
Equipment weight 1700Kg (Excluding horizontal slide table)
LA-22K digital switching power amplifier
Output power 22KVA
Output voltage 100V
Output current 220A
Amplifier efficiency ≥90%
SNR > 75 dB
Harmonic distortion 0.5% THD @ 500Hz
Input signal range ±10 Vpeak
Output DC stability <5mVdc
Amplifier weight 500KG
Amplifier size W 880mm×D 580mm×H 1520mm
Servo protection system
Function Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss
Digital vibration controller VCS-2
Hardware configuration 2 simultaneous input channels, 1 output channel
Control function module Sine, random, classical shock
Control computer Original Acer computer with 17″ LCD monitor, keyboard/optical mouse
Software English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, etc. It can automatically generate WORD test reports. It can display, store the signals and data, and set test parameters and analyze functions.
Operating system Windows 10
Acceleration sensor LAB

Frequency range: 1-12000Hz

Sensitivity: 50mv/g

Temperature range: -24 - 250℃

VT120 vertical extension table
Material Magnesium alloy, surface hard anodized
Table size 1200mm×1200mm
Fixed hole M10 stainless steel screw sleeve, durable and wear-resistant
Upper limit usage frequency 350 Hz, Random 2000 Hz
Weight About 120KG

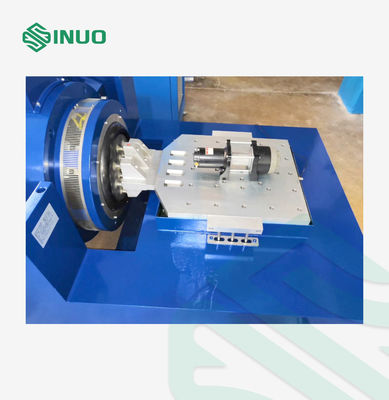

HG120 horizontal oil film slide table
Material Magnesium alloy, surface hard anodized
Table size 1200mm×1200mm
Fixed hole M10 stainless steel screw sleeve, durable and wear-resistant
Upper limit usage frequency Sine 2000 Hz, Random 2000 Hz
Weight About 227KG (without connection head)
B752S cooling fan(Including silencer)
Fan power 7.5KW
Fan flow rate 22m³/Min
Electrical requirements
Power supply 3-phase 380V/50Hz, 35 KVA
Compressed air 0.6Mpa
Ground resistance ≤4Ω
