| Brand Name: | Sinuo |
| Model Number: | SN888-5400L |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets Per Month |

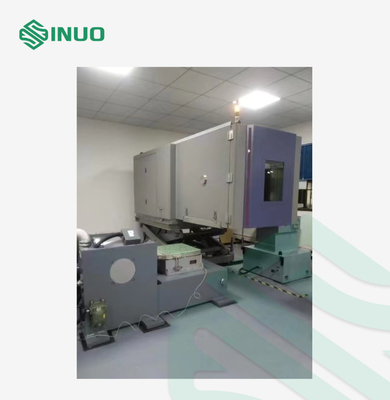

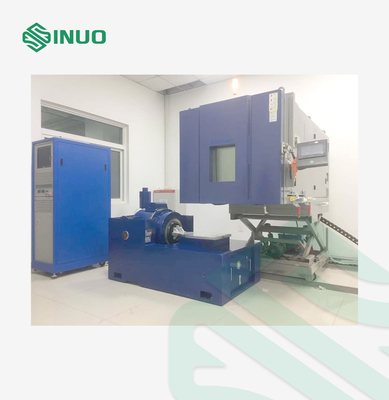

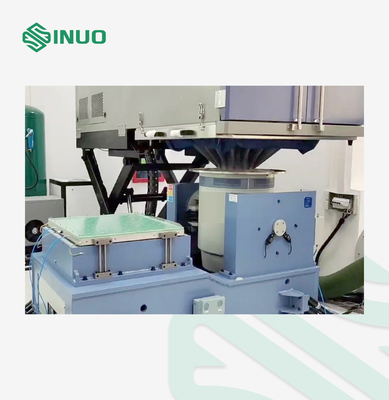

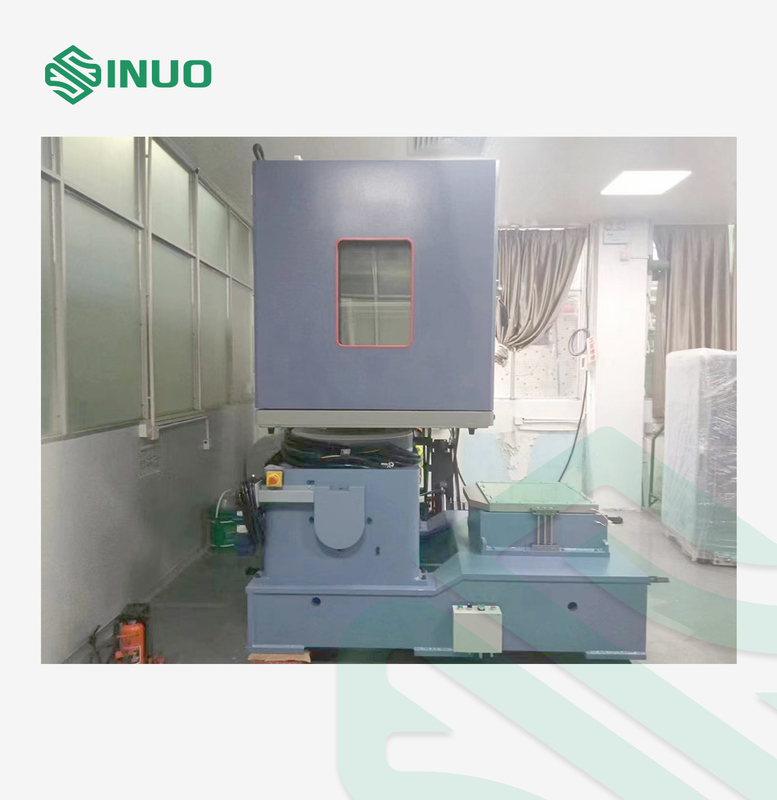

IEC60068-2-2 Vibration Shaker with Climatic Chamber Testing Equipment -40℃～+180℃
Complied Standards & Clauses
IEC 60068-2-1:2007 Environmental testing for electric and electric products-Part 2-1: Tests-Test A: Cold, IDT
IEC60068-2-2: 2007 Environmental Testing-Part 2-1:Tests- Test B-Dry heat, IDT
IEC60068-2-30:2005 Environmental Testing-Part 2-30:Tests-Test Db.: Damp heat, cyclic (12h+12h cycle),IDT
IEC60068-2-78:2001 Environmental Testing-Part 2-78:Tests-Test Cab: Damp heat, steady
state, IDT
Product Overview
It is used to provide temperature and humidity change environment for aerospace, aviation, aviation petroleum, chemicals, electronics, communications and other scientific research and production units. At the same time, the electrical vibration stress can be applied to the test sample according to the specified period in the test chamber for test the reliability and adaptively of the sample. The product introduction is divided into two parts, the first part is Electromagnetic Vibration Testing Machine SN553-EV322HG120VT120.GP.VCS-2,and the second part is Temperature, Humidity and Vibration Three Comprehensive Test Chamber SN888-7200B-CT.
Technical Parameters
| Input channel | |
| Number of input channels | 2 simultaneous input channels |
| Input signal type | Voltage/charge |
| Input resistance | ＞110 kΩ |
| Maximum voltage input range | ±10V |
| Maximum charge input range | ±10000PC |
| SNR | ＞100dB |
| Filter | 160dB/octave analog filter |
| Input interface | Three optional inputs: voltage, ICP and charge |
| Maximum input | 士10VPEAK |
|
Analog/digital converter (ADC) |
24-bit resolution, dynamic range: 114dB, maximum sampling frequency 192kHz |
| Circuit characteristics | The input interface has a built-in ICP constant current source and charge amplifier, with two ranges of 10V/1V and optional AC/DC coupling, and an analog anti-aliasing filter. |
| Output channel | |
| Number of output channels | 2 output channels |
| Output signal type | Voltage signal |
| Output impedance | ＜30Ω |
| Maximum voltage output range | ±10V |
| Maximum output current | 100mA |
| Amplitude accuracy | 2mV |
| Harmonic distortion | <-95dBfs |
| Filter | 160dB/octave analog filter |
| Channel matching | Amplitude 0.04dB, phase ±0.5 |
|
Digital/analog converter (DAC) |
24-bit resolution, dynamic range: 120dB, maximum sampling frequency 192kHz |
| Circuit characteristics | Analog anti-aliasing filter; output protection circuit |
| Test type | Random vibration control/sinusoidal control/typical shock control |
Digital vibration controller function description
Random control
According to the user-defined power spectrum diagram (made by the target spectrum editor), random control adopts the method of transfer function equalization. Continuously output Gaussian random signals to quickly implement real-time and accurate multi-channel closed-loop control. Built-in adaptive control algorithms react quickly to system nonlinearities, resonant frequency, and load changes.
Frequency range: 0~4800Hz, extendable to 18750Hz
Resolution: 100, 200, 400, 800, 1600, 3200 spectral lines
Control power range: >90dB
Control strategy: single channel control, weighted average, maximum value, minimum value.
Sine control
Sine provides analog-quality sine and sine sweep signals with control over the amplitude of the sine waveform. The dwell magnitude, dwell frequency can be set, and the dwell duration can be determined by setting the time or the number of cycles of the sinusoidal signal.
Frequency range: 1Hz~5000Hz, expandable to 10000Hz
Closed loop time: 5 mS
Harmonic distortion: <-100dB
Frequency sweep mode: linear frequency sweep 0~6000 Hz/min | Logarithmic sweep 0~100 Oct/min
Sweep direction: up, down
Sweep duration: can be set as the number of sweeps or test times.
Classical Shock
Adopt transfer function equalization method, support half sine wave, bell wave, rectangular wave, trapezoidal wave, front peak sawtooth wave, back peak sawtooth wave, triangular wave. Users can also input pulse peak value according to their needs.
Pulse duration from 0.5 to 3,000mS
Maximum analysis bandwidth 18750Hz
Frame size: up to 16384
Meet the standards: MIL-STD-810 (US military standard), ISO standard, user-defined interrupt control limit.

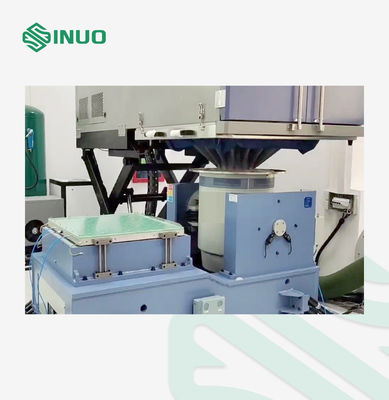

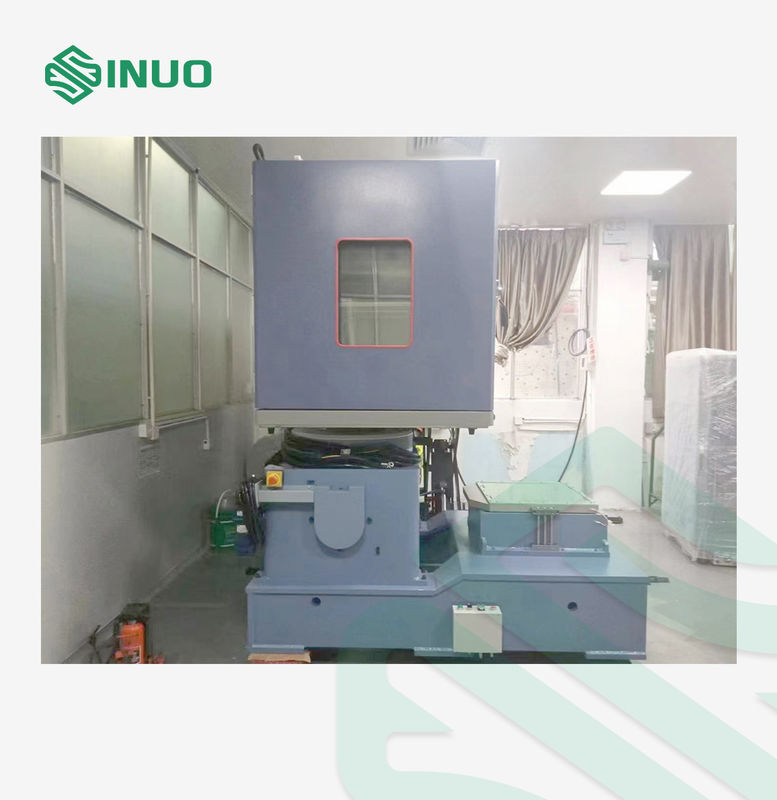

Details
