IEC 62196-1 Electric Vehicle Charging Interface Mechanical Load Test Device

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN1013C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood Case
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 30 Sets / Month
Contact Now

Detail Information

Weight: 150KG Size: 1100*460*1600
Applied Standard: IEC 62196-1:2020 Applied Clauses: Clause 16.16
Force Direction: Weight Gravity Points Downward The Amount Of Force Applied: According To Test Standard Weight
High Light:

IEC 62196-1 Mechanical Load Test Device

,

Electric Vehicle Mechanical Load Test Device

Product Description





IEC 62196-1 Electric Vehicle Charging Interface Mechanical Load Test Device



Complied Standards & Clauses




IEC 62196-1Ed.4CDV 2020 clause 16.16, IEC62196-1:2022



Equipment Overview




This device is a special test instrument used to detect whether the force required to pull the plug out of the socket and the force required to insert the plug into the socket are within the specified range. It is an indispensable device for electrical accessories, household appliance manufacturers, quality inspection departments and scientific research institutions to detect daily electrical appliances.

Structural features:

This device mainly consists of charging load test and plug-in force test devices. The pull-out force device consists of the installation fixture and the clamping device below, the main weight, additional weights, and test plugs and sockets; the insertion force device consists of the main weight, additional weights, mounting seats, and test plugs and sockets. Based on the experience, the pull clamp is changed to a counterweight, the weight hook is directly connected to the test plug, a clamp is configured to hold the sample, and a lift is used to lift the weight or the main weight of the insertion force to avoid the inconvenience of manual transportation. , improve work efficiency and reduce labor costs,



Technical Parameters




1. The charging load test should meet the requirements.

The total mass of the test power supply plug or test vehicle plug, clamping device, load-bearing device, main weight, and additional weights shall exert a pull-out force that complies with the provisions of Table 1. The mass of the additional weight should be such that it exerts a force equal to one-tenth of the pullout force. Hang the main weight on the test plug without shaking, and then drop the additional weight onto the main weight from a height of 5cm.



Rated current or continuous maximum operating current Force
AC, DC 6<I≤40 165
40<I≤80 300
AC 80<I≤150 440
150<I≤250 660
DC I>80 750
When the test object is an AC power supply socket or a vehicle socket, the test load is 300N; when the test object is a DC vehicle socket, the test load is 750N.


Chart 1 Gravity load with different rated currents

Weight selection

According to chart 1, select an appropriate weight according to the current and conduct the test. For example 165N=148.5+16.5

300N=270+30

440N=396+44

660N=396+44+154+66

750N=396+154+44+66+15+75

Among them, 148.5N, 270N, and 396N are the main weights with hooks. The shape and size are as shown in the attached picture.

Shown in SN1013C-10. 16.5N, 30N, 44N, 154N, 66N, 15N, 75

The shape and size of additional weights with through holes are shown in the attached figure SN1013C-13. Other size weights

The code can be customized later.



2. The charging plug pull-out force test should meet the requirements.

Before testing, wipe off the oil on the pin. Pull out the test power supply plug or test vehicle plug insertion box from the power supply socket or out of the socket for 10 cycles. Then clamp it on the fixture with a plug and do the test again. The charging plug does not need to move at a uniform speed when pulling out or plugging in, and the insertion force and pullout force are equal to the gravity of the weight and the plug and are vertically downward.



3. Test standard plug

The test plug shall consist of finely ground contacts made of hardened steel with a surface roughness not exceeding 0.8 μm over its working length and spaced at a nominal distance with a tolerance of ±0.5 mm. For other types of pins, The dimensions of the pins or the distance between the surfaces of the pins shall comply with the minimum dimensions given by the relevant standards.



Details

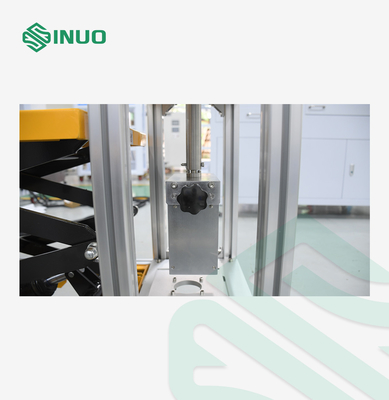

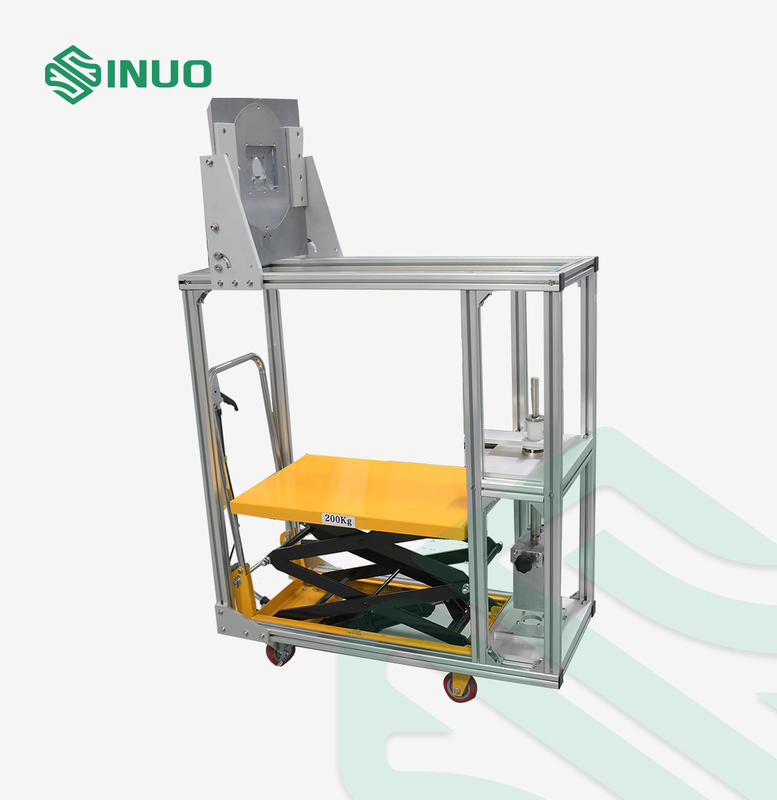

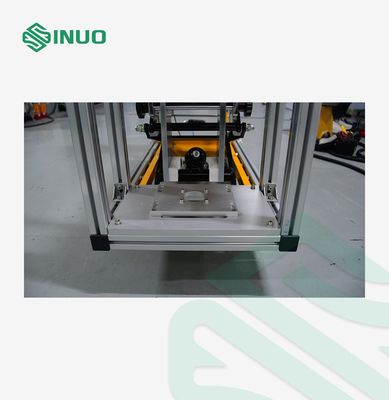

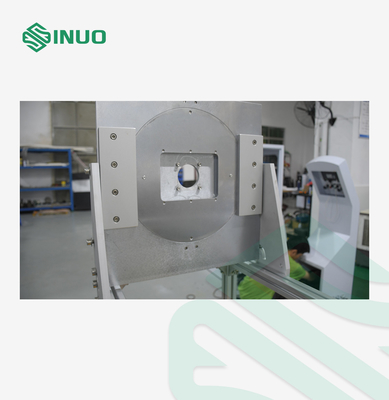

IEC 62196-1 Electric Vehicle Charging Interface Mechanical Load Test Device 0IEC 62196-1 Electric Vehicle Charging Interface Mechanical Load Test Device 1
