IEC 60529 IPX9K Road Vehicles Waterproof Grade Testing Equipment 80±5 ℃

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4412

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export packing
Delivery Time: 30 Days
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Contact Now

Detail Information

Bottom Diameter: 800mm Upper Turntable: 350 Mm
Water Tank Capacity: ≥ 200L Test Water Temperature: 80±5 ℃ Controllable
Water Spray Pressure: 8MPa-10MPa (adjustable) Water Spray Flow: 14L/min-16L/min (adjustable)
Water Spray Distance: 100~250mm Adjustable Equipment Power Supply: AC380V, 50Hz, 30KW
High Light:

IEC 60529 Waterproof Grade Testing Equipment

,

Road Vehicles Waterproof Grade Testing Equipment

,

IPX9K Waterproof Grade Testing Equipment

Product Description





IEC 60529 IPX9K Road Vehicles Waterproof Grade Testing Equipment 80±5 ℃



Complied Standards & Clauses




I.DIN 40050-9: Road vehicles; degrees of protection (IP-code); protection against foreign objects; water and contact; electrical equipment

2. ISO 20653:2013 Road vehicles-Degrees of protection (IP code)- Protection of electrical equipment against foreign objects, water and access

3. IEC 60529: 2013 Degrees of protection provided by enclosures (IP Code)



Product Overview

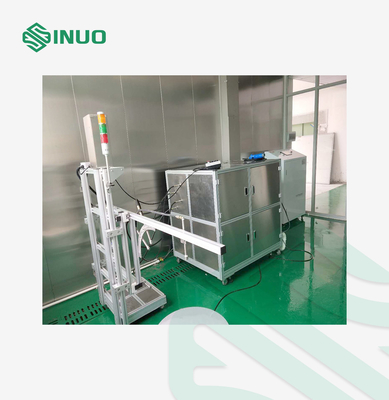

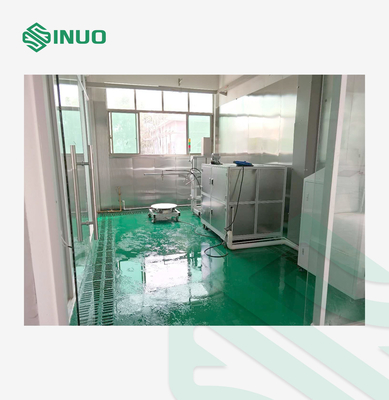

The main purpose of this equipment is to conduct IPX6K and IPX9K waterproof testing on the protection of road car electrical components, lamps, and electronic and electrical product enclosure. It is a waterproof testing equipment designed to simulate the natural environment or artificial high-pressure car washing. The main components of the equipment should include: high-pressure and high-temperature plunger water pump, three-phase asynchronous motor, and the inlet and outlet pipes of the water pump should be connected with high-pressure hoses; the equipment mainly consists of a control cabinet, water supply system, high-pressure nozzle, nozzle electric adjustment bracket, and sample turntable.



Technical Parameters




1. The test meets the needs of small enclosure (samples with a maximum size not exceeding 250 mm) and large enclosure (samples with a maximum size greater than or equal to 250 mm). The maximum sample size tested is: Ø1150mmX750mm;

2. Customized according to standard graphics, meeting standard IPX9K requirements;

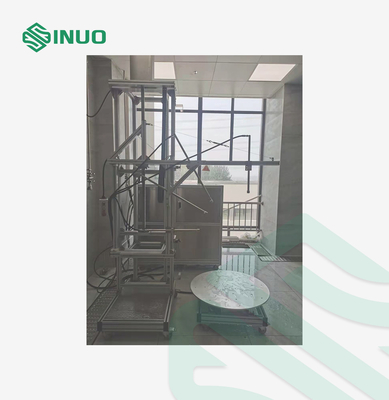

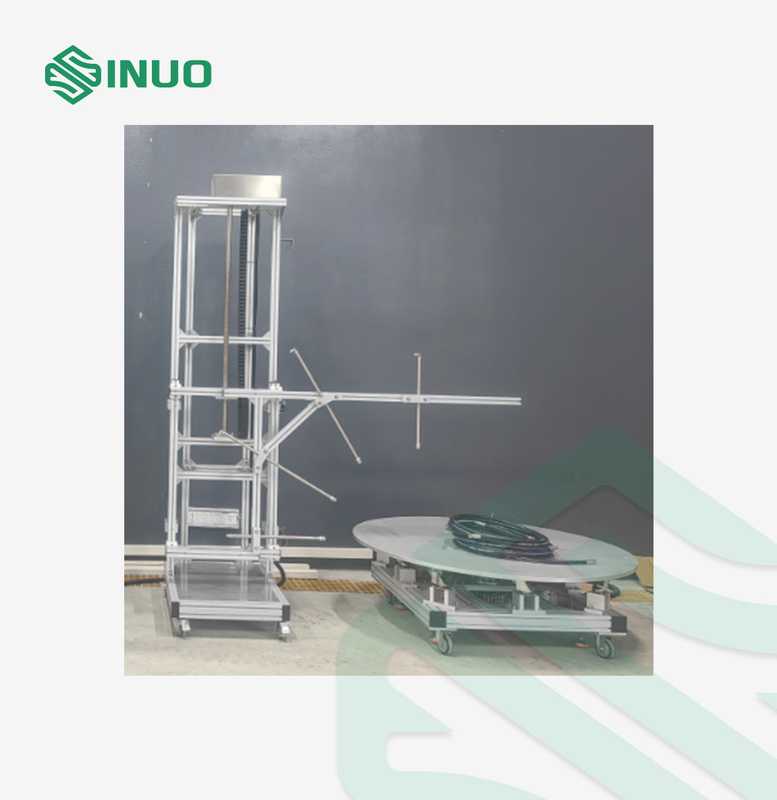

3. Used for large product nozzle brackets: the bottom can be electrically moved forward and backward, the up and down height can be electrically moved, and the 90-degree downward nozzle can be electrically moved left and right.



Nozzle angle Small enclosure (0°, 30°, 60°, 90°), large enclosure vertical surface 90°;
Water spray pressure 8MPA-10MPA (adjustable);
Water spray flow 14L/MIN-16L/MIN (adjustable);
Water spray distance 100~250mm adjustable;
Test product power-on work Provide test product interface;
Water pump High-pressure and high-temperature water pump imported from Italy. The water-type shell uses 4 high-temperature and high-pressure piston valves to control the work of each nozzle;
Sensor Electronic pressure sensor outputs pressure value, turbine flow meter outputs flow value;
Control Automatic control of time, pressure, and flow. It can control the working time, flow, and pressure of each nozzle. The speed of the booster pump can be controlled by changing the frequency of the frequency converter to achieve the set flow and pressure. All data is converted through intelligent instruments display on the control panel;
Display 7-inch Weinview color touch screen;
Interface language English, touch screen input;
Operation mode 0°, 30°, 60°, 90° cycle operation for small products, 90° vertical movement of the nozzle for large products, or a combination of the two modes;
Display function Dynamically refresh sampling data and setting parameters in real time. Can display pressure, flow, temperature, test time, etc.;
Protection functions Leakage protection, overload protection, short circuit protection, personnel operation safety protection;
Water tank capacity ≥ 200L;
Equipment power supply AC380V, 50HZ, 30KW;
Test water temperature 80±5 ℃ controllable;


Details




IEC 60529 IPX9K Road Vehicles Waterproof Grade  Testing Equipment 80±5 ℃ 0IEC 60529 IPX9K Road Vehicles Waterproof Grade  Testing Equipment 80±5 ℃ 1
