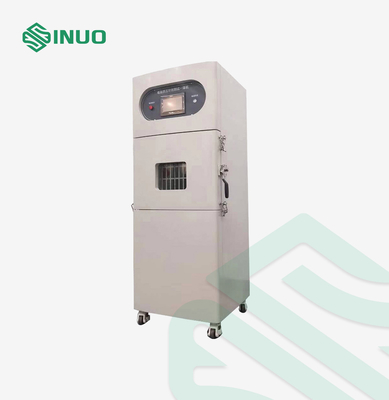

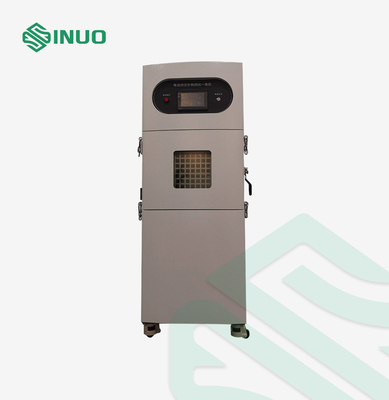

IEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber

IEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber

Brand Name:	Sinuo
Model Number:	SN554B-15T
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Extrusion Accuracy:

±1%

Velocity Error:

≤1%

Extrusion Stroke:

0~450mm

Driving Mode:

Servo Motor

Maximum Pressure:

1KN-150KN (adjustable)

Velocity Condition:

1 - 15mm/s (adjustable)

Box Size:

W1000*D1000*H1000 Mm

Input Voltage:

380V Frequency 50 Hz

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Two-channel Battery Crush Test Chamber

Nail Penetration Test Chamber

IEC62133 Battery Crush Test Chamber

Product Description

IEC62133 Two-channel Battery Crush and Nail Penetration Test Chamber

Complied Standards & Clauses

Conforms to AIS 038 crush test in page no. 79 of 106 cl.no. 3.2, Nail penetration test in page no. 101 of 106 cl.no. 3.3.2 (a), IEC62133-2012, etc.

Product Overview

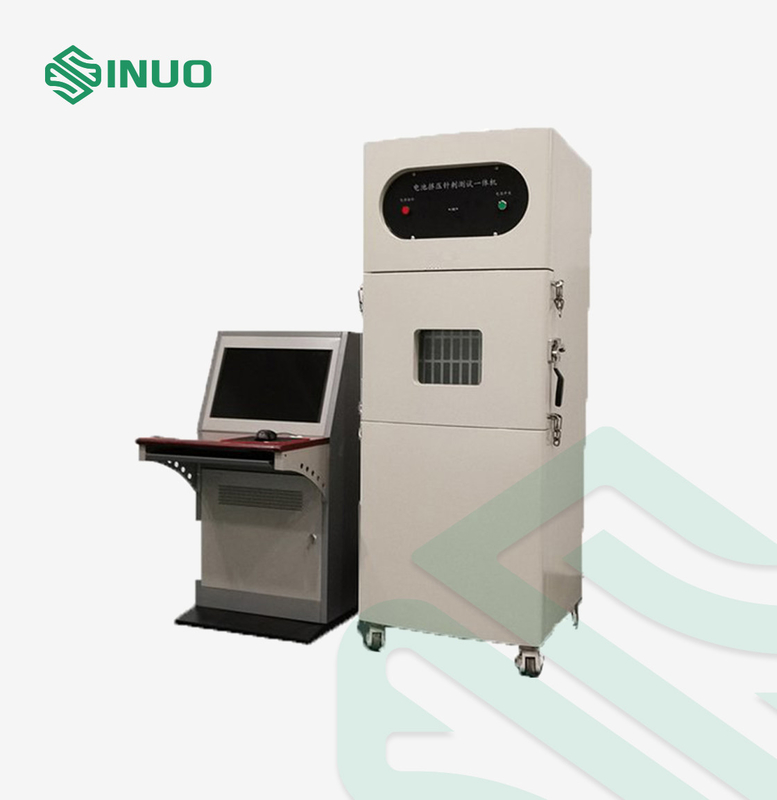

This testing machine simulates the different conditions that may occur when the battery is subjected to extrusions during the use of various power lithium battery grades. The battery is placed between an extruding plate, and the motor applies pressure to the extruded battery through the screw, and automatically returns after reaching a certain pressure. This test equipment is mainly used for the safety detection of automotive lithium batteries, power batteries, accumulators, electric vehicle batteries and other batteries. It is a set of pressure system, explosion-proof system, data acquisition system, computer control system and so on. The main body of the test equipment and the control system are isolated and operated separately to realize remote monitoring and testing, and multi-layer safety protection device can meet multiple test standards. The main components are imported, which is an essential testing equipment for battery manufacturers and research institutes.

Technical Parameters

Maximum pressure	1KN-150KN (adjustable)
System structure	Vertical pressure structure
Driving mode	Servo motor
Input voltage	380V frequency 50 Hz
Extrusion stroke	0~450mm(Extrusion fixtures are not included)
Extrusion accuracy	±1%
Velocity condition	1 - 15mm/s (adjustable)
Speed display accuracy	0.1mm
Pressure display accuracy	1N
Velocity error	≤1%
Force error	±1%
Unit conversion	Kg/N/Lb
Test condition	Force, displacement (deformation), voltage, one of three or a combination of three
Squeeze pause time	0~99 hours 59 minutes 59 seconds, the time state can be set at will to adjust the amount of deformation cloth and automatic termination
Control mode	PC upper computer control system
Box size	W1000D1000H1000 mm
Temperature range	Collection range: -20 ~1000℃; two-channel
Temperature range	Accuracy: ±1℃;
Voltage range	Collection range: 0~100V
	Acquisition accuracy: 100ms;
	Channel: 1 channel;
communication	Using R232,45 communication interface, can ensure the stability and real-time remote acquisition, with explosion-proof function
Safety stop switch	Has an "emergency stop" button
Inner box material	SUS 201# stainless steel (thickness 3.0mm reinforced and total thickness of outer box 80mm)
Outer box material	Cold mixed plate baking (thickness 1.5mm)
Box body	Adopt vertical structure
Smoke vent	100mm, located above the back of the box

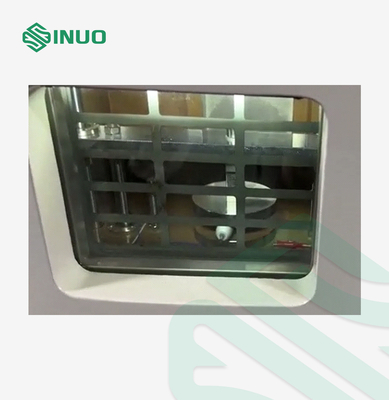

Door	Left door, observation window, cold handle door lock
Explosion-proof pressure relief device	With explosion-proof pressure relief function, that is, the rear of the protective box has a magnet adsorption type pressure relief door (specification: 400*400mm), when the strong air impact, the pressure relief door automatically opens to reduce the explosion impact.
Fire extinguishing installation	The extruded box is equipped with a fire extinguishing device. Once the battery explodes, the fire extinguishing device and system can be opened by remote control or manual.
Exhaust system	When the test sample produces smoke, the device can automatically exhaust the smoke through the pipe
Lighting installation	High brightness energy-saving lighting explosion-proof lamps are placed in the test tank to illuminate the entire test space for easy test observation

Details

IEC62133 Two-channel Battery Crush And Nail Penetration Test Chamber 0
