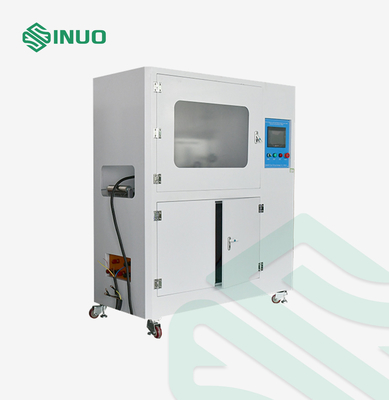

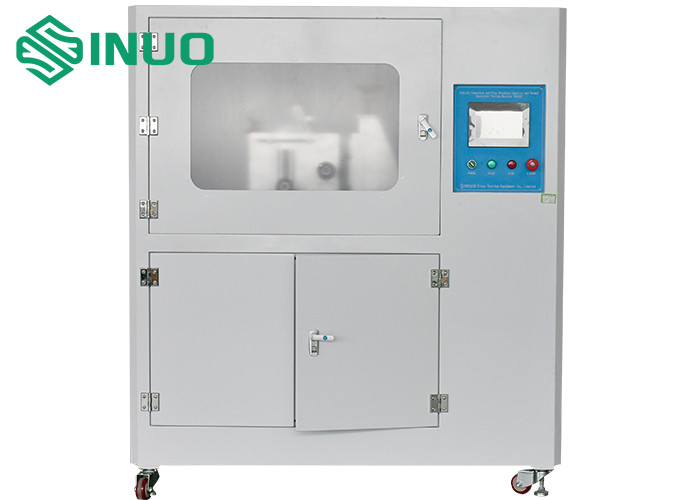

IEC62196-1 Charging Interface Breaking Capacity 2Kw Test Device

IEC62196-1 Charging Interface Breaking Capacity 2Kw Test Device

Brand Name:	Sinuo
Model Number:	SNQC1005A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Weight:

150kg

Working Temperature:

0-40℃

Working Humidity:

30%-90%

Station:

Single Station

Overall Dimensions:

W1000*D750*H1200mm

Power Supply:

AC220V±10%/50-60Hz, 2Kw

Test Trip:

0-150mm, Can Be Preset

Plug And Unplug Rate:

0-10 Times/min, Can Be Preset

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

2Kw Charging Interface Breaking Test Device

IEC62196-1 Charging Interface Breaking Test Device

Product Description

IEC62196-1 Charging Interface Breaking Capacity 2Kw Test Device

Complied Standards & Clauses

Conforms to IEC62196-1:2022., etc.

Product Overview

It is used to test whether electrical accessories such as electric vehicle charging interfaces, industrial plugs and sockets, and couplers can withstand the mechanical stress, electrical stress and thermal stress that occur during normal use without excessive wear or other harmful effects, with the purpose of verifying their reliability. The servo motor drive mechanism is used to perform linear plug-and-pull repetitive actions on the sample, and an external load can be connected for on-off testing. Power on and off time, test speed, stroke, and angle can all be preset through the touch screen.

Technical Parameters

Test items	a) Partial life test of mechanical locking device; b) Breaking ability; c) Normal operation (lifetime)
Test sample range	AC and DC charging gun
Station	Single station
Electrical control method	Mitsubishi PLC intelligent integrated control, 7-inch color human-machine touch interface operation
Operation mode	Manual or program-controlled operation
Function	It has the function of simulating the normal operation of the charging interface, which can be combined with the plug-in and unplug operation of the charging interface, unlocking/locking of the mechanical locking device, and can also be tested independently. It has programmable setting of test speed, test time and number of tests;
Drive mode	The servo motor drives the plugging and unplugging movements and the rotating and liquid-dipping movements, and the auxiliary cylinder realizes the opening and closing of the switch interlocking mechanism.
Sample fixture and clamping method	Mechanical clamping, X/Y/Z three-dimensional adjustable clamp, adjustable clamping point position, universal clamp suitable for national standard, American standard, European standard AC/DC charging interface;
Automatic flip	Equipped with an automatic flipping mechanism at the charging gun clamp, which can be flipped 90º, and the flip holding time can be set arbitrarily within the range (0 ~ 600) s
Test frequency	0~999999 times, can be preset, automatically stops when the count reaches the set value
Breaking capacity switch-on time	1-999.9s, can be preset (the standard requires that electrical contact should be maintained for no more than 4s and no less than 2s)
Plug and unplug rate	0-10 times/min, can be preset (3.75 cycles/min, 7.5 strokes/min)
Test trip	0-150mm, can be preset (the distance between the test plug and the test socket is ≥50mm)
Test speed	0-850mm/s can be preset directly on the touch screen
Force value display	Equipped with a 50kg range force sensor, which can monitor the force value in real time, form a force-time curve, display the maximum insertion force and extraction force, and display the current force value, force value range (0 ~ 500) N, and indication error. ≤±0.5%F.S., resolution≤0.1N
Locking device	It has the function of automatically pressing the mechanical locking device to simulate normal operating conditions.
Solution tank box	Equipped with three test liquid tanks, which can accommodate GB/T20234.1-2023 Table 10 acid rain simulated solution, Table 11 salt water simulated solution, and Table 13 turbid water simulated solution.
Immersion requirements	The number of soaking liquids, soaking time, drying time, plug-in and unplug times, and cycle times can be set
Load	External
Detection function	When the load is connected, it can realize circuit break alarm and record the current times.
Safety protection	Ground protection, short circuit protection, overload protection

Details

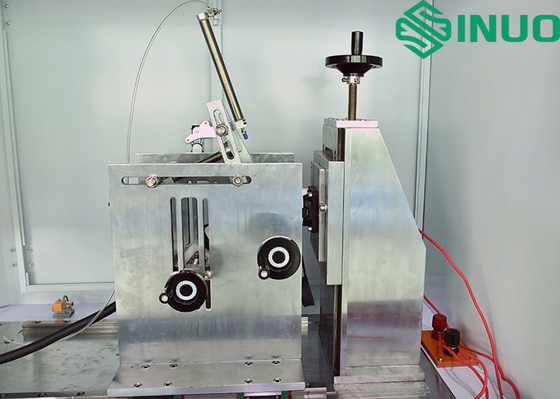

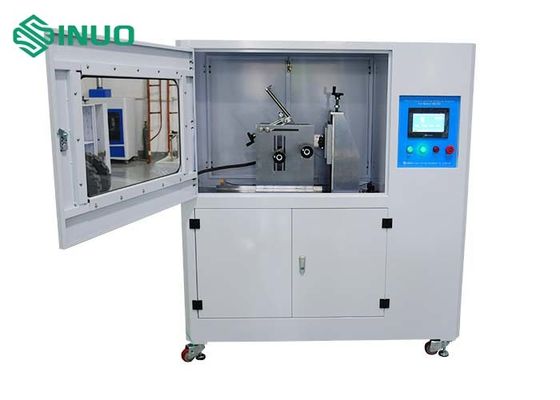

IEC62196-1 Charging Interface Breaking Capacity 2Kw Test Device 3
