AC12V Ground Terminal Short-term High Current Resistance Test System

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SNQC1020

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export packing
Delivery Time: 30 Days
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Contact Now

Detail Information

Weight: 450kg Constant Test Current Source: 30.0~8000A
Maximum Output Voltage: Less Than AC12V Test Current Stability: ±(1% Set Value + 5A)
Operating Mode: Continuous Mode, On-off Mode Equipment Size: 1000mmW × 1000mmD× 1800mm H
Test Frequency: 50Hz/60Hz Can Be Set Current Display Accuracy: ± (0.25% Reading + 0.25% Range)
High Light:

Ground Terminal Short-term Test System

,

AC12V Ground Terminal Test System

Product Description





AC12V Ground Terminal Short-term High Current Resistance Test System



Complied Standards & Clauses




Conforms to IEC 62192-1:2022, etc.



Product Overview




It adopts independent programming software and computer-controlled operation. All standard test procedures and data judgments are controlled by the system, making it easy to operate. It provides AC30~8000A adjustable AC constant current source, which can be used for ground resistance testing, appliance switches, plugs and sockets, and switch cabinets. , busbar and other products temperature rise test. It has the characteristics of easy operation, accuracy and reliability, and is widely used in manufacturers, quality inspection and scientific research departments. It can also be used to assess the surface heating of electrical accessories when connected to a load current and whether the electrode temperature rise meets the requirements of the standard.



Technical Parameters
















Constant test current source

Maximum output voltage: less than AC12V

Test frequency 50Hz/60Hz can be set

Constant test current source: 30.0~8000A continuously adjustable

Current display accuracy: ± (0.25% reading + 0.25% range), resolution 0.1A/1A

Test current stability: ±(1% set value + 5A)

Current rise time: The time for the current to reach the set current value (maximum value 8000A) from 0A at the beginning of the test does not exceed 0.5s. Current rise stabilization time: about 0.5S

Number of output phases: single phase, one station;

Operating mode Continuous mode, on-off mode
Continuous mode power on time, power on and off time 1~999.9 seconds/minute/hour
Number of on-off times 1~9999 times, with power-off memory function, automatic shutdown when the number reaches
Control method Equipped with PLC modules from well-known brands such as Siemens, Mitsubishi, and Omron, and equipped with a 7-inch or above color LCD touch control screen;
Operation mode Manual or program-controlled operation;
Safety protection With overload, overvoltage and overheating protection functions;
Accessories Manual, power cord about 3 meters
Power supply Three-phase AC380V±10%, 50Hz, 150KVA

Main configuration
Name Specification Brand Quantity
Computer Pen 4/1.8G or above CPU, 4G memory, 64G solid state drive, 15-inch LCD monitor), installed with XP Chinese operating system, OFFICE processing software CUSN 1
Cabinet Anti-static spraying Customize 1
Programmable current source 10V 8000A Customize 1
Test fixture According to standard Customize 1
Program-controlled test recording software Test control Customize 1



Details

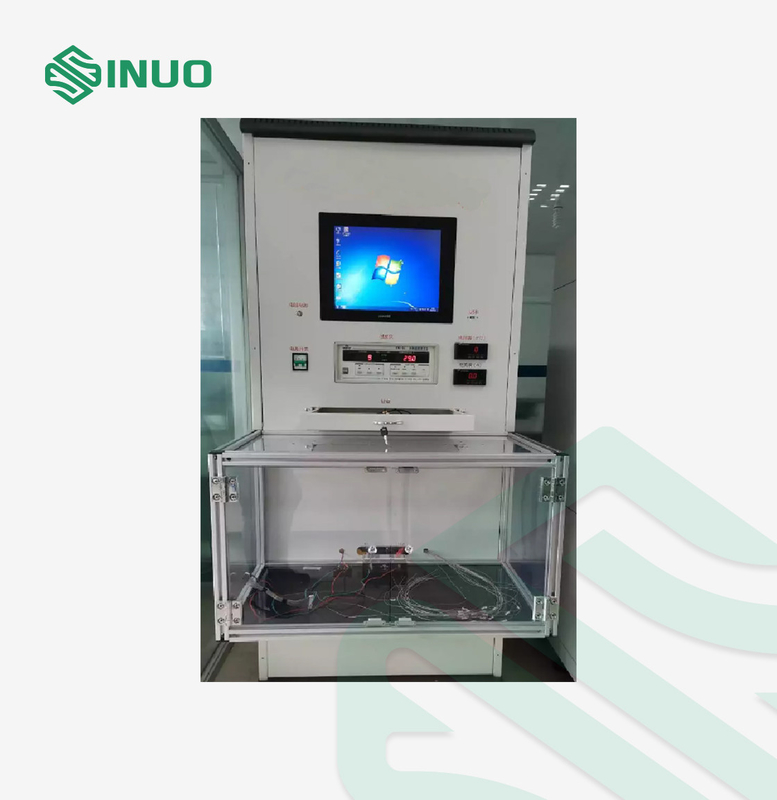

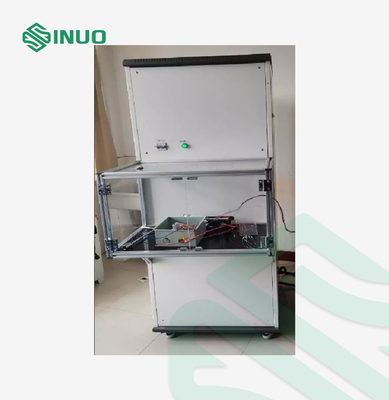

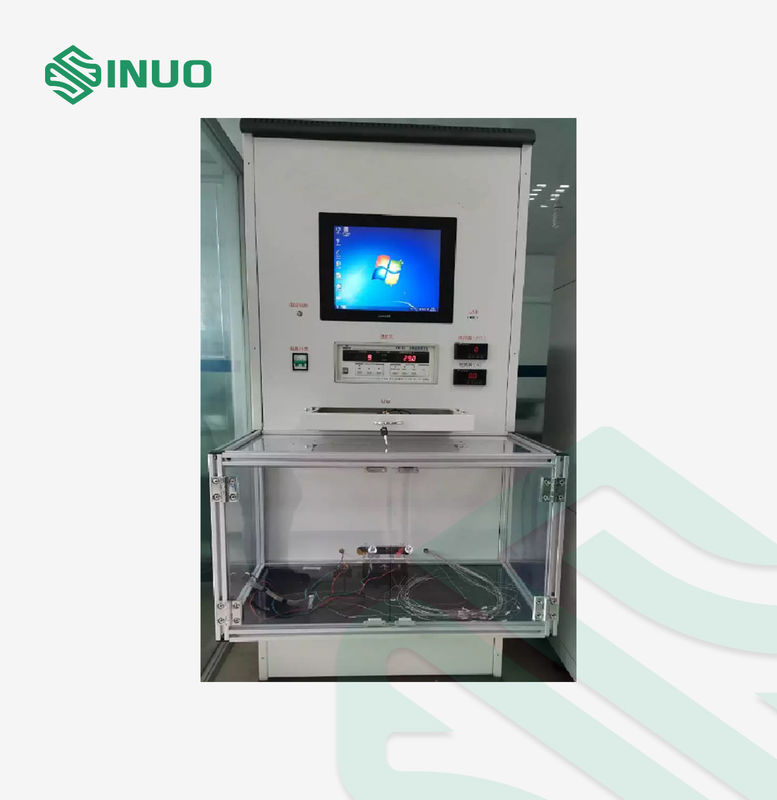

AC12V Ground Terminal Short-term High Current Resistance Test System 0AC12V Ground Terminal Short-term High Current Resistance Test System 1
