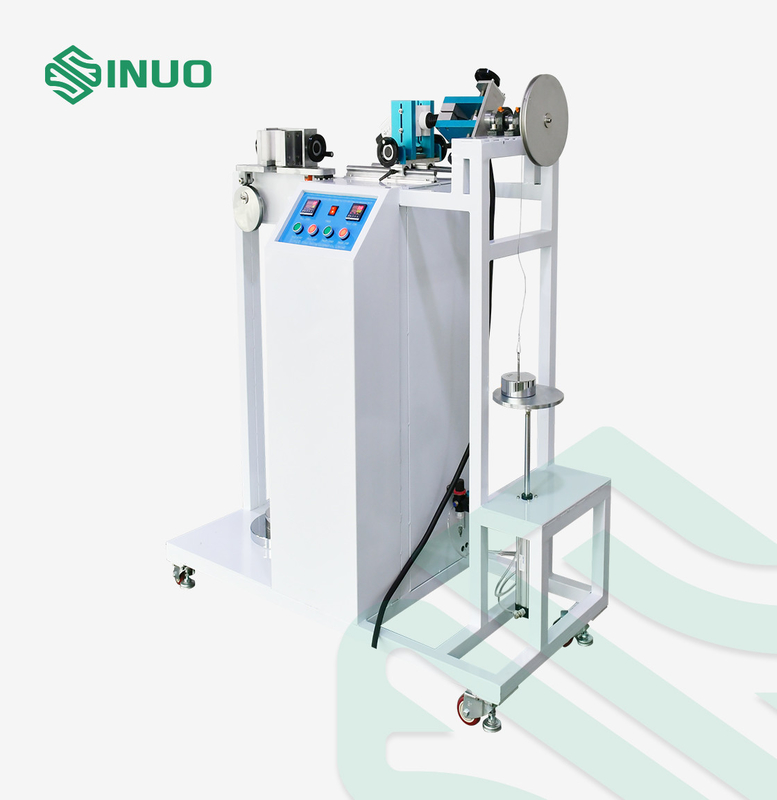

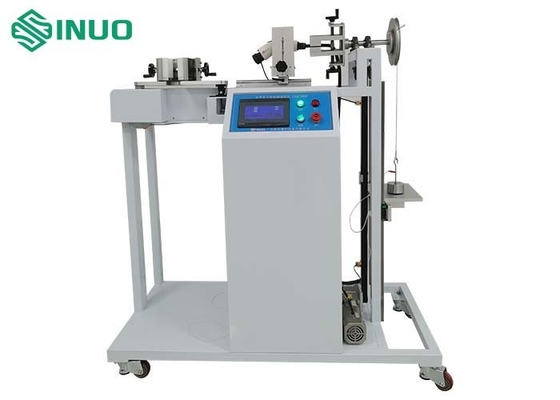

IEC60309-1 Charging Interface Cable Tension And Torque Test Equipment

IEC60309-1 Charging Interface Cable Tension And Torque Test Equipment

Brand Name:	Sinuo
Model Number:	SNQC1007
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Weight:

180kg

Drive Mode:

Electric

Tension Frequency:

1 Time/s

Dimensions:

W1600*D600*H1450mm

Number Of Pulls:

1-999999 Times

Torque Application Time:

0-99H59M59S

Torque Wheel:

100mm(Ф200mm) ±0.5mm

Apply Tension:

160N, 200N, 240N, 250N And 500N

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Cable Tension And Torque Test Equipment

IEC60309-1 Torque Test Equipment

Product Description

IEC60309-1 Charging Interface Cable Tension and Torque Test Equipment

Complied Standards & Clauses

Conforms to IEC 62196-1:2022, IEC60309-1:2012.

Product Overview

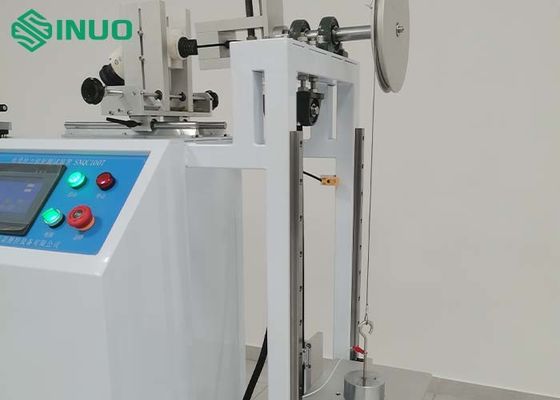

The pulling force is realized by using a motor-driven eccentric mechanism or screw mechanism, and the motor speed is adjustable to ensure that the time of each pulling force is accurate; the torque is realized by using a cylinder/motor, a tray, a weight and a time relay.Used to test the ability of charging vehicle plug and socket connection cable accessories to withstand specified tensile forces and moments. Weights are used to apply tension, and the weights and torque arms achieve torque. Use PLC to control the number of times of tension applied and the torque test time. The equipment will automatically stop when the number of tests or the test time is reached. After the test, the maximum allowable displacement of the flexible cable of the charging gun connector shall not exceed the standard required value.

Technical Parameters

Dimensions	About W1600D600H1450mm
Weight	About 180kg
Test items	Tensile and torque tests on supply plug and/or vehicle plug cables
Equipment structure schematic diagram	Refer to Figure 1 schematic diagra

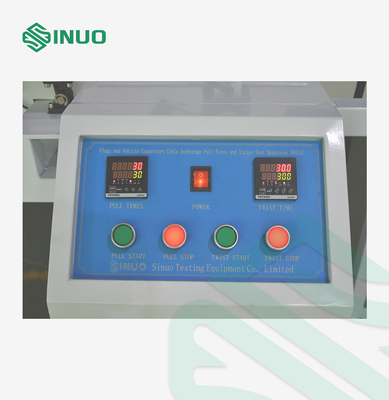

Control operation mode	PLC automatic control, touch screen operation
Drive mode	Electric
Apply tension	Meet the specifications of 160N, 200N, 240N, 250N and 500N.
Apply torque	One each meets the specifications of 0.6N·m, 0.7N·m, 1.2N·m, 1.5N·m, 2.3N·m, and 11.0N·m

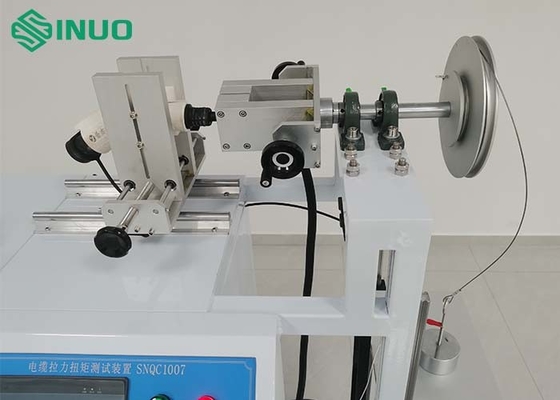

Torque wheel	100mm(Ф200mm) ±0.5mm
Tension frequency	1 time/s, detect the actual tension time through electrical signal
Number of pulls	1-999999 times, can be preset, default is 100 times ±1 time
Torque application time	0-99H59M59S, can be preset
Power outage protection	With power-off data storage and memory function
Fixture	A set of universal clamps
Weight matching selection table
