IEC 62196-1 2022 Hot Air Circulation Programmable High-temperature Aging Oven

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN889-225L

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export packing
Delivery Time: 30 Days
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Contact Now

Detail Information

Temperature Fluctuation: ±1℃ Capacity: 225L
Ambient Temperature: 5℃~+35℃ Relative Humidity: ≦85%RH
Power Supply: AC220V±5%/50Hz Control And Operation: Microcomputer PID Temperature Controller
Cabinet Size: Nner Box WDH=600×500×750mm, Vertical Temperature Range: Room Temperature ~ +250℃, Resolution 0.1℃
High Light:

Programmable High-temperature Aging Oven

,

IEC 62196-1 High-temperature Aging Oven

Product Description





IEC 62196-1:2022 Hot Air Circulation Programmable High-temperature Aging Oven



Complied Standards & Clauses




Conforms to IEC 62196-1:2022.



Product Overview




Samples and restrictions: Laboratories, electronic communications, auto parts, plastics, cables, electroplating, hardware, optoelectronics, plastic products, molds, shoe materials, spraying, printing, medical, aerospace universities, and other industries.

Application: This product is widely used in industrial and mining enterprise laboratories, medical and health, and scientific research units for drying, baking, wax melting, sterilization, and solidification.

Test principle: This instrument is also called a "digital display blast drying oven", "high-temperature oven", or "high-temperature aging oven".

Structure and features: Electric blast drying oven, microcomputer digital display temperature control, stainless steel liner, with observation window.

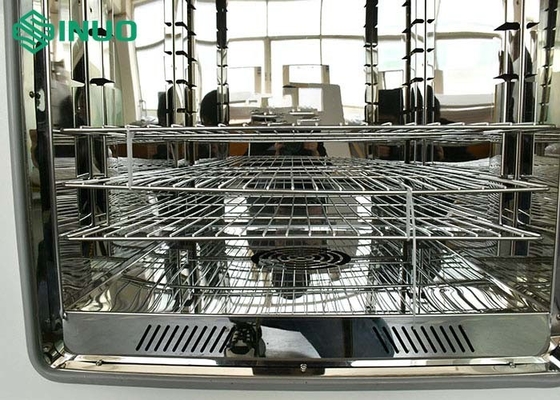

1. The outer body of the chamber is welded with high-quality steel plates, and the inner chamber is made of mirror stainless steel or galvanized plate. The four corners are arc-shaped, which is easy to clean. Its appearance is novel, beautiful, and energy-saving.

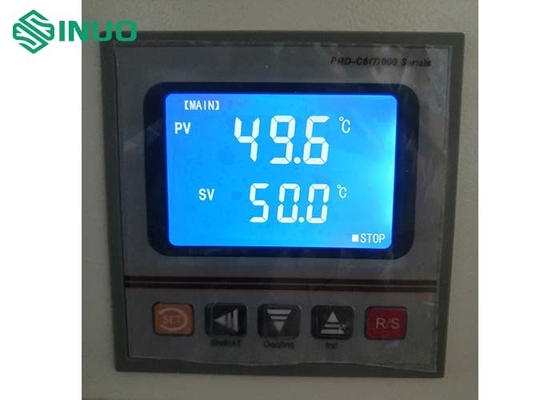

2. It adopts a microcomputer PID temperature controller with temperature control protection and a digital display. It has a timing function and the temperature control is accurate and reliable.

3. The hot air circulation system is composed of low-noise, high-temperature-resistant motors, and advanced air ducts to ensure uniform temperature and small fluctuations in the working room.

4. Independent temperature limit alarm system, which will automatically interrupt when the temperature limit is exceeded to ensure safe operation of the experiment without accidents.



Technical Parameters




Control and operation Microcomputer PID temperature controller with digital display
Cabinet size (optional)

35L: Inner box WDH=340×325×320mm, desktop

58L: Inner box WDH=420×395×350mm, desktop

43L: Inner box WDH=350×350×350mm, desktop/vertical

70L: Inner box WDH=450×350×450mm, desktop/vertical

136L: Inner box WDH=550×450×550mm, vertical

225L: Inner box WDH=600×500×750mm, vertical

Temperature range Room temperature ~ +250℃, resolution 0.1℃
Temperature fluctuation ±1℃
Function Microcomputer intelligent temperature control, timing function, PID self-tuning, over-temperature alarm, with observation window
Heating method Electric heating tube
Cabinet material The inner chamber is made of stainless steel, and the outer chamber is made of steel plate with spray-coated surface



Details

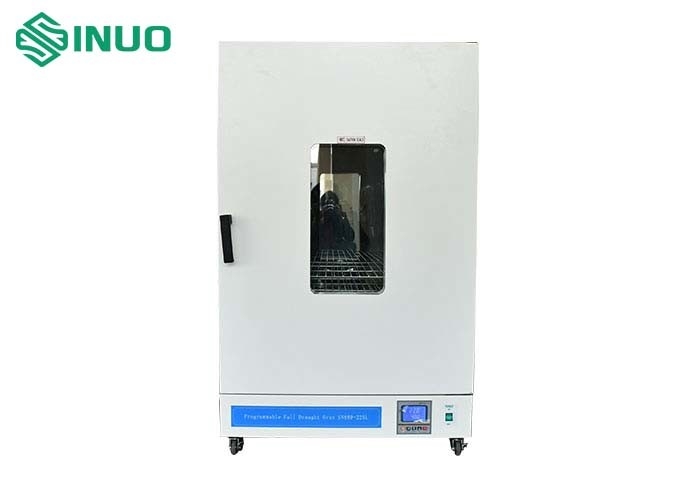

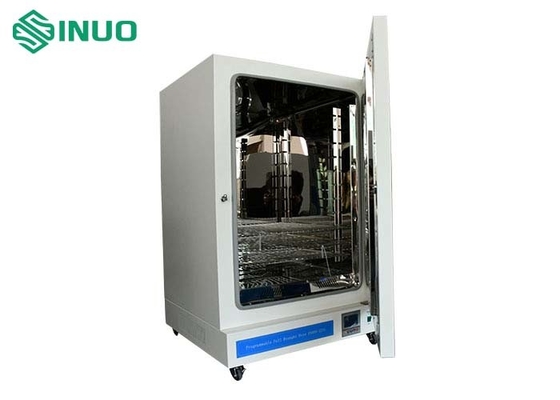

IEC 62196-1 2022 Hot Air Circulation Programmable High-temperature Aging Oven 0IEC 62196-1 2022 Hot Air Circulation Programmable High-temperature Aging Oven 1
