1KW Elevator Cable Center Core Tensile Expansion Strength Testing Machine

1KW Elevator Cable Center Core Tensile Expansion Strength Testing Machine

Brand Name:	Sinuo
Model Number:	SNBC-2000
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Equipment Weight:

100kg

Displacement Resolution:

0.01mm

Test Force Display Range:

0～500kg

Stretch Space:

0～1000mm

Displacement Speed Control Accuracy:

Better Than ±1%

Displacement Measurement Accuracy:

Better Than ±1%

Power Supply:

AC220V±10%/50-60Hz 1kW

Equipment Dimensions:

500×500×1600 (mm) W×D×H

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Tensile Expansion Strength Testing Machine

1KW Elevator Cable Testing Machine

Center Core Elevator Cable Testing Machine

Product Description

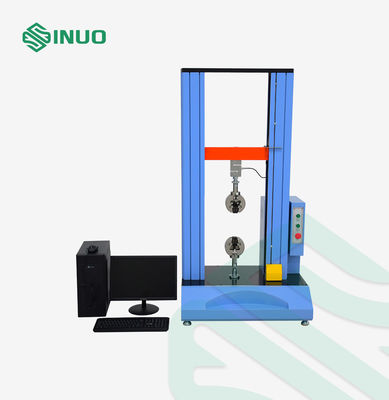

1KW Elevator Cable Center Core Tensile Expansion Strength Testing Machine

Complied Standards & Clauses

Conforms to IEC60245-1-2008 clause 5.6.3.4, IEC60245-2-1998 clause 3.4, IEC60227-1:2007 clause 5.6.3.4, IEC60227-2:2003 clause 3.4 and clause 3.6.

Product Overview

Samples and restrictions: Elevator cable center core.

Application: Expansion strength test for elevator cable center core.

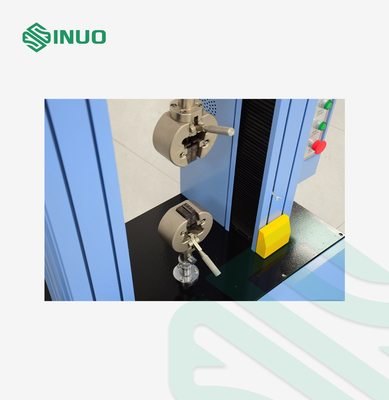

Test principle: Configure the tension clamp, take a 1m long sample from the finished cable and weigh it. Peel off all coverings within 0.2m from both ends of the specimen and remove the insulated wire core. The central pad core including the central load-bearing core should withstand a tensile force equivalent to the mass of 300m of cable. The pulling force should be applied for 1 minute.

Usage environment: Power supply: AC220V±10%/50-60Hz 1kW , operating temperature 0-40℃, humidity 30%-90%;

Technical Parameters

Equipment dimensions	About: 500×500×1600 (mm) W×D×H
Equipment weight	100kg
Maximum test force	2000N
Test force display range	0～500kg
Test force classification	There is no binning throughout the process, and the resolution remains unchanged throughout the process.
Test force measurement accuracy	Better than ±1% of the indication value
Displacement resolution	0.01mm
Displacement measurement accuracy	Better than ±1% of the indication value
Crossbeam moving speed range	25mm/min～500mm/min stepless speed regulation, speed can be set arbitrarily
Displacement speed control accuracy	Better than ±1%
Stretch space	0～1000mm
Power supply	AC220V±10%/50-60Hz 1kW
Operating temperature	0-40℃
Humidity	30%-90%

Details

1KW Elevator Cable Center Core Tensile Expansion Strength Testing Machine 0
