IEC60950-1 2005 Pendulum Ball Impact Performance Test Device

Name

IEC60950-1 2005 Pendulum Ball Impact Performance Test Device

Brand Name:	Sinuo
Model Number:	SN2202
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Lifting Method:

Electric

Working Temperature:

0-40℃

Humidity:

30%-90%

Impact Steel Ball:

Φ50.8mm, 535g Steel Ball

Drop Height:

0.4-1.5m Adjustable

Power Supply:

AC220V±10%/50-60Hz

Clamping Method:

Electromagnet Attraction And Release

Impact Method:

Vertical Drop And Swing Shock, Switchable

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Pendulum Ball Impact Performance Test Device

,

Ball Impact Performance Test Device

Product Description

IEC60950-1:2005 Pendulum Ball Impact Performance Test Device

Complied Standards & Clauses

Conforms to IEC60950-1:2005 clause 4.2.5, IEC60598-1:2014 clause 4.13.4a, IEC60065:2005 clause 12.1.3 and figure 8.

Product Overview

Samples and restrictions: Information technology equipment, lighting fixtures.

Application: Conduct drop and impact performance tests on equipment casings.

Test principle: Free vertical drop or free swing impact specimen.

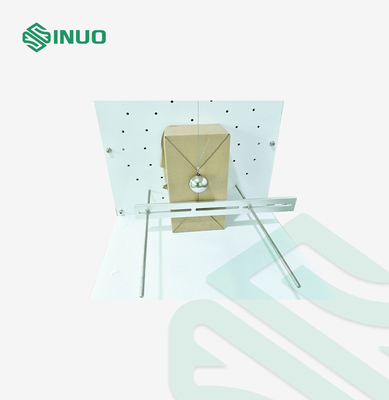

Structure and features: The equipment can perform vertical drop impact and swing horizontal impact.

Usage environment: Power supply: AC220V±10%/50-60Hz, working temperature 0-40℃, humidity 30%-90%;

Technical Parameters

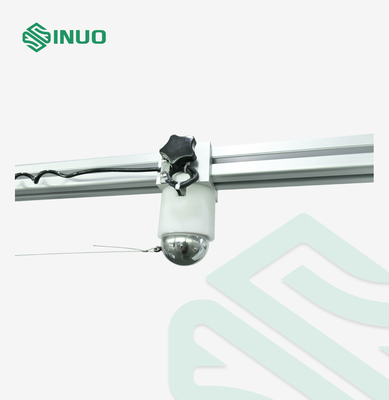

Impact steel ball	Φ50.8mm, 535g steel ball
Impact method	Vertical drop and swing shock, switchable
Drop height	0.4-1.5m adjustable
Impact energy	G=mgH can achieve the following table J or other required impact energy
Lifting method	Electric

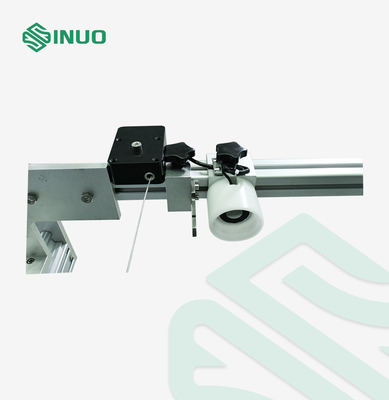

Clamping method	Electromagnet attraction and release

Details

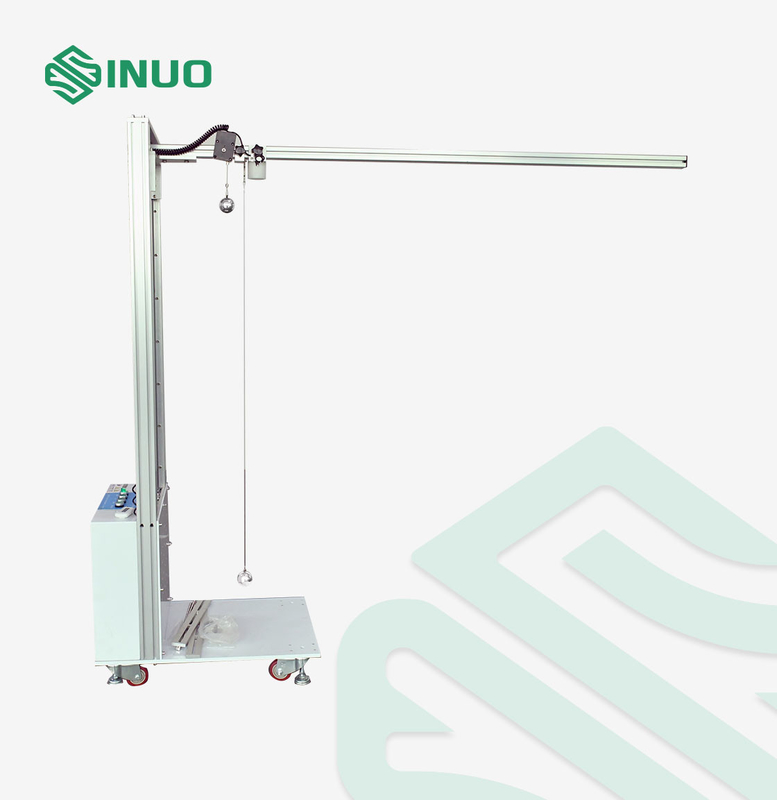

IEC60950-1 2005 Pendulum Ball Impact Performance Test Device 1
