Multi-position Mobile Manual Release Socket Mechanical Strength Test Device

Multi-position Mobile Manual Release Socket Mechanical Strength Test Device

Brand Name:	Sinuo
Model Number:	SN2129A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Equipment Weight:

50kg

Distance From Fixed End:

2250mm

Drops Frequency:

8 Times

Drop Height:

1000mm

Working Temperature:

0-40℃

Drop Method:

Manual Release

Equipment Dimensions:

2400×850×400 (mm) W×D×H

Rotating Device:

45° Indexing, 8 Directions Rotatable

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Mobile Manual Release Socket

Multi-position Manual Release Socket

Mechanical Strength Test Device

Product Description

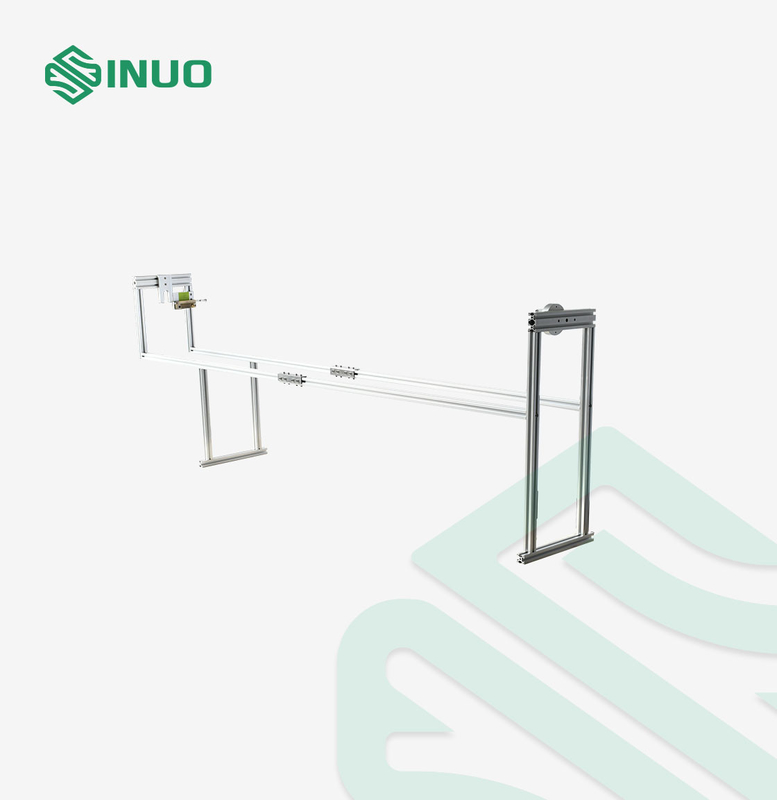

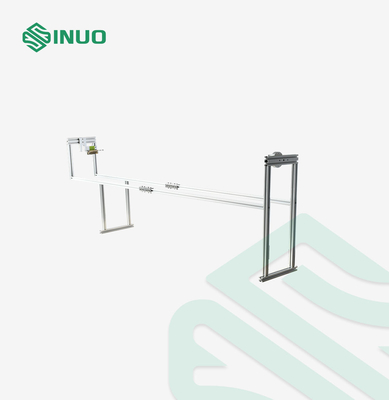

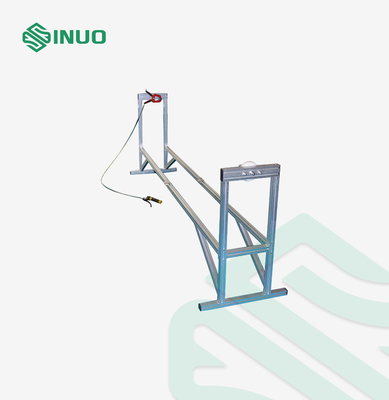

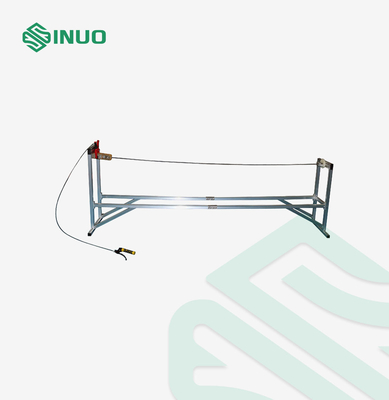

Multi-position Mobile Manual Release Socket Mechanical Strength Test Device

Complied Standards & Clauses

Conforms to IEC62196-1:2022.

Product Overview

Samples and restrictions: Charging gun cable assembly.

Application: Check the mechanical strength of the charging gun cable assembly.

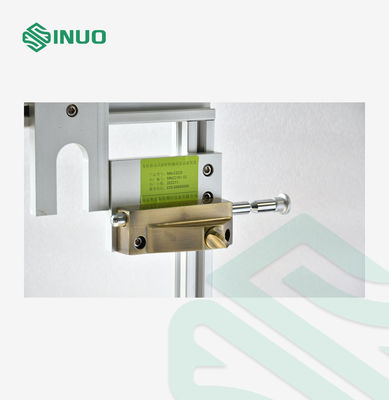

Test principle: Use a clamp to fix the sample at a height of 1000mm from the ground and drop it to verify its mechanical strength.

Usage environment: Power supply: -, working temperature 0-40℃, humidity 30%-90%;

Technical Parameters

Equipment dimensions	Approx.: 2400×850×400 (mm) W×D×H
Equipment weight	50kg
Drop height	1000mm
Distance from fixed end	2250mm
Drops frequency	8 times
Rotating device	45° indexing, 8 directions rotatable
Drop method	Manual release

Details

Multi-position Mobile Manual Release Socket Mechanical Strength Test Device 0
