IEC60309-1 Charging Vehicle Plug And Socket Cable 140N Bending Testing Machine

IEC60309-1 Charging Vehicle Plug And Socket Cable 140N Bending Testing Machine

Brand Name:	Sinuo
Model Number:	SNQC1009
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Equipment Weight:

150kg

Test Station:

Single Station

Bending Angle:

0-360° Adjustable

Bending Rate:

0-60 Times/min

Drive Mode:

Servo Motor Drive

Equipment Dimensions:

W1000*D800*H1600mm

Load Weight:

20N,25N,50N,75N,100N,140N

Power Supply:

AC220V±10%/50-60Hz

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

IEC60309-1 Charging Vehicle Plug Cable

140N Bending Testing Machine

IEC60309-1 Charging Vehicle Plug

Product Description

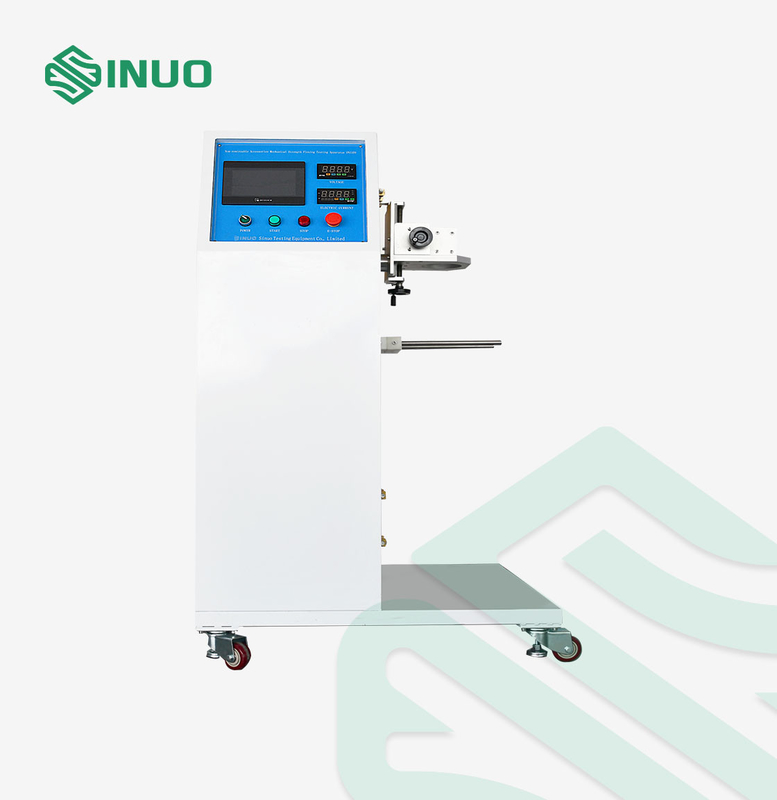

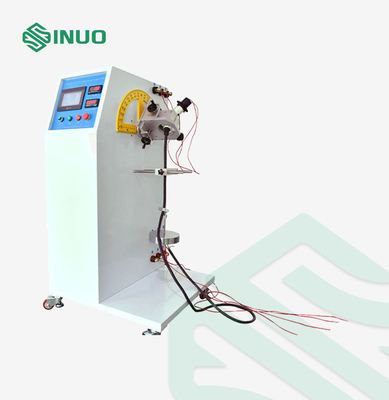

IEC60309-1 Charging Vehicle Plug and Socket Cable 140N Bending Testing Machine

Complied Standards & Clauses

Conforms to IEC62196-1:2014 clause 7.11 and clause 7.15, IEC60309-1:2012 clause 24.4.

Product Overview

Samples and restrictions: Electric vehicle charging interfaces, industrial plugs, sockets and couplers.

Application: Used to test the bending connection part of the "mechanical strength" part of the power connection cable of the charging vehicle plug and socket.

Test principle: The servo motor is used to drive the turntable to drive the work piece to swing left and right, and the machine will automatically stop when the number of times is reached.

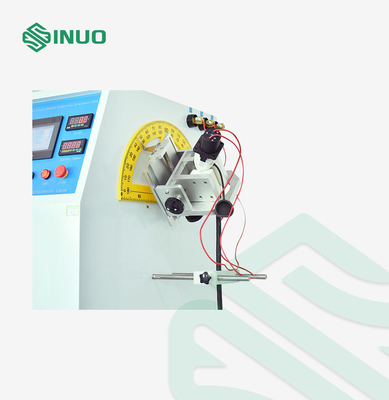

Structure and features: The equipment is driven by a servo motor, and large-size specimens are installed on aluminum plates, which can make the swing axis coincide with the point where the cord enters the instrument as much as possible when clamping the specimen, thereby achieving the minimum lateral displacement of the cord and load.

Usage environment: Power supply: AC220V±10%/50-60Hz , power 3KW.

Technical Parameters

Equipment dimensions		Approx.: W1000D800H1600mm
Equipment weight		150kg
Test station		Single station
Electrical control method		PLC intelligent integrated control, 7-inch human-machine touch interface operation
Drive mode		Servo motor drive
Specimen clamping method		Mechanical clamping, adjustable clamping point position

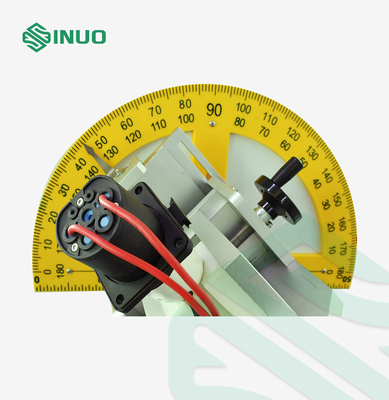

Bending angle		0-360° adjustable (default ±45°)
Bending rate	0-60 times/min, can be preset
Bending frequency	0~999999 can be preset, default is 20000 times
Load weight	20N,25N,50N,75N,100N,140N
Load power supply	External connection, optional load cabinet with adjustable voltage between conductors 0-250V and adjustable current AC 0-400A
Test judgment	Judgment based on the signal given by whether the current is conducting or not
