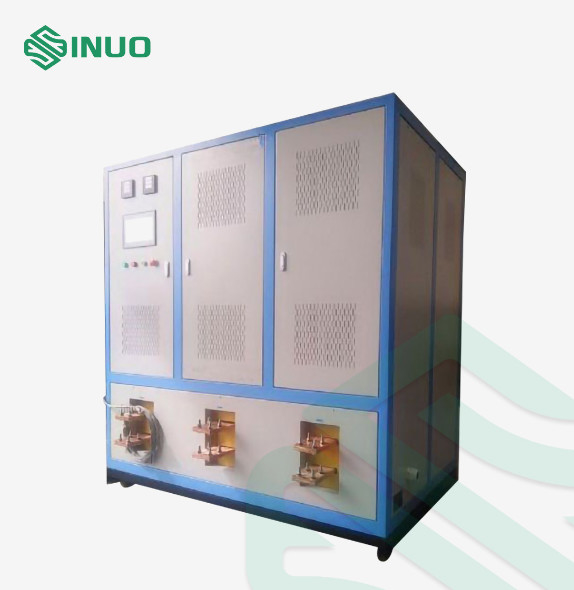

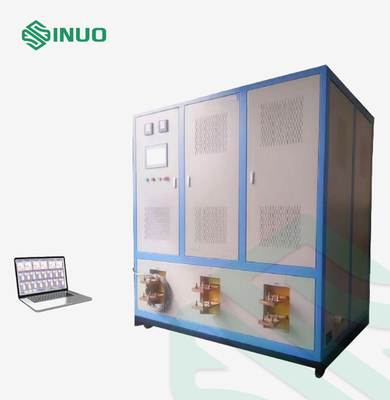

IEC62368-1 300V Limited Short Circuit Current Withstand Test System



Complied Standards & Clauses




Conforms to Appendix R in IEC62368-1:2019.



Product Overview




The system uses an energy storage device to store energy according to the set parameters, and discharges when the set voltage is reached to realize the large current output test function. The attenuation oscillation frequency of the current is 50±2Hz, simulating the power frequency, and the peak current can reach 14KA (10KA sine wave peak), it will automatically charge for the next round of testing after the discharge is completed.

During the test process, the discharge current waveform is recorded and the current-time curve is automatically generated.

Meet the testing requirements of power supply power of 300V*10KA=3MVA in ordinary laboratories;

IEC62368-1 300V Limited Short Circuit Current Withstand Test System 0

In the above schematic block diagram, the design is damped attenuation oscillation (α<1), and the loop equation is:

IEC62368-1 300V Limited Short Circuit Current Withstand Test System 1



IEC62368-1 300V Limited Short Circuit Current Withstand Test System 2

IEC62368-1 300V Limited Short Circuit Current Withstand Test System 3



The actual current waveform is shown in Figure a above.



Technical Parameters




Discharge peak current Digitally configurable
Discharge voltage Programmable control
Discharge voltage range DC10-300V, automatically controlled by program
Discharge peak limit current Not less than 14KA (sine wave peak value of 10KA)
Discharge time

Not less than 20ms, attenuate oscillation according to sinusoidal curve

(Using special charging and discharging components for high-efficiency energy storage, no memory effect, long life)

Deviation range during test Current 95% ~ 105%; voltage 100% ~ 105%; frequency 95% ~ 105%;
Current accuracy Level 0.5 or better, resolution ≤1A;
Voltage accuracy Level 1 or better, resolution ≤1V;
Discharge resistor

1.Made of constantan wire material, the resistance is stable and reliable for a long time

2. Special high-current contactor switch is used for switching control

Current waveform Using high-precision Rogowski coil measurement, the measuring range is 20KA and the bandwidth can reach 2MHz.
Control host

1. Use an integrated LCD touch screen computer host with a 15-inch monitor, 64G solid-state drive, and 8G memory.

2. Configure a high-speed data acquisition card to accurately measure the discharge current waveform.

3. The current waveform curve can be stored and exported.

4. After the parameters are set, the program automatically tests, automatically analyzes the loop impedance, and automatically adjusts the voltage to adapt.

Protective function Equipped with overvoltage and overcurrent protection function
Device output interface

A. Protection switch SCPD (such as 25A) or fuse: the user can connect it externally by himself

B. Output wire: According to the cross-sectional area of ​​the wire number, the user can connect it by himself

C. When the equipment leaves the factory, an acrylic protective cover is provided, which can be adapted to most products under test.

Device power supply AC220V 50Hz/60Hz,5KVA,
Equipment dimensions Approximate W1800×D900×H1800mm
Equipment weight 750Kg
Working environment Temperature 0~30℃, relative humidity no more than 80% and no condensation, steam and corrosive gas



Details




IEC62368-1 300V Limited Short Circuit Current Withstand Test System 4
