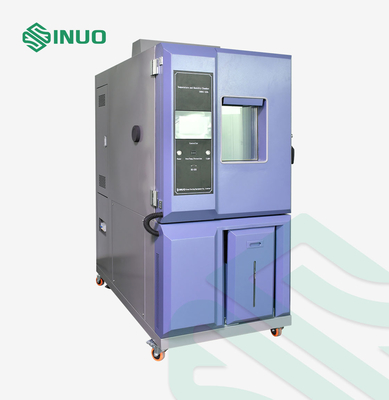

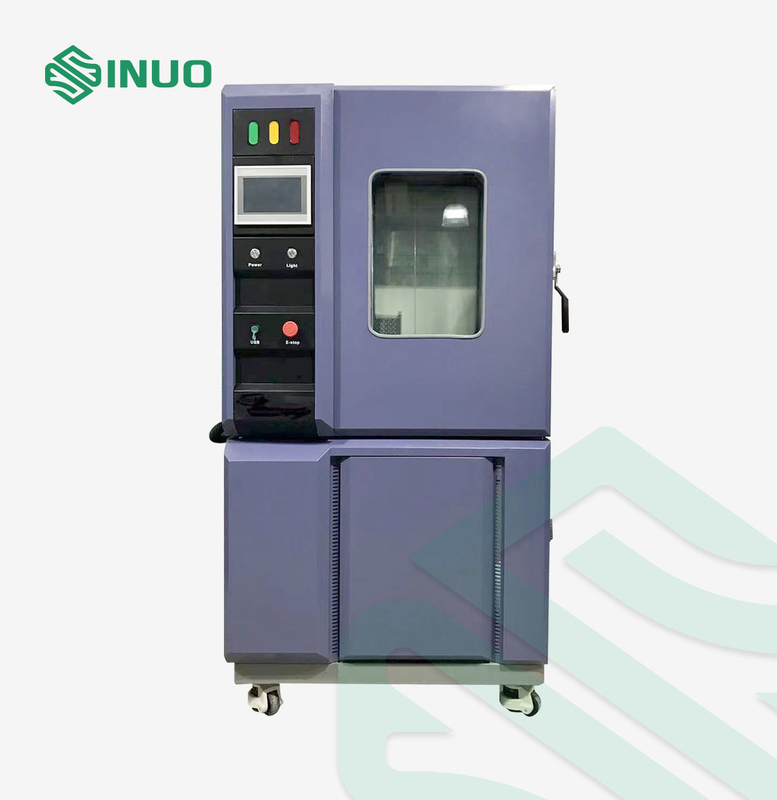

IEC60068-3 Water-cooled -70℃ High Low Temperature Climatic Test Chamber 1000L

IEC60068-3 Water-cooled -70℃ High Low Temperature Climatic Test Chamber 1000L

Brand Name: Sinuo
Model Number: SN885-1000L
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 20 sets/month
Detail Information
Place of Origin:
China
Certification:
Calibration Certificate (Cost Additional)
Temperature Uniformity:
±2℃
Temperature Deviation:
≦±2.0℃
Temperature Fluctuation:
±0.5℃
Humidity Fluctuation:
±2.0%RH
Humidity Range:
20%〜98%RH
Humidity Uniformity:
±3.0%RH (no Load)
Inner Box Size:
1000×1000×1000mm(W*D*H)
Outer Box Size:
1700×3000×2200mm(W*D*H)
Packaging Details:
Plywood case
Supply Ability:
20 sets/month
Highlight:

High Low Temperature Climatic Test Chamber

,

1000L Water-cooled Climatic Test Chamber

,

IEC60068-3 Climatic Test Chamber

Product Description





IEC60068-3 Water-cooled -70℃ High Low Temperature Climatic Test Chamber 1000L



Complied Standards & Clauses




According to IEC60068-2-1:2007, IEC60068-2-2:2007, IEC60068-2-78:2001, IEC60068-2-30:2005.



Equipment Overview




Power supply: AC380V±5%/50Hz (R, S, T, N phase plus ground wire) (voltage fluctuation ≦±10%), ground resistance ≦4Ω

Ambient temperature: 5℃~+35℃, Relative humidity: ≦85%RH. There should be no high concentration of dust, corrosive gas, and flammable and explosive atmosphere around.



Technical Parameters




Control and operation PLC and touch screen intelligent control system
Cabinet size (optional)

408L: Inner box WDH=800×600×850mm,

outer box WDH=1060×2300×1880mm

960L: Inner box WDH=1800×800×1000mm,

outer box WDH=2200×3350×2050mm

1000L: Inner box WDH=1000×1000×1000mm,

outer box WDH=1700×3000×2200mm

Temperature range (optional)

A: -20~150℃;

B: -40~150℃;

C.-70~150℃

Linear speed

3℃/min ;5℃/min ;10℃/min ;15℃/min;20℃/min

(Can be customized according to customer requirements)

Temperature deviation ≦±2.0℃
Temperature fluctuation ±0.5℃
Temperature uniformity ±2℃
Heating and cooling rate

Heating rate: from -55℃ to +130℃ linearly 15℃/min at no load

Cooling: from +130℃ to -55℃ linearly 15℃/min at no load

(Note: The temperature rise and fall rate is measured according to the relevant provisions of the IEC60068-3 standard, and the sensor is at the air outlet position)

Humidity range 20%〜98%RH
Humidity deviation ±3.0%RH(>75%RH);±5.0%RH(≤75%RH)
Humidity uniformity ±3.0%RH (no load)
Humidity fluctuation ±2.0%RH
Temperature and humidity range diagram IEC60068-3 Water-cooled  -70℃ High Low Temperature Climatic Test Chamber 1000L 0
Main system components

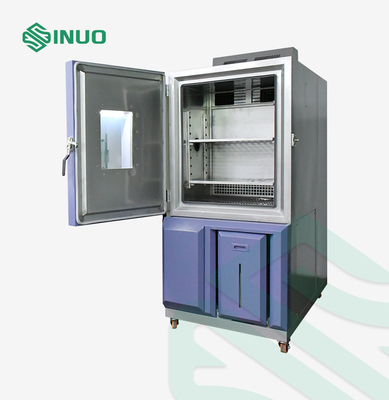

Cabinet The inner box is made of SUS304# stainless steel plate with rounded corners, smooth and easy to clean.
The outer box is made of 304# brushed stainless steel plate with rounded corners, smooth and smooth, and easy to clean.
Test hole: The inner and outer boxes are equipped with a threading hole with a rubber plug
Insulation material: polyurethane foam
Observation window: Double-layer explosion-proof tempered glass door

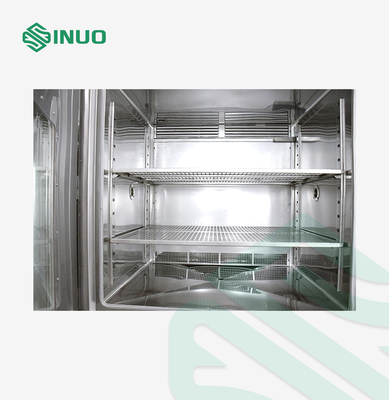

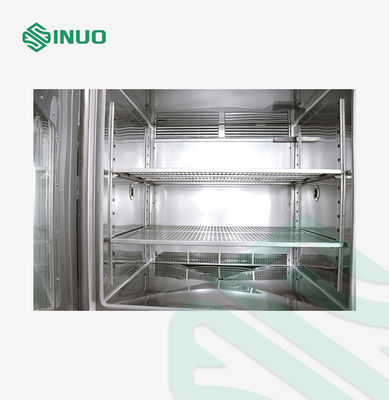

Shelf: Made of 304 stainless steel, the shelf is removable
Heating system Heating method: electric heating
High-quality nickel-chromium alloy wire electric heater, non-contact control method (SSR)
Humidification system Humidification method: using external humidification structure
Cooling System German Bock semi-closed compressor or German Bitzer semi-closed compressor
Non-fluorine environmentally friendly refrigerant R404A R23 complies with environmental regulations and is safe and non-toxic.
Shell and tube condenser (water-cooled).
High-performance fin type automatic load capacity adjustment, can be used in low temperature and high humidity conditions for a long time without frost.
Control System Touch screen: Weinview programmable temperature and humidity controller (7-inch 16-bit true color touch screen)
Temperature control: PID self-tuning, using Class A PT100 platinum resistance sensor

Function: fixed value test and program test

Fixed value test: When the test environment only requires a single temperature and humidity, select this mode and set the required temperature, humidity and running time.

Program test: When the test environment requires a variety of temperatures and humidity, select this mode to set the temperature, humidity and running time of each program, set the program running sequence, and use 100 program groups






Details



IEC60068-3 Water-cooled  -70℃ High Low Temperature Climatic Test Chamber 1000L 1IEC60068-3 Water-cooled  -70℃ High Low Temperature Climatic Test Chamber 1000L 2
