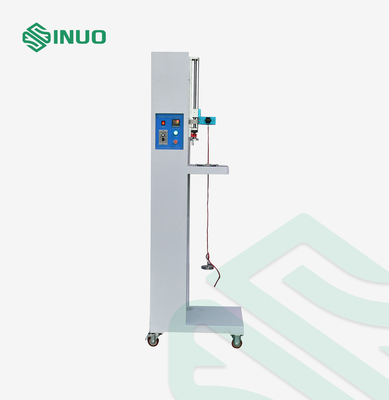

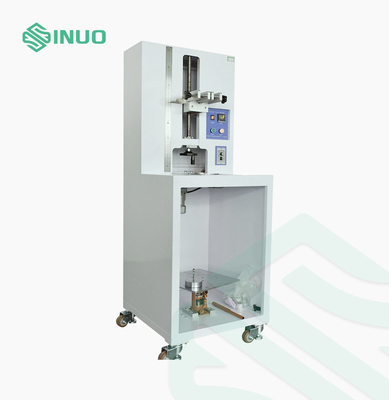

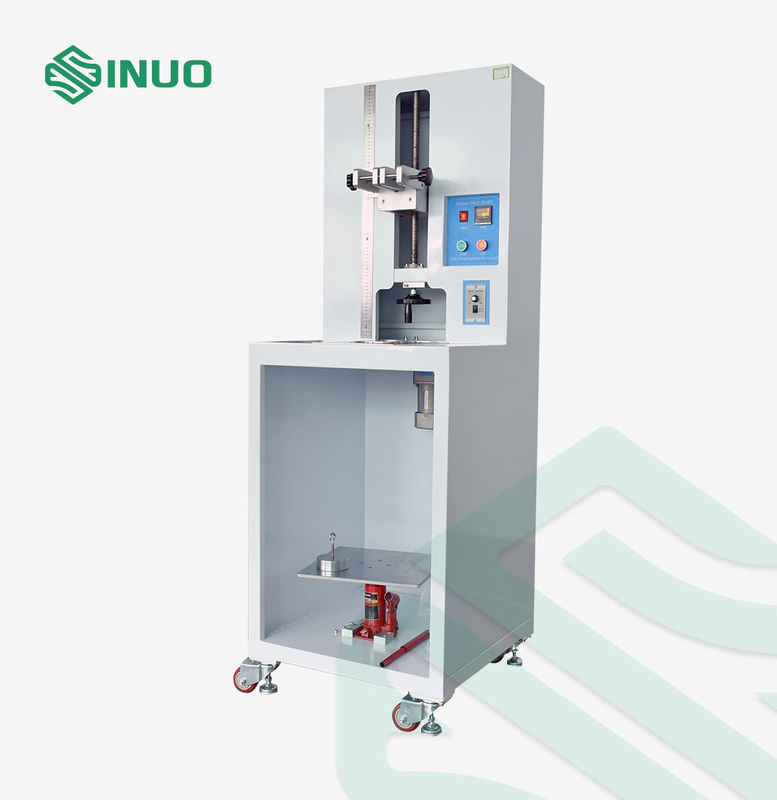

IEC60884-1 Electric Vehicle Connector Terminal Mechanical 75mm Test Equipment
Product Details:
Place of Origin: | China |
Brand Name: | Sinuo |
Certification: | Calibration Certificate (Cost Additional) |
Model Number: | SNQC1012 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Export packing |
Delivery Time: | 30 Days |
Payment Terms: | T/T |
Supply Ability: | 10 Sets Per Month |
Detail Information |
|||
Equipment Weight: | 260kg | Station: | Single Station |
---|---|---|---|
Rotation Diameter: | 75mm /76mm | Casing Diameter: | 6.5~44.5mm |
Height Distance: | 260~660mm | Speed Of Work: | 10±2 Rpm, 9±1 Rpm, Adjustable |
Equipment Dimensions: | 1000×700×1400(mm)W×D×H | Control And Operation Methods: | Electrical Control, Button Operation |
Highlight: | IEC60884-1 Electric Vehicle Connector Terminal,Mechanical Electric Vehicle Connector Terminal,75mm Electric Vehicle Connector Terminal |
Product Description
IEC60884-1 Electric Vehicle Connector Terminal Mechanical 75mm Test Equipment
Complied Standards & Clauses
Conforms to IEC60884-1:2006 clause 12.2.5,clause 12.3.10 and figure 11, IEC60669-1:2007 clause 12.2.5,clause 12.3.10 and figure 10, IEC60998-2-2:2002 clause 10.105 and figure 101, UL486A-B:2009 clause 9.3.2.1,clause 9.3.2.3,clause 9.3.2.4 and table 26 and figure 6.
Product Overview
Samples and restrictions: Screw-type terminals, thread less terminals and connectors.
Application:Check whether screw-type terminals and screw less terminals can withstand the mechanical stresses that occur during normal use. It is mainly used to judge whether the design and structure of thread clamping terminal blocks meet the requirements of not excessively damaging the wire when clamping the wire.
Test principle: It adopts guide rail screw structure. The number of tests can be preset before use. When the set value is reached, the machine will automatically stop and sound an alarm signal.
Technical Parameters
Equipment dimensions | 1000×700×1400(mm)W×D×H |
Equipment weight | 260kg |

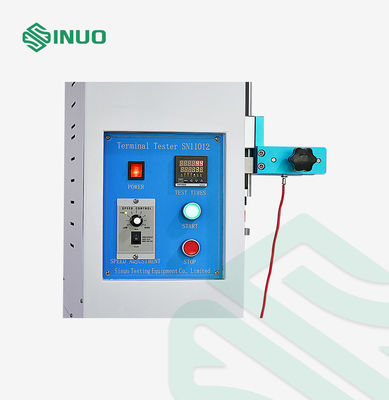

Control and operation methods | Electrical control, button operation |
Station | Single station |
Speed of work | 10±2 rpm, 9±1 rpm, adjustable |
Rotation diameter | 75mm /76mm |
Test time | 0~99 min 59s, automatic shutdown when the time is reached |
Load weight | 0.4,0.7,0.9,1.4,2.0,2.9,4.5,6.8,9.5,10.4,14,15,16.8,20,22.7,50,70.3kg(Over 8.2kg, use stacked weights) |
Height distance | 260~660mm |
Casing diameter | 6.5~44.5mm, 12 pcs in total |
Height adjustment method | Manual adjustment, with screw slide lifting mechanism |
Support mechanism | The weight tray is installed using a jack |
