UN 38.3 Sine Shock Control Vibration 51mm Test System 5～3500Hz

UN 38.3 Sine Shock Control Vibration 51mm Test System 5～3500Hz

Brand Name:	Sinuo
Model Number:	SN553
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Vibration Isolation Frequency:

3Hz

Countertop Screw:

17*M8

Continuous Displacement:

51mm

Magnetic Flux Leakage:

<1MT

Frequency Range:

5～3500Hz

Sine Force:

600kgf (6000N)

Random Force:

600kgf (6000N)

Impact Force:

1200kgf (12000N)

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

51mm Vibration Test System

3500Hz Vibration Test System

IEC60335-2-24 Vibration Test System

Product Description

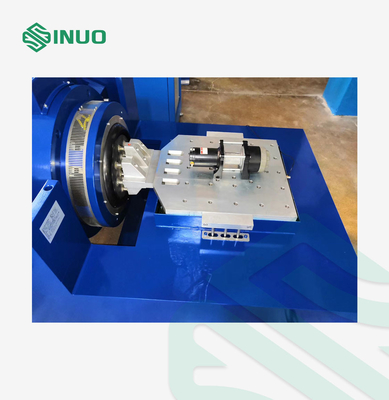

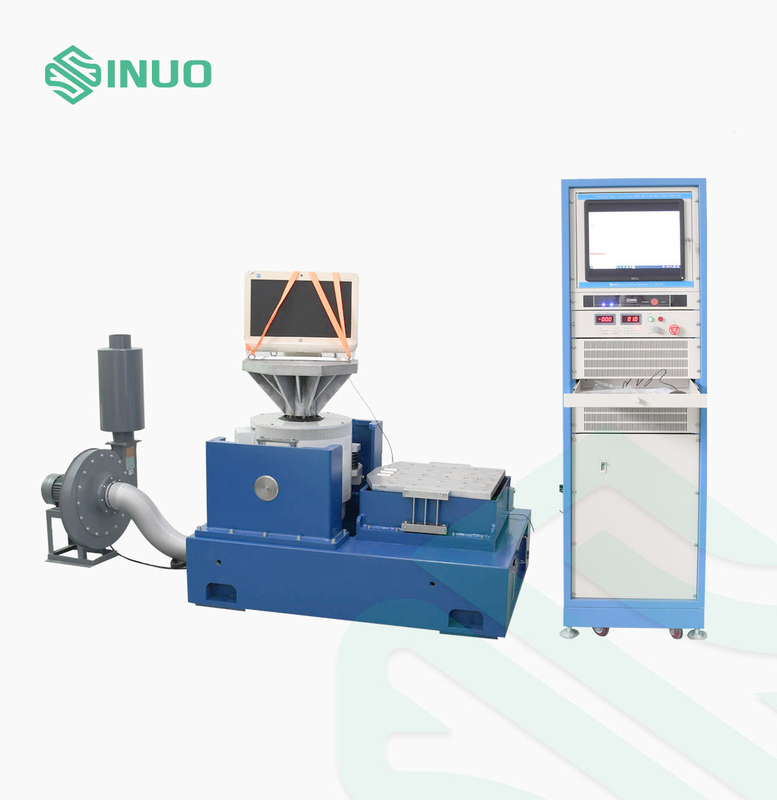

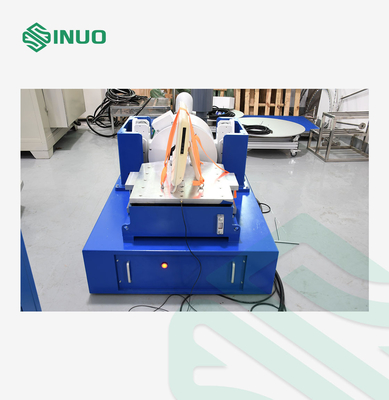

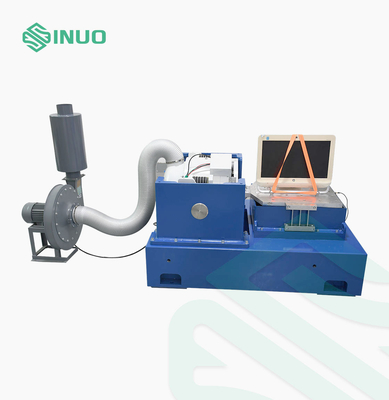

UN 38.3 Sine Shock Control Vibration 51mm Test System 5～3500Hz

Complied Standards & Clauses

This vibration system is required by UN 38.3 clause 4.3 test T.3, IEC 62133-1:2017 clause 7.2.2, IEC 62133-2:2017 clause 7.3.8.1, etc.

Product Overview

Vibration testing is the act of exciting or shocking a component or device to see how it would react in a real environment. The application range of vibration test is extremely wide, from industrial products such as circuit boards, aircraft, ships, rockets, missiles, automobiles and household appliances.

Technical Parameters

Vibration generator	DC-600	DC-2000
Sine Force	600kgf (6000N)	2000kgf (20000N)
Random Force	600kgf (6000N)	2000kgf (20000N)
Impact Force	1200kgf (12000N)	4000kgf (40000N)
Frequency Range	5～3500Hz	5～3500Hz
Continuous Displacement	51mm	51mm
Vibration Isolation Frequency	3Hz	2.5Hz
Level One Resonant Frequency	3300±5%Hz	2600±5%Hz
Countertop Screw	17*M8	17*M10
Magnetic Flux Leakage	<1MT	<1MT
Maximum Speed	2m/s	2m/s
Maximum Acceleration	750m/s²(75g)	980m/s²(100g)
Equivalent Mass of Moving Parts	8kg	20kg
Dynamic Coil Diameter	Φ230mm	Φ280mm
Max. Loading	300Kg	300Kg
Weight	590kg	2695kg
Switching Power Amplifier	(KA-5)	KA-21
Amplifier Output	5KVA	21KVA
Rated Output Voltage	120Vrms	120Vrms
Signal to Noise Ratio	>65dB	>65dB
Power Amplifier Efficiency	＞95%	＞95%
System Protection	Temperature protection, over-displacement protection, over-voltage protection, over-current protection, under-voltage protection, external protection, logic fault protection	Temperature protection, over-displacement protection, over-voltage protection, over-current protection, under-voltage protection, external protection, logic fault protection
Dimensions	1800900800mm	1800900800mm
Weight	240kg	450kg

Details

Vibration machine selection formula and vibration generator structure diagram

1. The test conditions provided by customer’s company;

2. Test type: Sine sweep; Random

3. Frequency response range: 2-5000Hz

4. Formula: A(g)=(2πf)2Dcm/980≒A=0.002DmmF²

D=A/0.002F²

F=M(kg) ×A(g)

Vibration Table Body Configuration

1. Moving coil

The vibrating table is equipped with cast and manually machined moving coils, optoelectronic load support system and dual bearing axial guidance. Dual bearing guidance is a unique feature that helps reduce dynamic axial crossing and rotation during vibration testing for superior durability.

2. Excitation coil

Double magnetic circuit structure, low flux leakage, uniform magnetic field.

3. body surface

Using advanced phosphating treatment and car paint technology, it has long-term anti-wear and anti-rust effects.

4. Table refrigeration:

Adopt low-noise fans and improve the air intake structure of the table body. The excitation coil adopts a honeycomb air duct, and the middle magnetic ring adopts a double-layer shunt air duct. A new air duct design is adopted to enhance the cooling effect.
