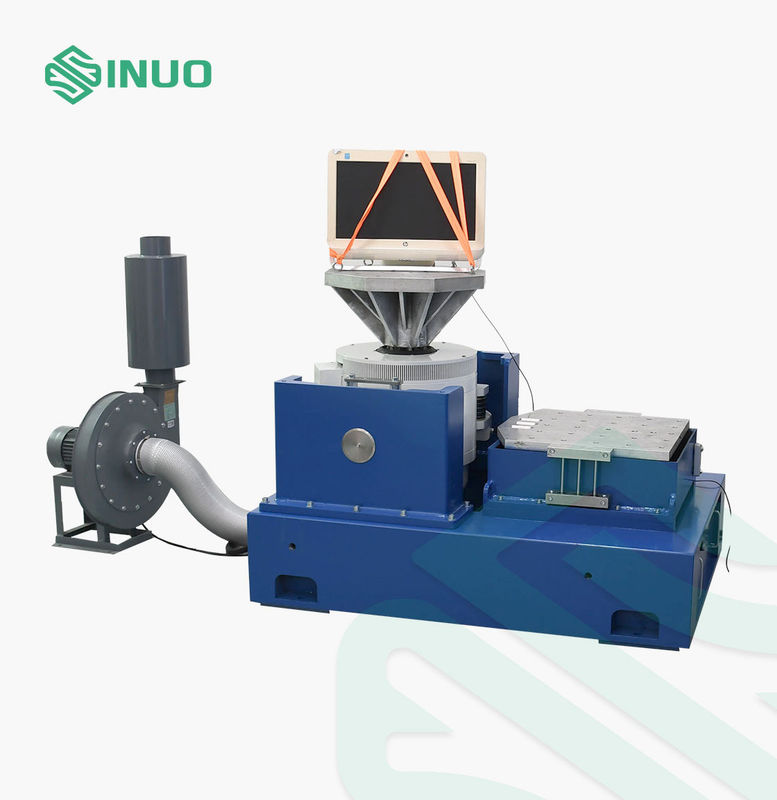

ISO EV Battery Pack Vibration Testing System Equipment 2800 Hz

Product Details:

Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN553- EV211HG50VT50VCS-2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export packing
Delivery Time: 30 Days
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Contact Now

Detail Information

Maximum Load: 300 Kg Maximum Speed: 2m/s
Maximum Displacement: 51 Mm P-p Frequency Range: 1~4500 Hz
Maximum Acceleration: 100G (980 M/s2) Maximum Random Exciting Force: 600Kg.f (6860N) R.ms
Maximum Sinusoidal Excitation Force: 700Kg.f (6860N) Peak Maximum Impact Excitation Force: 1400Kg.f(11760N) Peak

Product Description





ISO EV Battery Pack Vibration Testing System Equipment 2800 Hz



Complied Standards & Clauses




Conforms to UN 38.3, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM.



Product Overview




Vibration testing is the act of exciting or shocking a component or device to see how it would react in a real environment. The application range of vibration test is extremely wide, from industrial products such as circuit boards, aircraft, ships, rockets, missiles, automobiles and household appliances.

Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards



Technical Parameters




SA-6K digital switching power amplifier
Output power 12KVA
Output voltage 120V
Output current 100A
SNR >65dB
Amplifier size D900mm×L600mm×H1130mm
Servo protection system
Function Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss
Digital vibration controller VCS-2
Hardware configuration 2 simultaneous input channels, 1 output channel
Control function module Sine, random, classical shock
Control computer 17’’ original brand computer with LCD monitor, Windows 10
Software Chinese/English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, etc. It can automatically generate WORD test reports. It can display, store the signals and data, and set test parameters and analyze functions.
System accelerator

Frequency range: 1—7000Hz

Sensitivity: 30PC/g

Temperature range: -40 - 180°C

VT50 vertical extension table
Material Magnesium alloy, surface hardened
Table size 500×500 mm
Fixed hole M10 rectangular distribution 100MM*100MM, durable and wear-resistant
Upper limit usage frequency Sine 1000 Hz, Random 2000 Hz
Weight About 23Kg

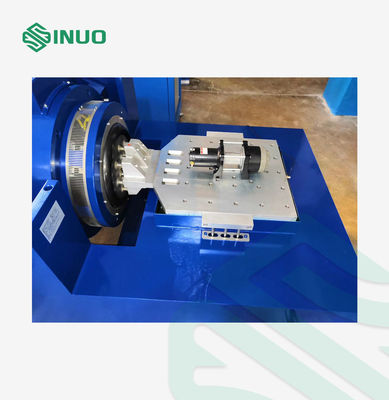

HG50 horizontal oil film slide table
Material Magnesium alloy, surface hardened
Table size 500×500 mm
Fixed hole M10 rectangular distribution 100MM*100MM, durable and wear-resistant
Upper limit usage frequency Sine 2000 Hz, Random 2000 Hz
Weight About 29Kg (without connection head)
B402S cooling fan
Fan power: 4KW
Fan flow rate: 40.8m3/Min
Electrical requirements
Power supply AC 3-phase 380V/50Hz 18 KW
Compressed air 0.6Mpa
Ground resistance ≤4Ω




Details

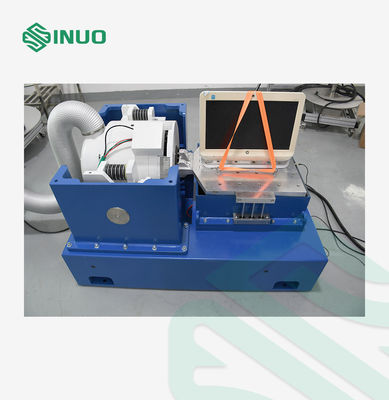

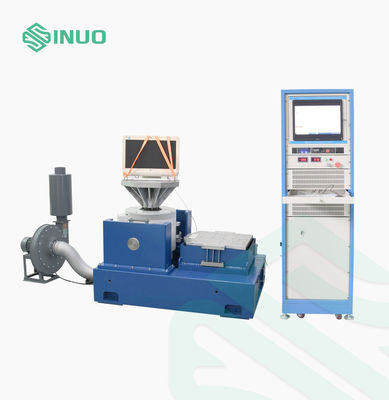

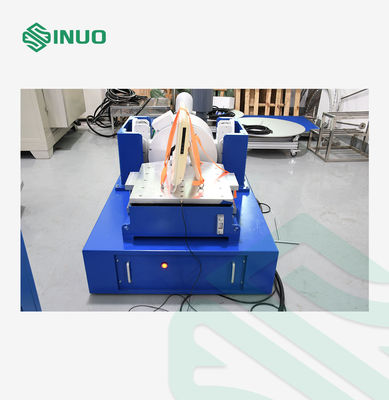

ISO EV Battery Pack Vibration Testing System Equipment 2800 Hz 0ISO EV Battery Pack Vibration Testing System Equipment 2800 Hz 1
