Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height

Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height

Brand Name:	Sinuo
Model Number:	SN5510
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Ambient Temperature:

5～40°C

Control System:

PLC Control

Test Station:

Single Station

Drive Mode:

Stepper Motor

Power Supply:

AC220V±10%/50Hz

Lifting Speed 0:

0～3mm/s, Can Be Preset

Drop Height:

30～1500mm, Can Be Preset

Operation Interface:

7-inch Color LCD Touch Screen

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Battery Drop Strength Test Drop Tester

Battery Drop Tester

Lithium Battery Drop Tester

Product Description

Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height

Complied Standards & Clauses

Conforms to UL 1642, etc.

Product Overview

Application: This test equipment is used to test the drop strength and safety requirements of batteries.

Structure and features:

1.This machine available for package face, corner, edge free drop testing.

2.With height digital display instrument and tracing height with encoder, so can measure the precision drop height.

3.The drop height tolerance within2% or 10mm;

4.Adopt pneumatic structure, fix the specimen with special fixture (range adjustable), push the drop button, pneumatic cylinder open, specimen free dropping. The drop height controllable, and with height steel ruler which makes drop height available. Various kinds drop floor optional. Meets different testing standards.

Technical Parameters

Item	Parameters
Power supply	AC220V±10%/50Hz
Test station	Single station
Operation interface	7-inch color LCD touch screen
Drive mode	Stepper motor
Control system	PLC Control
Drop height	30～1500mm, can be preset
Lifting speed	0～3mm/s, can be preset
Test environment	Ambient temperature 5～40°C; relative humidity (20～90)%RH. Use place: no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation

Details

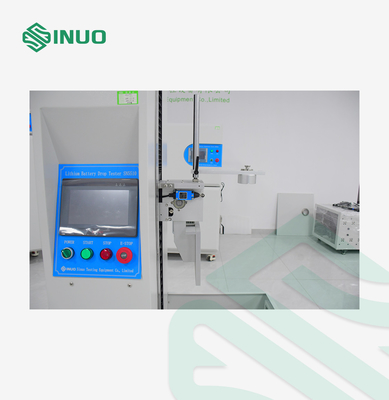

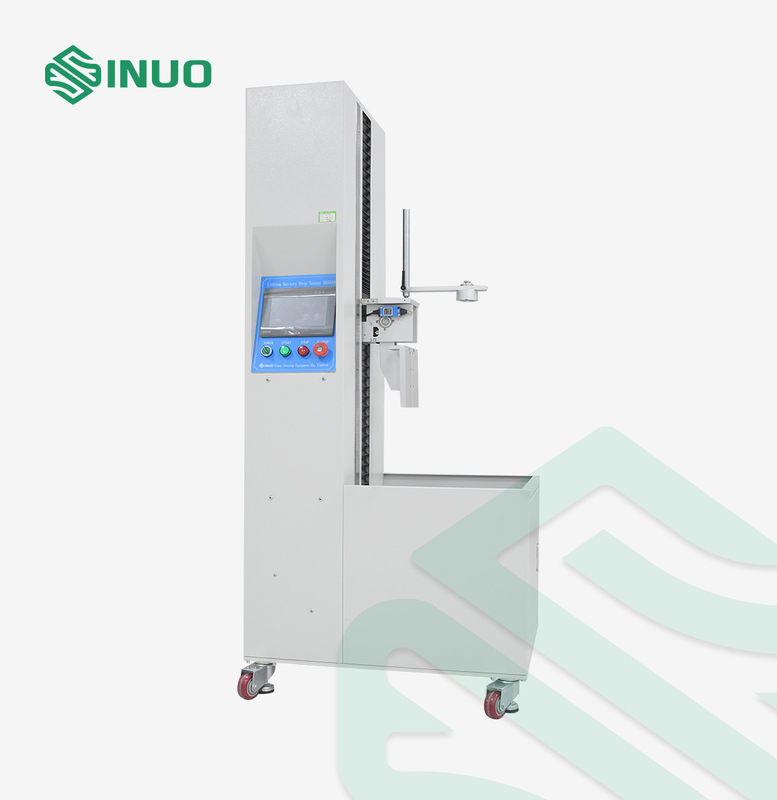

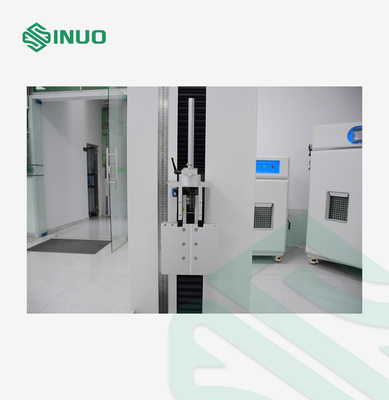

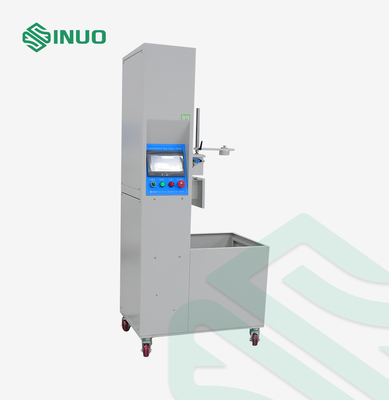

Lithium Battery Drop Tester For Battery Drop Strength Test Drop Height 0
