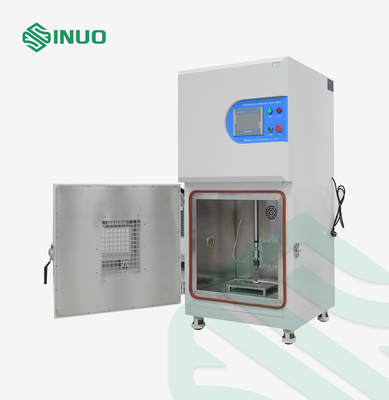

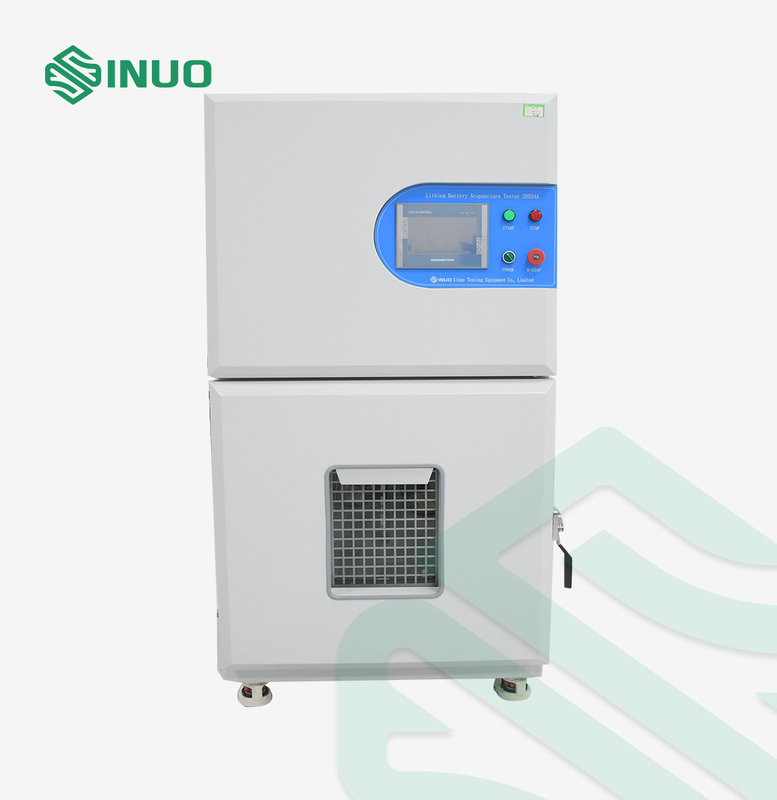

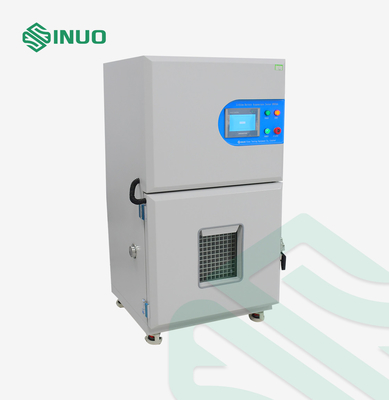

UL 1642 Lithium Battery Acupuncture Tester Battery PLC Control Testing Equipment

UL 1642 Lithium Battery Acupuncture Tester Battery PLC Control Testing Equipment

Brand Name:	Sinuo
Model Number:	SN554A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Force Range:

0～3000N

Drive Mode:

Servo Motor

Control Method:

PLC Control

Test Station:

Single Station

Power Supply:

AC220V±10%/50Hz

Test Stroke:

0～200mm, Can Be Preset

Residence Time:

0～9999.9s, Can Be Preset

Operation Interface:

7-inch Color LCD Touch Screen

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

UL 1642 Lithium Battery Acupuncture Tester

Battery PLC Control Testing Equipment

Lithium Battery Acupuncture Tester

Product Description

UL 1642 Lithium Battery Acupuncture Tester Battery PLC Control Testing Equipment

Complied Standards & Clauses

Conforms to UL 1642, etc.

Product Overview

The tester is used to simulate the conditions in which various types of batteries are exposed to needle puncture when used, transported, stored or disposed of household waste.

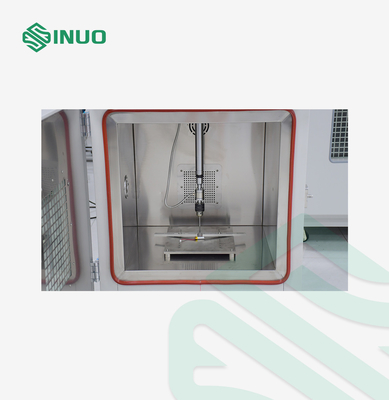

The test should be carried out at an ambient temperature of 20℃±5℃, and the battery connected to the thermocouple (the contact of the thermocouple is fixed on the large surface of the battery) is placed in a fume hood. Use a non-corrosive steel needle with a diameter of 2-8mm to pierce the center of the largest surface of the battery at a speed of 10mm/s to 40mm/s, hold it for any time and observe the test results. If the battery does not explode or catch fire, it is considered qualified.

Technical Parameters

tem	Parameters
Power supply	AC220V±10%/50Hz
Test station	Single station
Operation interface	7-inch color LCD touch screen
Drive mode	Servo Motor
Control method	PLC Control
Test force range	0～3000N
Residence time	0～9999.9s, can be preset
Test stroke	0～200mm, can be preset
Test speed	0～40mm/s, can be preset
Test environment	Atmospheric pressure 80～106kpa; ambient temperature 5～40°C; relative humidity (20～90)%RH. Use place: no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation
