IEC 60086-4 Lithium Battery Impact Height 0～1000mm Heavy Impact Tester

IEC 60086-4 Lithium Battery Impact Height 0～1000mm Heavy Impact Tester

Brand Name:	Sinuo
Model Number:	SN555
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Lifting Speed:

0～3mm/s

Control Method:

PLC Control

Test Station:

Single Station

Impact Height:

0～1000mm

Drive Mode:

Stepper Motor

Power Supply:

AC220V±10%/50Hz

Drop Weight:

9.1kg±0.1kg And 10kg

Operation Interface:

7-inch Color LCD Touch Screen

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

1000mm Lithium Battery Impact Tester

Heavy Impact Tester For Lithium Battery

Product Description

IEC 60086-4 Lithium Battery Impact Height 0～1000mm Heavy Impact Tester

Complied Standards & Clauses

Conforms to UL 1642, IEC 60086-4 etc.

Product Overview

Sample and restrictions: Battery.
Test purpose: Used to simulate the situation that various types of batteries are subjected to external impact during use, transportation and storage.

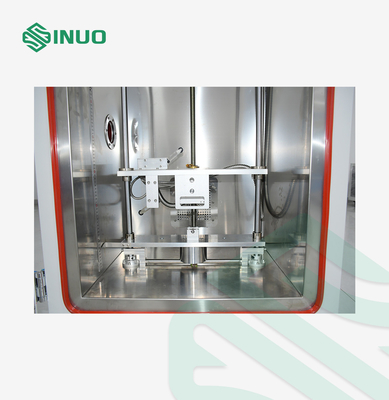

Test principle: The test sample battery is placed on a plane, and a rod with a diameter of 15.8±0.2mm (5/8 inch) is placed crosswise on the center of the sample. A 9.1kg or 10kg weight falls from a certain height (610mm or 1000mm) onto the sample. A 9.1kg or 10kg weight is dropped onto the sample from a certain height (610mm or 1000mm). When cylindrical or square batteries are subjected to impact tests, their longitudinal axis should be parallel to the plane and perpendicular to the longitudinal axis of the steel column. The longest axis of the square battery is perpendicular to the steel column, and the largest surface is perpendicular to the impact direction. Each battery only accepts one impact test.

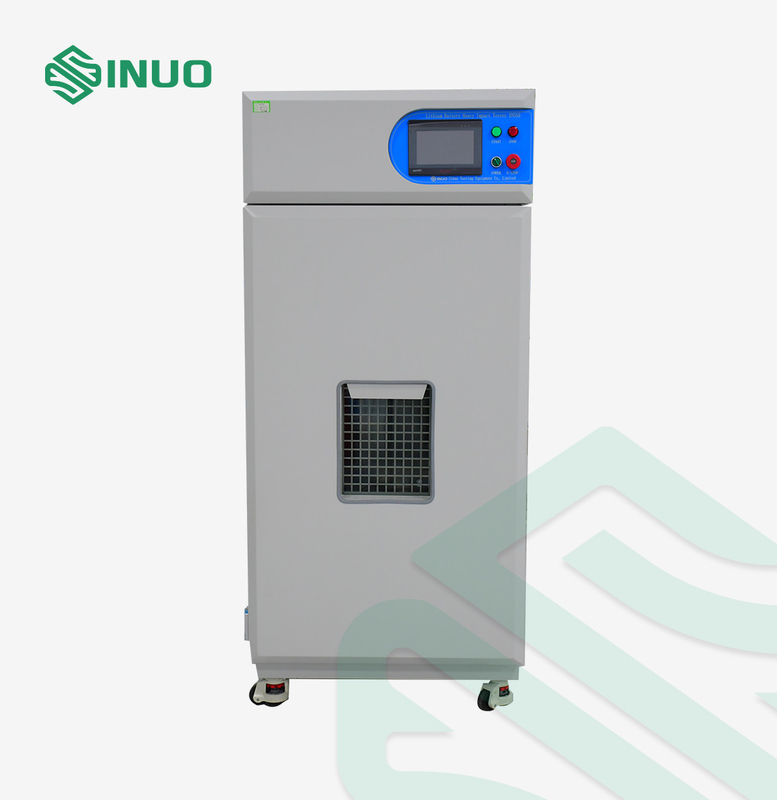

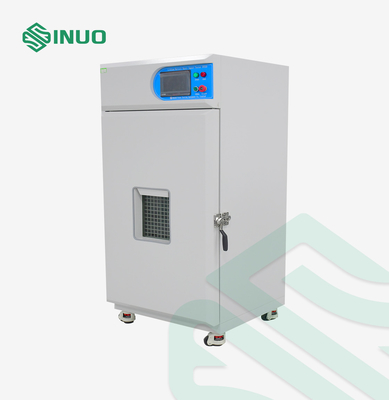

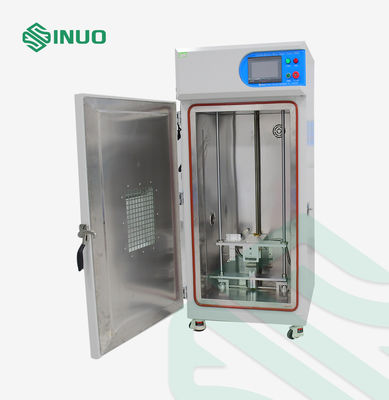

Equipment structure and features: One machine structure, the door uses explosion-proof lock and explosion-proof chain

Technical Parameters

Item	Parameters
Power supply	AC220V±10%/50Hz
Test station	Single station

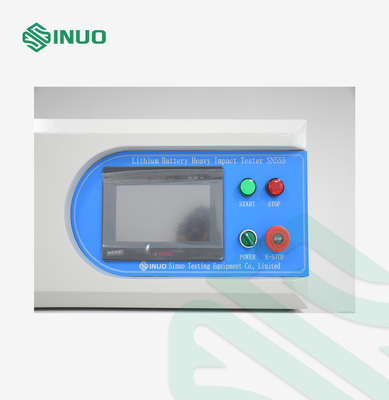

Operation interface	7-inch color LCD touch screen
Drive mode	Stepper motor
Control system	PLC Control
Impact height	0～1000mm, can be preset
Lifting speed	0～3mm/s, can be preset
Drop weight	9.1kg±0.1kg and 10kg (consisting of a 9.1kg dropped ball with a 900g weight)
Exhaust device	Located behind the cabinet and can be connected to the outdoors
Test environment	Ambient temperature 5～40°C; relative humidity (20～90)%RH. Use place: no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gas, good heat dissipation
