| Brand Name: | Sinuo |
| Model Number: | SN887-144L |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets Per Month |
IEC 68-2-2 Thermal Shock Test Chamber with Water Cooling Chiller 200℃
Complied Standards & Clauses
IEC 68-2-1 Basic environmental testing procedures for electric and electronic products Tests A: Cold
IEC 68-2-2 Basic environmental testing procedures for electric and electronic products Tests B: Dry heat
IEC 60068-2-14:2009, Environmental testing Part 2-14: Tests-Test N: Change of temperature, IDT
Product Overview

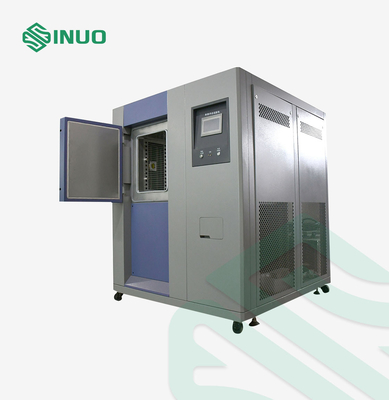

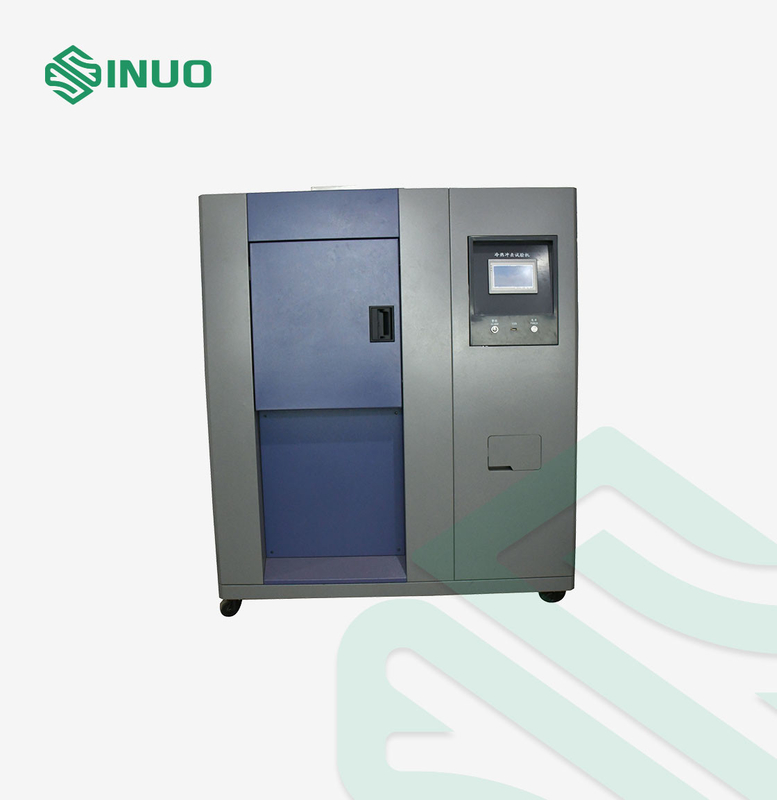

The thermal shock test chamber is a test machine that tests whether the rapid changes in high and low temperatures have adverse effects on the product by keeping the DUT stationary. It is an essential test equipment for the metal, plastic, rubber, electrical and electronic, automotive parts and other material industries.
Product Notes:
This test equipment prohibits:
Testing and storing biological samples;
Testing and storing samples of corrosive substances;
Testing and storing samples of strong electromagnetic radiation sources;
Testing and storing samples of flammable, explosive, and volatile substances.
Technical Parameters
| Inner box dimensions | 600×600×400mm (W*D*H) |
| Outer dimensions | About 1850×2100×1770 (W*D*H) subject to actual size |
| Temperature range | -60～200℃ |
| Temperature shock range | High temperature: (RT～+200)℃; Low temperature: (RT～-60)℃ |
| Shock recovery time | -60～+200℃ ≤5s |
| High and low temperature shock constant temperature time | More than 30min |
| High temperature zone preheating temperature | RT～+200℃≤60min |
| Low temperature zone preheating temperature | RT ～ - 60℃≤60min |
| Sample zone temperature fluctuation | ±0.5℃ (no load, constant state) |
| Temperature deviation | ±2℃ (no load, constant state) |
| Temperature accuracy | ±0.01℃ |

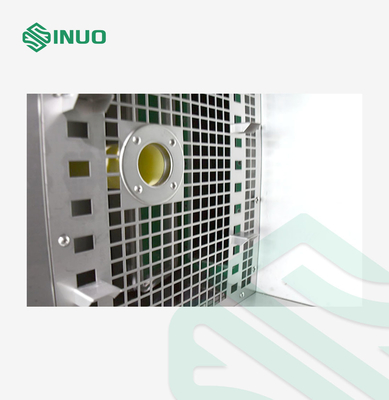

| Test hole | Open a 50mm diameter test hole on the left side of the box with a silicone plug |
| Sample rack | Stainless steel SUS304# 2 trays, load-bearing 20kg/piece |
| Product structure | |

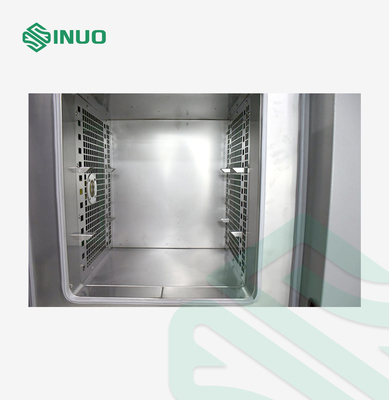

| Box structure | Equipped with independent product testing area, high temperature heat storage area, and low temperature cold storage area. |
| Inner box material | SUS304 stainless steel plate, thickness 1.0mm. |
| Outer box material | Cold rolled plate painted, thickness 1.35mm. |
| Insulation material | High temperature tank: 24k glass wool. |
| Heater | Low temperature tank: PU foam + glass wool. |
Automatic adjustment of energy consumption output control of the refrigeration system
Fully implement nitrogen protection welding, double-stage rotary vane pump vacuum, to ensure the internal cleanliness and reliability of the refrigeration system.
A water tray is designed at the bottom of the compressor, and the condensed water is discharged to the outside of the box through the drain pipe at the rear of the box.
