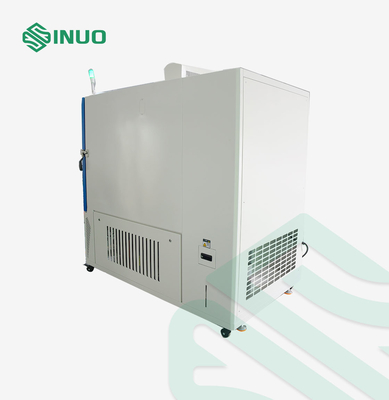

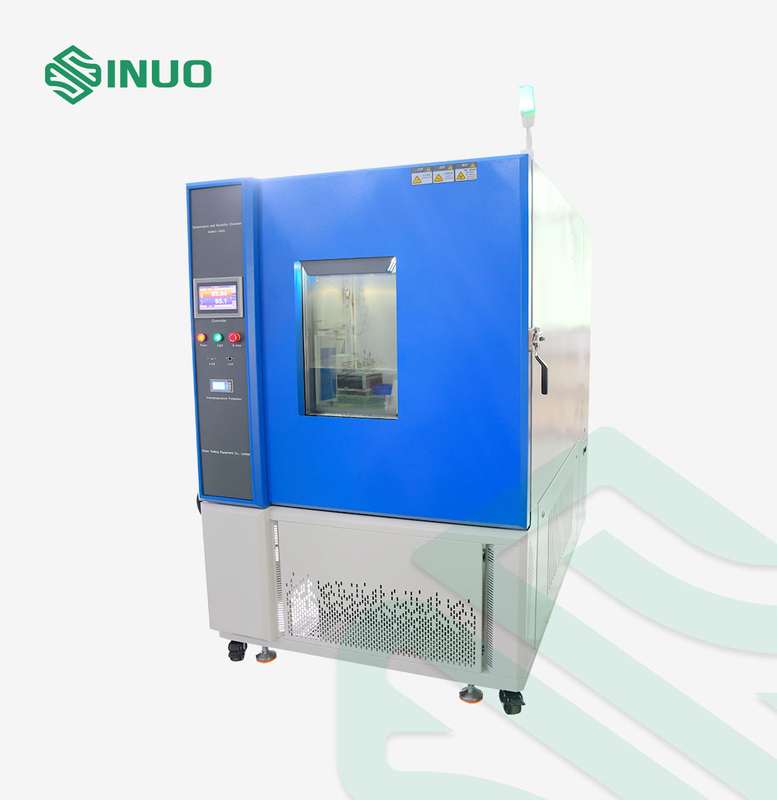

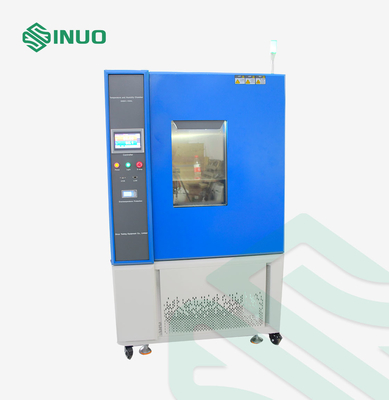

IEC60068-2-30 Cold Balanced Temperature And Humidity Environmental Test Chamber 150L

IEC60068-2-30 Cold Balanced Temperature And Humidity Environmental Test Chamber 150L

Brand Name:	Sinuo
Model Number:	SN881-150L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Fluctuation:

±0.5℃

Temperature Deviation:

≤±2.0℃

Humidity Deviation:

≤±3%

Heating Rate:

≧2-3°C/min

Cooling Rate:

≧1°C/min

Temperature Range:

-60 °C ~+150°C

Inner Size:

500*600*500 Mm

External Size:

780*1750*1275mm

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Cold Balanced Environmental Test Chamber

IEC60068-2-30 Environmental Test Chamber

150L Environmental Test Chamber

Product Description

IEC60068-2-30 Cold Balanced Temperature and Humidity Environmental Test Chamber

Complied Standards & Clauses

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”
Product Overview

This test chamber is used for cold, heat, humidity, and dryness testing of raw materials and devices such as electronics, electricians, electrical appliances, plastics, etc. The purpose is to confirm the product's reliability of storage and transportation under high and low temperatures alternating heat and humidity.

1. Anti-integral saturation PID
2. BTC balanced temperature control method + DCC intelligent cooling capacity control + DEC intelligent electrical control (temperature test equipment)
3. BTHC balanced temperature and humidity control method + DCC intelligent cooling capacity control + DEC intelligent electrical control (temperature and humidity test equipment)

Technical Parameters

Technical Parameters
Control & Operation	PLC and touch screen intelligent control system
Chamber Size	Inner Size	External Size
	500600500 mm	78017501275mm
Temperature Range	-60 °C ~+150°C
Temperature fluctuation	±0.5℃
Temperature deviation	≤±2.0℃
Humidity Deviation	≤±3%
Heating Rate	≧2-3°C/min
Cooling Rate	≧1°C/min, average no load
Load condition	None
Working noise	A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.)
Structural features

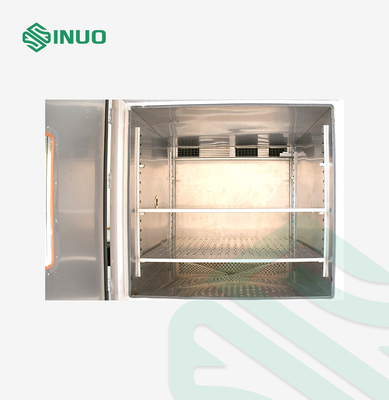

Insulation enclosure structure	1. Outer wall material: A3 board spraying. 2. Inner wall material: brushed stainless steel plate SUS﹟304. 3. Chamber thermal insulation material: 100mm high temperature resistant rigid polyurethane foam. 4. Chamber door insulation material: 100mm high temperature resistant rigid polyurethane foam.

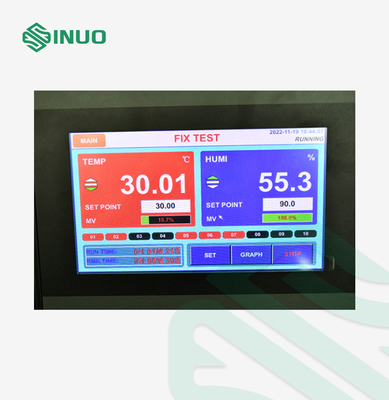

Screen introduction	1. Curves and temperature and humidity can be displayed on the same interface
	2. The screen display of temperature and humidity
	3． Curves can be recorded in real-time
