Electric Vehicle Insertion Force Test Device For Charging Gun

Electric Vehicle Insertion Force Test Device For Charging Gun

Brand Name:	Sinuo
Model Number:	SNQC1013A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Main Weight Of AC Charging Gun:

9.2kg

Main Weight Of DC Charging Gun:

13.2kg

Additional Weight:

0.8kg

Additional Weight Drop Height:

5cm

Control Method:

Manual

Lifting Method:

Manual

Test Station:

Single Station

Additional Weight Drop Method:

Manual

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Electric Vehicle Insertion Force Test Device

Accurate Insertion Force Test Device

Product Description

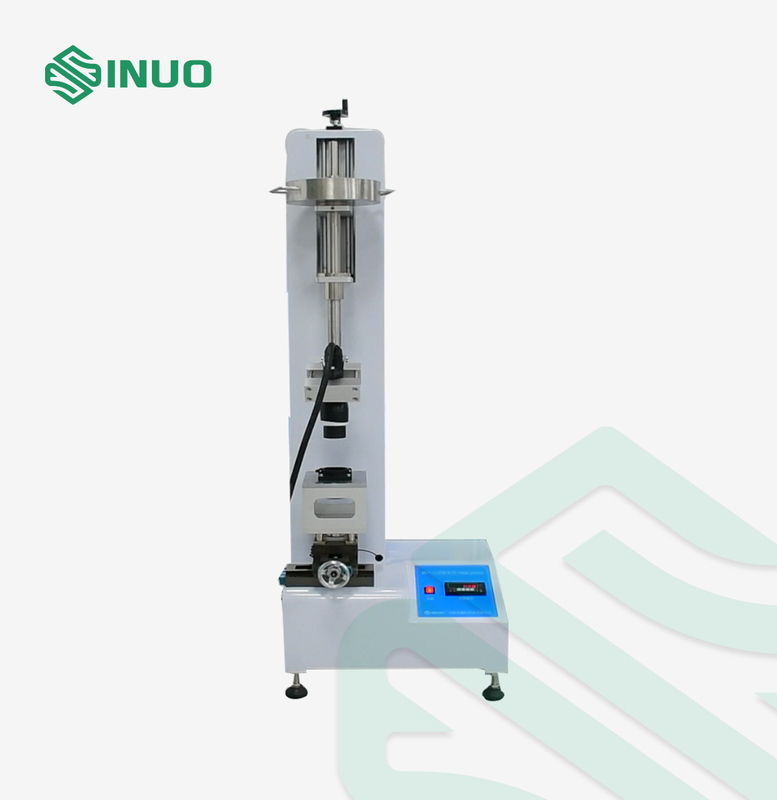

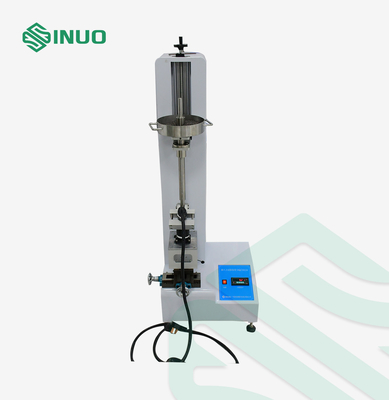

Electric Vehicle Insertion Force Test Device for Charging Gun

Complied Standards & Clauses

Conforms to IEC 62196-1 2022 clause 16.16.

Product Overview

The structure of the charging interface should make it easy to insert the charging gun. Check whether the maximum force required to insert the charging gun into the appliance socket is within the range specified by the standard.

The force for inserting the charging gun into the socket: Place the charging gun vertically downward, place the main weight required by the standard on the charging gun, and then use a 0.8kg weight to freely drop from a height of 5cm to impact the main weight. The charging gun should be inserted into the socket to the required position of the contact.

Technical Parameters

Model	SNQC1013A
Test station	Single station

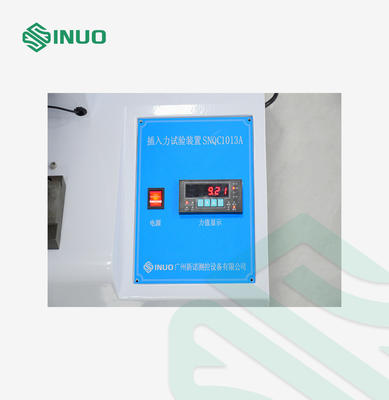

Control method	Manual, the instrument displays force value data in real time
Lifting method	Manual
Additional weight drop method	Manual
Force monitoring	Pull pressure value sensor and instrument display

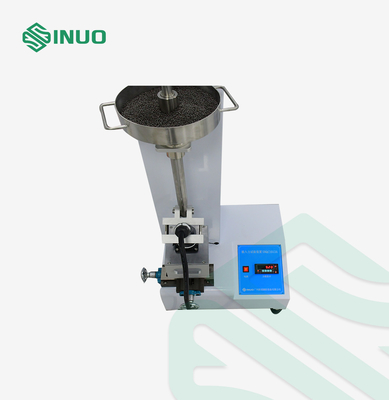

Weight configuration	Main weight of AC charging gun: 9.2kg Main weight of DC charging gun: 13.2kg Additional weight: 0.8kg Note: The weight of the main weight includes the weight of the clamp, guide rod, steel ball basin and charging gun sample. The weight of the main weight without the sample is about 4kg. An additional 10kg steel ball is equipped for fine-tuning the weight to make the entire main weight weight conform to AC or DC. Gun insertion force requirements.
Additional weight drop height	5cm
Insert initial positioning	Precision slide table and long linear guide bearing positioning
Charging gun’s clamp	Clamping handle, adjustable direction, so that the gun head is vertically downward
