IEC60068 Environmental Testing Temperature And Humidity Chamber 408L

IEC60068 Environmental Testing Temperature And Humidity Chamber 408L

Brand Name:	Sinuo
Model Number:	SN881-408L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Humidity Fluctuation:

≤2.5%

Temperature Fluctuation:

±0.5℃

Cooling Rate:

≧1°C/min

Heating Rate:

≧2-3°C/min

Humidity Range:

20%～98%RH

Temperature Range:

-40 °C ~+180°C

Inner Size:

800*600*850 Mm

External Size:

1350*1150*1950 Mm

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

408L Temperature Humidity Chamber

IEC60068 Temperature Humidity Chamber

IEC60068 Environmental Testing Chamber

Product Description

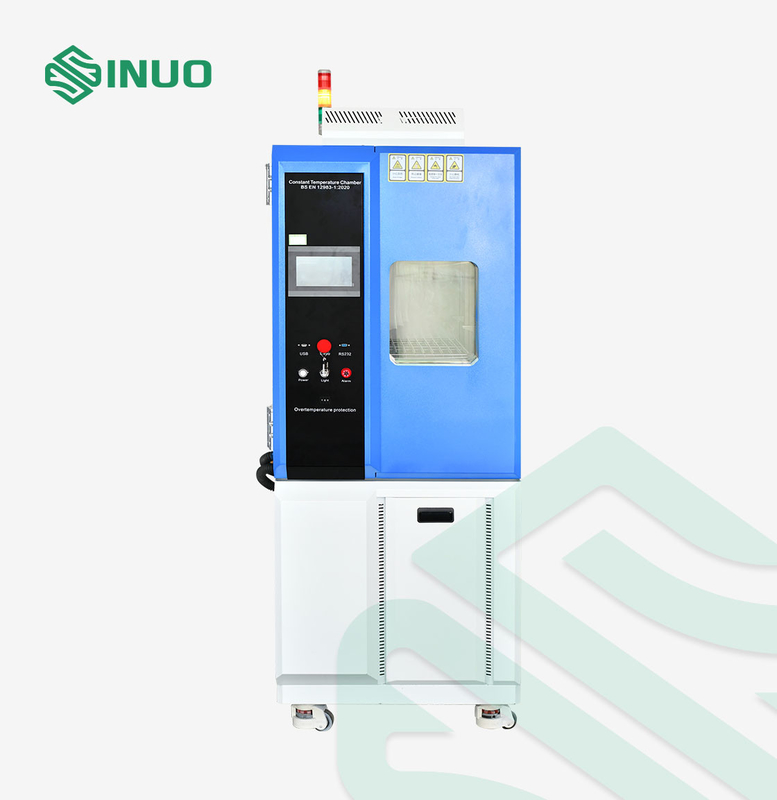

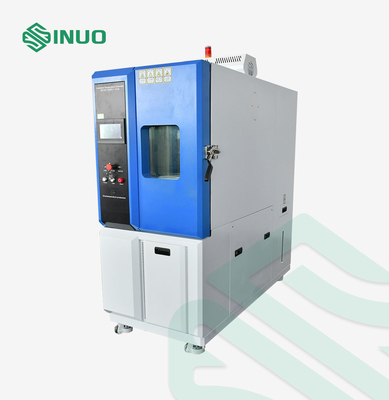

IEC60068 Environmental Testing Temperature and Humidity Chamber 408L

Complied Standards & Clauses

It conforms to standards:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Product Overview

This test chamber is used for cold, heat, humidity and dryness testing of raw materials and devices such as electronics, electricians, electrical appliances, plastics, etc. The purpose is to confirm the products reliability of storage and transportation under high and low temperature alternating heat and humidity.

Technical Parameters

Cooling system
Operation mode	Air-cooled mechanical compression single-stage refrigeration mode
Heating and cooling devices	1. Hitachi or Emerson low-temperature and low-noise scroll compressor (air-cooled heat dissipation method). 2. Cooling method: air cooling
Heat and cold exchange device	Single-stage refrigeration system, Emerson low-temperature and low-noise scroll compressor imported from the United States. Adopting ultra-high-efficiency SWEP cold coal heat and cold exchange design [made in Sweden (sus#316)], it is more efficient than the traditional internal spiral type.
Heating load adjustment	1. The automatic adjustment of the cold coal flow rate device is adopted to effectively take away the heating load of the product to be tested, which is synchronized with German/Japanese technology. 2. Compared with traditional designs, the control stability and reproducibility are higher, and it achieves ultra-high performance in terms of power saving and energy saving.
Refrigeration compressor	Hitachi or Emerson low temperature and low noise scroll compressor
High efficiency components	1. The condenser and evaporator adopt AC&R double spoiler type aluminum fin device. 2. The throttling devices adopt imported famous brand refrigeration accessories.
Expansion system	Capacity controlled refrigeration system
Evaporative condenser	All copper tube heat exchanger

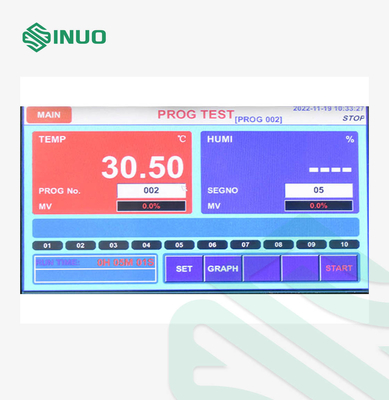

Refrigerator control method	1. The controller of the control system automatically adjusts the operating conditions of the refrigeration compressor according to the test conditions. The output cooling capacity can be controlled to achieve the principle of saving electricity and water. The working condition is more stable. Especially the operating humidity can save 30% of electricity. 2. Evaporation pressure regulating valve. 3. Compressor return air cooling circuit
Refrigerants	Honeywell R404a (ozone depletion index is 0)
