IEC60068 Walk-in Temperature And Humidity Test Chamber 4500L

IEC60068 Walk-in Temperature And Humidity Test Chamber 4500L

Brand Name:	Sinuo
Model Number:	SN881C-4500L
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Fluctuation:

±0.5℃

Humidity Deviation:

±3.0%R.H

Effective Volume:

4500L

Humidity Fluctuation:

2.5%RH

Temperature Range:

-40°～ 150℃

Humidity Range:

20%RH～98%RH

Inner Chamber Size:

2000 Mm*1500 Mm*1500mm(W*D*H)

Outer Chamber Size:

2450mm*2120 Mm*2380 Mm(W*D*H)

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Temperature and Humidity Test Chamber

4500L Walk In Environmental Test Chamber

Product Description

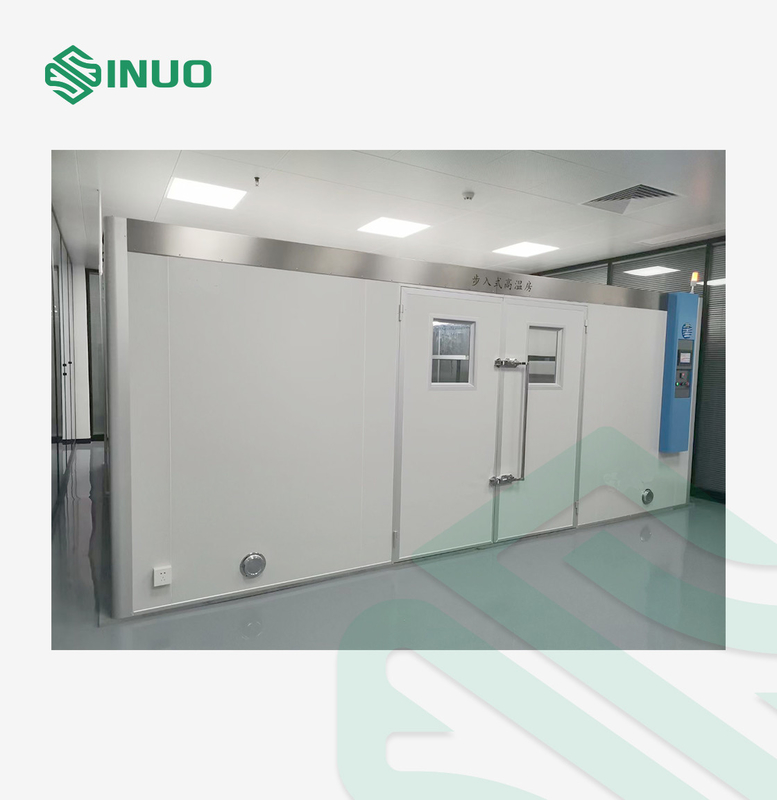

IEC60068 Walk-in Temperature and Humidity Test Chamber 4500L

Complied Standards & Clauses

It conforms to standards:

IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Product Overview

This test chamber simulates environments with varying temperature and humidity to evaluate the performance and durability of products or materials. It is widely used for adaptability testing of electrical and electronic components, instruments, and other product parts under both high and low temperature and humidity conditions, during storage, transportation, and usage. The test helps determine the temperature and humidity tolerance of these products, particularly in relation to electrical performance and mechanical properties.

Technical Parameters

No.	Project	Content
A	Product number	SN881C-4.5m³
B	Product brand	SINUO
C	Chamber inner size	W1500mm x D1500mm X H2000mm
	External chamber Dimensions	Cabinet part: about W 1980mm ×D 2420mm×H 2450mm
D	Temperature range	+20℃→+50℃
	Heating rate	≥2～3℃/min (average over the whole process, no load)
	Cooling rate	≥0.7～1℃/min (average over the whole process, no load)
	Temperature display resolution	0.1℃
	Temperature fluctuation	±0.5℃	Data measured under no-load conditions
	Temperature deviation	±2.0℃
	Humidity range	20%-98% RH
	Humidity fluctuation	±2.5%RH
	Humidity deviation	±3.0%R.H
	Temperature and humidity control capability range chart	(Refer to the temperature and humidity controllable range chart, no moisture source or heat load)
E	Motor noise	≤75dB (A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo; A-weighting was used to test the average value of 9 points; each test point was 2 meters horizontally from the noise source and 1 meter high from the ground.)
F	Power Supply	AC3￠5W 380V 50Hz (R, STN three-phase five-wire plus ground wire) (voltage fluctuation ≤±10%)
G	Power	Overall 8KW

Details

IEC60068 Walk-in Temperature And Humidity Test Chamber 4500L 1
