ISO 16750-3 Commercial Vehicle Engine Electromagnetic Vibration Testing System

ISO 16750-3 Commercial Vehicle Engine Electromagnetic Vibration Testing System

Brand Name:	Sinuo
Model Number:	SN553- EV222VT50VC-2
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Maximum Displacement:

51 Mm P-p

Maximum Speed:

2m/s

Vibration Isolation Frequency:

2.5 Hz

Maximum Load:

400 Kg

Moving Coil Weight:

22kg

Frequency Response Range:

2-5000Hz

Allowable Eccentric Moment:

500N.m

Moving Coil Diameter:

Ф340 Mm

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Commercial Vehicle Engine Vibration Testing System

Vehicle Engine Vibration Testing System

Product Description

ISO 16750-3 Commercial Vehicle Engine Electromagnetic Vibration Testing System

Complied Standards & Clauses

Conforms to ISO16750-3, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM, etc.

Product Overview

Vibration testing is the act of exciting or shocking a component or device to see how it would react in a real environment. The application range of vibration test is extremely wide, from industrial products such as circuit boards, aircraft, ships, rockets, missiles, automobiles and household appliances.

Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards, such as ISO16750-3, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Technical Parameters

A20S32 electromagnetic excitation generator parameters
Maximum sinusoidal excitation force	2200Kg.f peak
Maximum Random Exciting Force	2200Kg.f r.ms
Maximum impact excitation force	4400Kg.f peak
Frequency Range	1～3000 Hz
maximum displacement	51 mm p-p
Maximum speed	2m/s
maximum acceleration	100G (980 m/s2)
First order resonant frequency	3200 Hz±5%
Maximum load:	400 kg
Vibration isolation frequency:	2.5 Hz
Moving coil diameter:	Ф340 mm
Moving coil weight:	22kg
Screw on the table	17×M10
Flux leakage	＜10gauss
Allowable eccentric moment	500N.m
Equipment size	1080mmL×920mmW×1050mmH (not including vertical expansion table)
Equipment weight	1900 kg (Excluding horizontal slide table)
LA-24K digital switching power amplifier
Output power	22KVA
Output voltage	100V
Output current	220A
Amplifier efficiency	≥90%
Harmonic distortion	0.5% THD @ 500Hz
SNR	>75dB
Input signal range	±10 Vpeak
Output DC stability	<5mVdc
Amplifier size	W910mm×D610mm×1150mm
Amplifier Weight	470 KG
Servo protection system
Function	Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss

Details

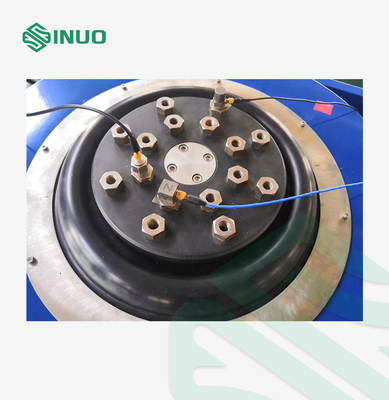

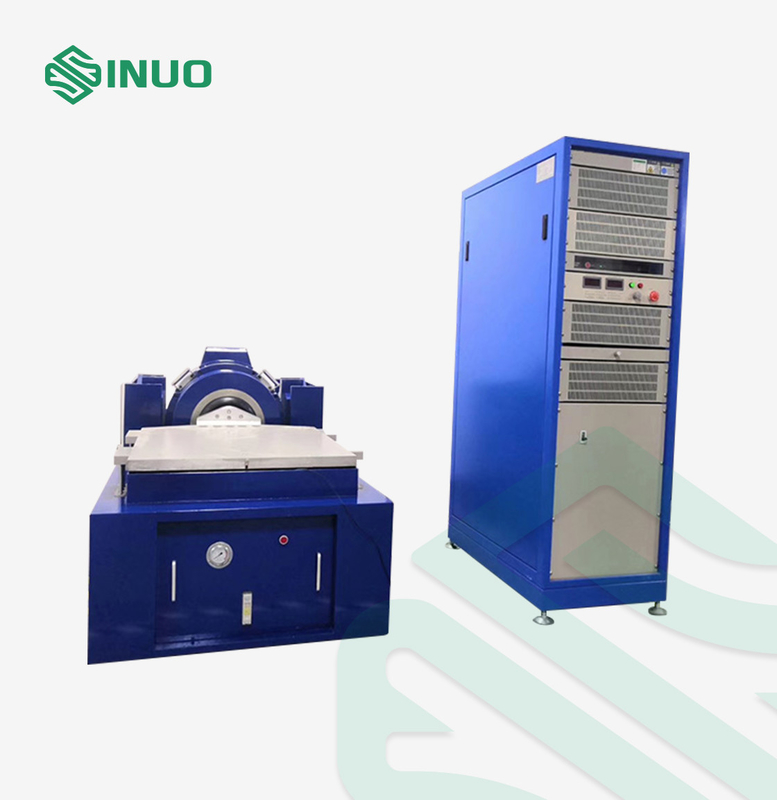

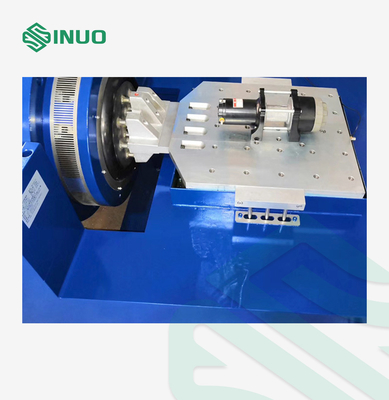

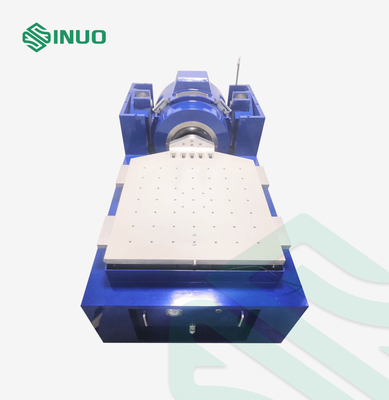

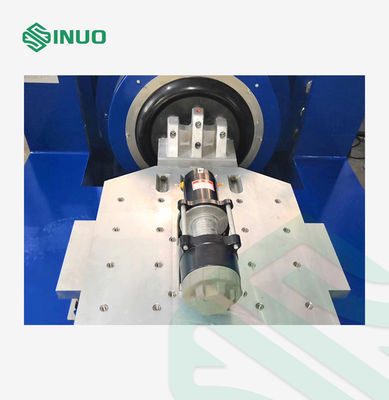

ISO 16750-3 Commercial Vehicle Engine Electromagnetic Vibration Testing System 0
