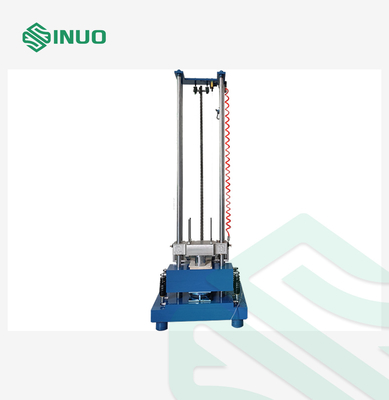

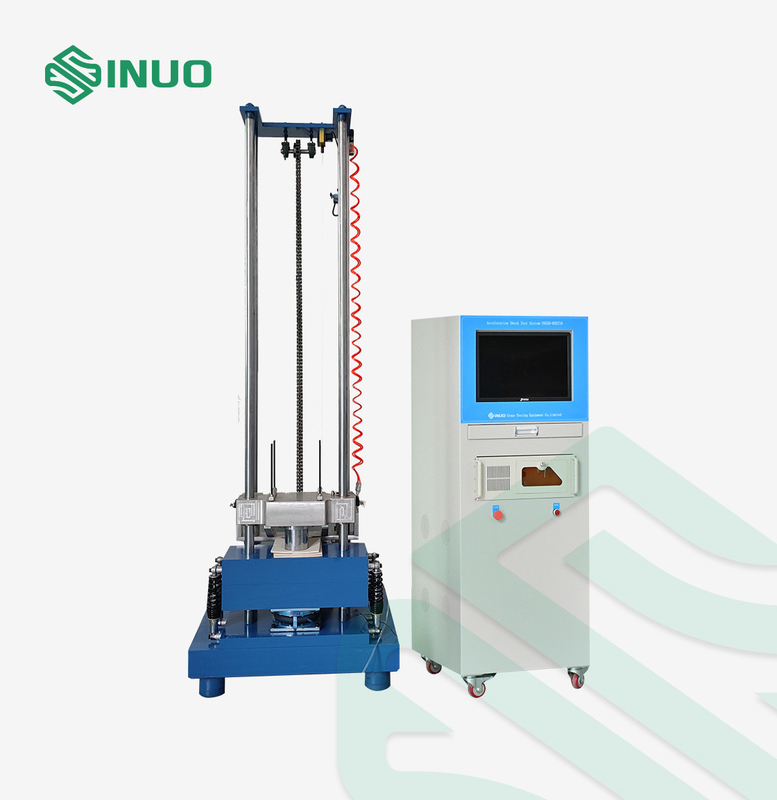

ISO 16750-3 Commercial Vehicle Engine Acceleration Shock Test System

ISO 16750-3 Commercial Vehicle Engine Acceleration Shock Test System

Brand Name:	Sinuo
Model Number:	SN558-HSKT50
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Maximum Load:

50KG

Total Equipment:

1750 Kg

Sampling Frequency:

192KHz

Maximum Acceleration:

5000G

Frequency Range:

0.5---12KHz

Compressed Air:

0.5-0.8Mpa

Work Platform:

500×600 Mm

Device Size:

1230×1120×2330mm

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Vehicle Engine Acceleration Shock Test System

Commercial Engine Acceleration Shock Test System

Product Description

ISO 16750-3 Commercial Vehicle Engine Acceleration Shock Test System

Complied Standards & Clauses

Conforms to MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, ISO 16750-3, etc.

Product Overview

Mechanical shock testing machine is mainly suitable for shock resistance tests in the fields of electronic products, aerospace, shipbuilding, military industry, automotive parts, transportation, etc. By selecting different waveform generators, half-sine wave, post-peak sawtooth wave or square wave shock tests can be performed.

The equipment meets the test specifications of MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, ISO 16750-3, etc.

Technical Parameters

Impact machine main parameters
Work Platform	500×600 mm
Maximum load	50KG
Peak acceleration	Half sine wave 10--- 600G
Pulse duration	Half sine: 2-30 ms
Acceleration tolerance	≤10%
Speed change	≤10%
Horizontal ratio of table	≤10%
Device size	1230×1120×2330mm
Total equipment	About 1750 kg

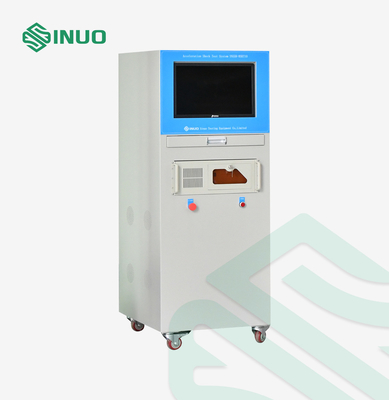

Measurement system
Input Channels	2 channels
Sampling frequency	192KHz
Pulse duration	0.5—100ms
Maximum acceleration	5000G
Communication interface	USB2.0
Supported standards	ISO,MIL-STD-810, or user defined
Operating system	Microsoft Win7/10
System Accelerometer
Model	C02A01
Output method	Charge Type
Sensitivity	3.93pC/g
Frequency range	0.5---12KHz
Acceleration range	±2500G
Work Environment	-40~+160℃
Other notes
Power supply	AC3 phase 380V±10％5KVA
Compressed air	0.5-0.8Mpa
Temperature	RT～40℃
Humidity	25℃＜85RH％
Reliability	Average failure-free rate ≥ 5000 hours; The half-sine waveform generator is used continuously for no less than 8000 times; The storage time in a clean, normal temperature environment is no less than 5 years
Applicable standards	IEC68-2-27, MIL—STD202F,MIL-STD810B, ISO 16750-3, etc.
